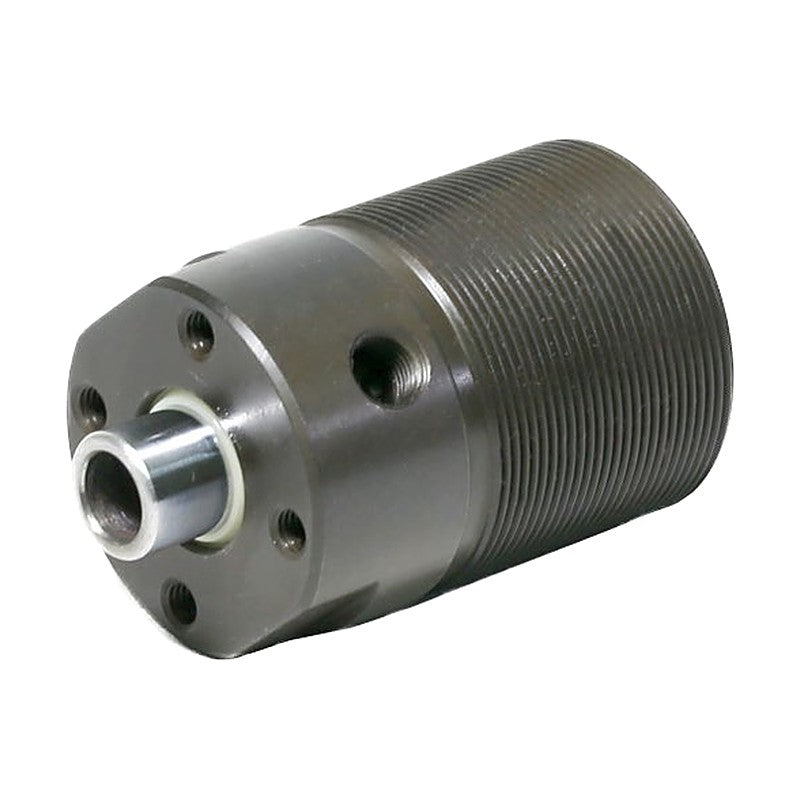

KJF HLP Hollow Clamp, Hydraulic

KJF HLP Hollow Clamp, Hydraulic

Hydraulic pull-type hollow cylinder with a through-hole in the rod so a bolt can pass through; female thread at the rod end; can push or pull depending on mounting.

Key features

  • Pull type with hollow rod for through-bolts
  • Female thread at the rod end
  • Can be used for pushing or pulling depending on mounting position
  • Make piping size as large as possible

Specifications

Fluid Hydraulic oil
Operating pressure 15-250 kgf/cm²
Operating temperature 0-60 °C
Piston speed 8-100 mm/s
HLP-2808 Piston diameter: Ø28 mm | Stroke: 8 mm | Max clamping force: 1,000 kgf | Effective area: 4.14 cm² | Oil capacity: 3.31 cm³ | Body thread: M48 x 1.5 | Port: 1/8 | Weight: 0.85 kg
HLP-4012 Piston diameter: Ø40 mm | Stroke: 12 mm | Max clamping force: 1,900 kgf | Effective area: 7.65 cm² | Oil capacity: 9.18 cm³ | Body thread: M65 x 1.5 | Port: 1/4 | Weight: 1.91 kg
HLP-6320 Piston diameter: Ø63 mm | Stroke: 20 mm | Max clamping force: 5,300 kgf | Effective area: 21.54 cm² | Oil capacity: 43.08 cm³ | Body thread: M88 x 2.0 | Port: 3/8 | Weight: 4.28 kg
Hollow CylindersKJF
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KJF HLP Hollow Clamp, Hydraulic

Brand KJF·Hollow Cylinders

Available part numbers (3)

HLP-2808, HLP-4012, HLP-6320

How to order

Send the KJF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HLP-2808Piston diameter: Ø28 mm | Stroke: 8 mm | Max clamping force: 1,000 kgf | Effective area: 4.14 cm² | Oil capacity: 3.31 cm³ | Body thread: M48 x 1.5 | Port: 1/8 | Weight: 0.85 kg
HLP-4012Piston diameter: Ø40 mm | Stroke: 12 mm | Max clamping force: 1,900 kgf | Effective area: 7.65 cm² | Oil capacity: 9.18 cm³ | Body thread: M65 x 1.5 | Port: 1/4 | Weight: 1.91 kg
HLP-6320Piston diameter: Ø63 mm | Stroke: 20 mm | Max clamping force: 5,300 kgf | Effective area: 21.54 cm² | Oil capacity: 43.08 cm³ | Body thread: M88 x 2.0 | Port: 3/8 | Weight: 4.28 kg
