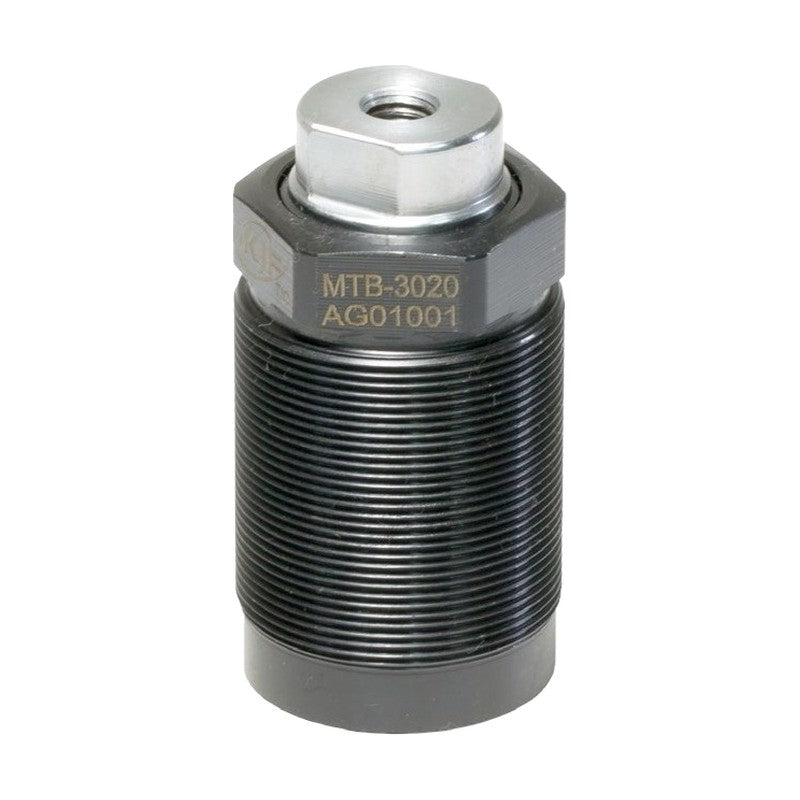

KJF MTB Built-In Clamp, Hydraulic (Single-Acting)

KJF MTB Built-In Clamp, Hydraulic (Single-Acting)

Miniature single-acting, spring-return hydraulic cylinder with a threaded body that screws into the fixture, for locating or clamping where installation space is very limited.

Key features

  • Thick piston rod relative to bore for stable use
  • Short overall length relative to stroke; fits in tight spaces
  • Cylinders can be installed close together; spring return
  • Manifold mounting reduces piping
  • Standard rod or round rod (R) versions; make piping size as large as possible
  • Excessive force during assembly will cause defects

Specifications

Fluid Hydraulic oil
Operating pressure 15-250 kgf/cm²
Operating temperature 0-60 °C
KJF MTB Built-In Clamp, Hydraulic (Single-Acting)
MTB-0805 Rod: Round rod | Piston diameter: Ø8 mm | Stroke: 5 mm | Max clamping force: 126 kgf | Oil capacity: 0.25 cm³ | Effective area: 0.50 cm² | Tightening torque: 120 kgf·cm | Weight: 0.02 kg
MTB-0810 Rod: Round rod | Piston diameter: Ø8 mm | Stroke: 10 mm | Max clamping force: 126 kgf | Oil capacity: 0.50 cm³ | Effective area: 0.50 cm² | Tightening torque: 120 kgf·cm | Weight: 0.03 kg
MTB-1105R Rod: Round rod | Piston diameter: Ø11 mm | Stroke: 5 mm | Max clamping force: 240 kgf | Oil capacity: 0.47 cm³ | Effective area: 0.95 cm² | Body thread: M16 x 1.5 | Tightening torque: 160 kgf·cm | Weight: 0.03 kg
MTB-1210 Rod: Standard rod | Piston diameter: Ø12 mm | Stroke: 10 mm | Max clamping force: 280 kgf | Oil capacity: 1.13 cm³ | Effective area: 1.13 cm² | Body thread: M22 x 1.5 | Tightening torque: 400 kgf·cm | Weight: 0.11 kg
MTB-1210R Rod: Round rod | Piston diameter: Ø12 mm | Stroke: 10 mm | Max clamping force: 280 kgf | Oil capacity: 1.13 cm³ | Effective area: 1.13 cm² | Body thread: M22 x 1.5 | Tightening torque: 400 kgf·cm | Weight: 0.11 kg
MTB-1412 Rod: Standard rod | Piston diameter: Ø14 mm | Stroke: 12 mm | Max clamping force: 380 kgf | Oil capacity: 1.85 cm³ | Effective area: 1.54 cm² | Body thread: M24 x 1.5 | Tightening torque: 630 kgf·cm | Weight: 0.13 kg
MTB-1412R Rod: Round rod | Piston diameter: Ø14 mm | Stroke: 12 mm | Max clamping force: 380 kgf | Oil capacity: 1.85 cm³ | Effective area: 1.54 cm² | Body thread: M24 x 1.5 | Tightening torque: 630 kgf·cm | Weight: 0.13 kg
MTB-1814 Rod: Standard rod | Piston diameter: Ø18 mm | Stroke: 14 mm | Max clamping force: 640 kgf | Oil capacity: 3.56 cm³ | Effective area: 2.54 cm² | Body thread: M30 x 1.5 | Tightening torque: 1,000 kgf·cm | Weight: 0.22 kg
MTB-1814R Rod: Round rod | Piston diameter: Ø18 mm | Stroke: 14 mm | Max clamping force: 640 kgf | Oil capacity: 3.56 cm³ | Effective area: 2.54 cm² | Body thread: M30 x 1.5 | Tightening torque: 1,000 kgf·cm | Weight: 0.21 kg
MTB-2215 Rod: Standard rod | Piston diameter: Ø22 mm | Stroke: 15 mm | Max clamping force: 950 kgf | Oil capacity: 5.70 cm³ | Effective area: 3.80 cm² | Body thread: M36 x 1.5 | Tightening torque: 2,500 kgf·cm | Weight: 0.38 kg
MTB-2215R Rod: Round rod | Piston diameter: Ø22 mm | Stroke: 15 mm | Max clamping force: 950 kgf | Oil capacity: 5.70 cm³ | Effective area: 3.80 cm² | Body thread: M36 x 1.5 | Tightening torque: 2,500 kgf·cm | Weight: 0.36 kg
MTB-3020 Rod: Standard rod | Piston diameter: Ø30 mm | Stroke: 20 mm | Max clamping force: 1,770 kgf | Oil capacity: 14.13 cm³ | Effective area: 7.07 cm² | Body thread: M45 x 1.5 | Tightening torque: 4,000 kgf·cm | Weight: 0.78 kg
MTB-3020R Rod: Round rod | Piston diameter: Ø30 mm | Stroke: 20 mm | Max clamping force: 1,770 kgf | Oil capacity: 14.13 cm³ | Effective area: 7.07 cm² | Body thread: M45 x 1.5 | Tightening torque: 4,000 kgf·cm | Weight: 0.76 kg
MTB-3625 Rod: Standard rod | Piston diameter: Ø36 mm | Stroke: 25 mm | Max clamping force: 2,540 kgf | Oil capacity: 25.43 cm³ | Effective area: 10.17 cm² | Body thread: M55 x 2.0 | Tightening torque: 6,300 kgf·cm | Weight: 1.27 kg
MTB-3625R Rod: Round rod | Piston diameter: Ø36 mm | Stroke: 25 mm | Max clamping force: 2,540 kgf | Oil capacity: 25.43 cm³ | Effective area: 10.17 cm² | Body thread: M55 x 2.0 | Tightening torque: 6,300 kgf·cm | Weight: 1.22 kg
MTB-4525 Rod: Standard rod | Piston diameter: Ø45 mm | Stroke: 25 mm | Max clamping force: 3,970 kgf | Oil capacity: 39.74 cm³ | Effective area: 15.90 cm² | Body thread: M65 x 2.0 | Tightening torque: 10,000 kgf·cm | Weight: 1.87 kg
MTB-4525R Rod: Round rod | Piston diameter: Ø45 mm | Stroke: 25 mm | Max clamping force: 3,970 kgf | Oil capacity: 39.74 cm³ | Effective area: 15.90 cm² | Body thread: M65 x 2.0 | Tightening torque: 10,000 kgf·cm | Weight: 1.78 kg
