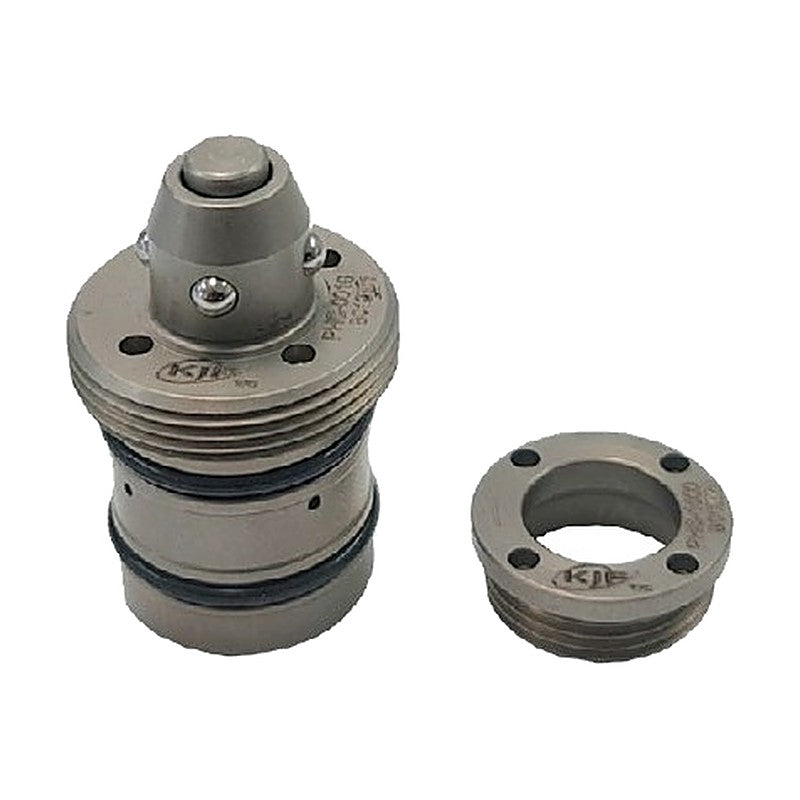

KJF PHS Pin Hole Clamp Sleeves and Assembly Tool

KJF PHS Pin Hole Clamp Sleeves and Assembly Tool

Mounting sleeves and an assembly tool for the PHC pin hole clamp: a zero-point clamping sleeve and a counterbalance clamping sleeve fitted in the workpiece or plate.

Key features

  • PHS-0016 zero-point sleeve must protrude beyond the installation surface; the PHC-0010 clamp sits at or above the installation surface
  • With four pin hole clamps, use two PHS-0016 and two PHS-2400 sleeves
PHS-0016 Function: Zero-point clamping sleeve | Diameter: Ø18 mm | Mounting: M16 x 1.0 tap
PHS-2400 Function: Counterbalance clamping sleeve | Thread: M24 x 1.0 | Height: 5.45 mm
ATL-0010 Function: Assembly tool for pin hole clamp | Outer diameter: Ø24 mm | Height: 21 mm
Pin Hole Clamp AccessoriesKJF
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KJF PHS Pin Hole Clamp Sleeves and Assembly Tool

Brand KJF·Pin Hole Clamp Accessories

Available part numbers (3)

PHS-0016, PHS-2400, ATL-0010

How to order

Send the KJF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PHS-0016Function: Zero-point clamping sleeve | Diameter: Ø18 mm | Mounting: M16 x 1.0 tap
PHS-2400Function: Counterbalance clamping sleeve | Thread: M24 x 1.0 | Height: 5.45 mm
ATL-0010Function: Assembly tool for pin hole clamp | Outer diameter: Ø24 mm | Height: 21 mm
