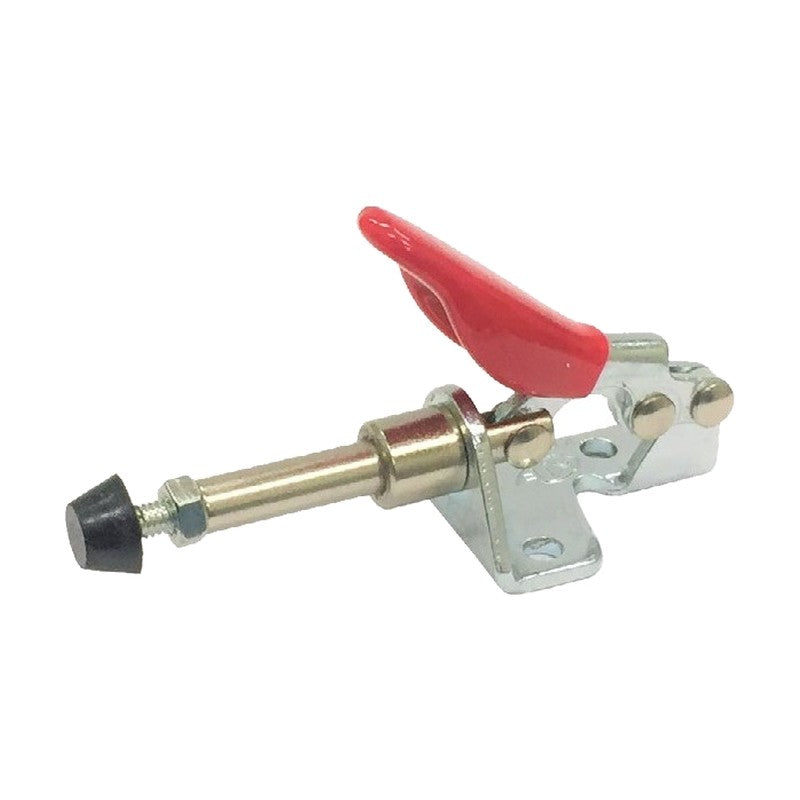

KJF Push/Pull Type Toggle Clamps (KJF-xxx-3 Series)
KJF Push/Pull Type Toggle Clamps (KJF-xxx-3 Series)
Manual straight-line toggle clamps whose plunger pushes or pulls the workpiece and locks over center, for clamping, ejecting and positioning in jigs and fixtures.
Key features
- Plunger moves in a straight line for push or pull clamping
- Flange or threaded base; horizontal handle or side handle (KJF-005-31FL)
- Holding capacity from 50 kgf to 1,200 kgf
- The bolt-type spindle can be replaced with a rubber-pad type
Specifications
| Handle | PVC (heat resistant to approx. 70 °C) |
|---|---|
| Spindle pad | NBR (heat resistant to approx. 100 °C) |
| Body finish | Galvanized (zinc plated) steel; stainless steel versions available |
| Model number structure | KJF-[holding capacity]-[3 = push/pull][rod stroke 1 = short, 2 = long][base type][material] |
| KJF-005-31F | Holding capacity: 50 kgf | Base: Flange | Plunger stroke: 16 mm | Handle travel: 177° | Spindle supplied: M4 x 30.0L | Weight: 43 g | Material: Steel, zinc plated | |
| KJF-005-31FL | Holding capacity: 50 kgf | Base: Flange | Plunger stroke: 16 mm | Handle travel: 180° | Spindle supplied: M4 x 17.0L | Weight: 52 g | Material: Steel, zinc plated | |
| KJF-005-31FR | Holding capacity: 50 kgf | Base: Flange | Plunger stroke: 16 mm | Handle travel: 180° | Spindle supplied: M4 x 17.0L | Weight: 52 g | Material: Steel, zinc plated | |
| KJF-008-31F | Holding capacity: 80 kgf | Base: Threaded | Plunger stroke: 20 mm | Handle travel: 180° | Spindle supplied: M6 x 30.0L | Weight: 118 g | Material: Steel, zinc plated | |
| KJF-010-31F | Holding capacity: 100 kgf | Base: Flange | Plunger stroke: 13 mm | Handle travel: 87° | Spindle supplied: M5 x 40.0L | Weight: 106 g | Material: Steel, zinc plated | |
| KJF-014-31F | Holding capacity: 140 kgf | Base: Flange | Plunger stroke: 32 mm | Handle travel: 174° | Spindle supplied: M8 x 65.0L | Weight: 305 g | Material: Steel, zinc plated | |
| KJF-014-31FF | Holding capacity: 140 kgf | Base: Flange | Plunger stroke: 28 mm | Handle travel: 178° | Spindle supplied: M8 x 65.0L | Weight: 306 g | Material: Steel, zinc plated | |
| KJF-014-31FSR | Holding capacity: 140 kgf | Base: Flange | Plunger stroke: 32 mm | Handle travel: 174° | Spindle supplied: M8 x 49.0L | Weight: 303 g | Material: Stainless steel | |
| KJF-015-31F | Holding capacity: 150 kgf | Base: Threaded | Plunger stroke: 38 mm | Handle travel: 180° | Spindle supplied: M8 x 65.0L | Weight: 299 g | Material: Steel, zinc plated | |
| KJF-015-31FS | Holding capacity: 150 kgf | Base: Threaded | Plunger stroke: 40 mm | Handle travel: 186° | Spindle supplied: M8 x 50L | Weight: 281 g | Material: Stainless steel | |
| KJF-016-31F | Holding capacity: 160 kgf | Base: Flange | Plunger stroke: 12 mm | Handle travel: 49° | Spindle supplied: N/A | Weight: 442 g | Material: Steel, zinc plated | |
| KJF-023-31FD | Holding capacity: 230 kgf | Base: Flange | Plunger stroke: 32 mm | Handle travel: 180° | Spindle supplied: M8 x 65.0L | Weight: 351 g | Material: Steel, zinc plated | |
| KJF-023-31FS | Holding capacity: 230 kgf | Base: Flange | Plunger stroke: 32 mm | Handle travel: 180° | Spindle supplied: M8 x 65.0L | Weight: 360 g | Material: Steel, zinc plated | |
| KJF-030-31F | Holding capacity: 300 kgf | Base: Threaded | Plunger stroke: 67 mm | Handle travel: 180° | Spindle supplied: M10 x 49.0L | Weight: 830 g | Material: Steel, zinc plated | |
| KJF-040-31FD | Holding capacity: 400 kgf | Base: Flange | Plunger stroke: 42 mm | Handle travel: 180° | Spindle supplied: M10 x 75.0L | Weight: 641 g | Material: Steel, zinc plated | |
| KJF-040-31FS | Holding capacity: 400 kgf | Base: Flange | Plunger stroke: 42 mm | Handle travel: 180° | Spindle supplied: M10 x 75.0L | Weight: 649 g | Material: Steel, zinc plated | |
| KJF-040-31FSR | Holding capacity: 400 kgf | Base: Flange | Plunger stroke: 42 mm | Handle travel: 180° | Spindle supplied: M10 x 50.0L | Weight: 600 g | Material: Stainless steel | |
| KJF-045-31F | Holding capacity: 450 kgf | Base: Flange | Plunger stroke: 50 mm | Handle travel: 186° | Spindle supplied: N/A | Weight: 925 g | Material: Steel, zinc plated | |
| KJF-070-31FD | Holding capacity: 700 kgf | Base: Flange | Plunger stroke: 60 mm | Handle travel: 180° | Spindle supplied: M12 x 80.0L | Weight: 1420 g | Material: Steel, zinc plated | |
| KJF-070-31FS | Holding capacity: 700 kgf | Base: Flange | Plunger stroke: 60 mm | Handle travel: 180° | Spindle supplied: M12 x 80.0L | Weight: 1430 g | Material: Steel, zinc plated | |
| KJF-120-31F | Holding capacity: 1200 kgf | Base: Flange | Plunger stroke: 51 mm | Handle travel: 185° | Spindle supplied: M10 x 75.0L | Weight: 926 g | Material: Steel, zinc plated | |
| KJF-120-32F | Holding capacity: 1200 kgf | Base: Flange | Plunger stroke: 80 mm | Handle travel: 184° | Spindle supplied: M10 x 75.0L | Weight: 1130 g | Material: Steel, zinc plated |
