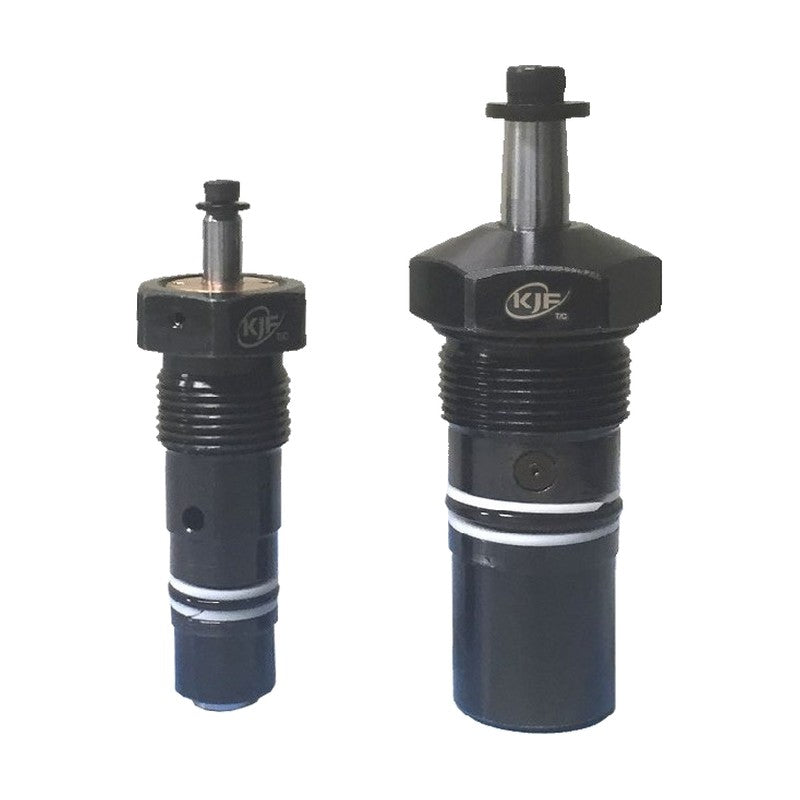

KJF RSDR/RSDL Swing Clamp, Hydraulic, Cartridge Type

KJF RSDR/RSDL Swing Clamp, Hydraulic, Cartridge Type

Subminiature high-pressure hydraulic swing clamp in cartridge form, inserted into the fixture body with machined oil passages; the arm swings then clamps straight down.

Key features

  • Subminiature size (piston Ø10-14 mm)
  • Cartridge mounting allows easy oil path design
  • Sturdy swing mechanism
  • Lever is an option item; fasten the lever bolts with the arm held fixed

Specifications

Fluid Hydraulic oil
Swing angle 90° standard (other angles, e.g. 30 = 30°, as customized design)
Operating pressure 15-150 kgf/cm²
Operating temperature 0-60 °C
Swing angle tolerance ±2° (repeatability ±0.5°)
RSDR-1018C Swing direction: clockwise | Piston diameter: Ø10 mm | Cylinder force: 35 kgf at 70 kgf/cm² | Effective area: 0.5 cm² | Stroke: total 18 mm (swing 10, straight 8) | Oil capacity: 0.9 cm³ | Weight: 0.12 kg
RSDR-1416C Swing direction: clockwise | Piston diameter: Ø14 mm | Cylinder force: 53 kgf at 70 kgf/cm² | Effective area: 0.75 cm² | Stroke: total 16 mm (swing 8, straight 8) | Oil capacity: 1.2 cm³ | Weight: 0.29 kg
RSDL-1018C Swing direction: counterclockwise | Piston diameter: Ø10 mm | Cylinder force: 35 kgf at 70 kgf/cm² | Effective area: 0.5 cm² | Stroke: total 18 mm (swing 10, straight 8) | Oil capacity: 0.9 cm³ | Weight: 0.12 kg
RSDL-1416C Swing direction: counterclockwise | Piston diameter: Ø14 mm | Cylinder force: 53 kgf at 70 kgf/cm² | Effective area: 0.75 cm² | Stroke: total 16 mm (swing 8, straight 8) | Oil capacity: 1.2 cm³ | Weight: 0.29 kg
Swing ClampsKJF
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KJF RSDR/RSDL Swing Clamp, Hydraulic, Cartridge Type

Brand KJF·Swing Clamps

Available part numbers (4)

RSDR-1018C, RSDR-1416C, RSDL-1018C, RSDL-1416C

How to order

Send the KJF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RSDR-1018CSwing direction: clockwise | Piston diameter: Ø10 mm | Cylinder force: 35 kgf at 70 kgf/cm² | Effective area: 0.5 cm² | Stroke: total 18 mm (swing 10, straight 8) | Oil capacity: 0.9 cm³ | Weight: 0.12 kg
RSDR-1416CSwing direction: clockwise | Piston diameter: Ø14 mm | Cylinder force: 53 kgf at 70 kgf/cm² | Effective area: 0.75 cm² | Stroke: total 16 mm (swing 8, straight 8) | Oil capacity: 1.2 cm³ | Weight: 0.29 kg
RSDL-1018CSwing direction: counterclockwise | Piston diameter: Ø10 mm | Cylinder force: 35 kgf at 70 kgf/cm² | Effective area: 0.5 cm² | Stroke: total 18 mm (swing 10, straight 8) | Oil capacity: 0.9 cm³ | Weight: 0.12 kg
RSDL-1416CSwing direction: counterclockwise | Piston diameter: Ø14 mm | Cylinder force: 53 kgf at 70 kgf/cm² | Effective area: 0.75 cm² | Stroke: total 16 mm (swing 8, straight 8) | Oil capacity: 1.2 cm³ | Weight: 0.29 kg
