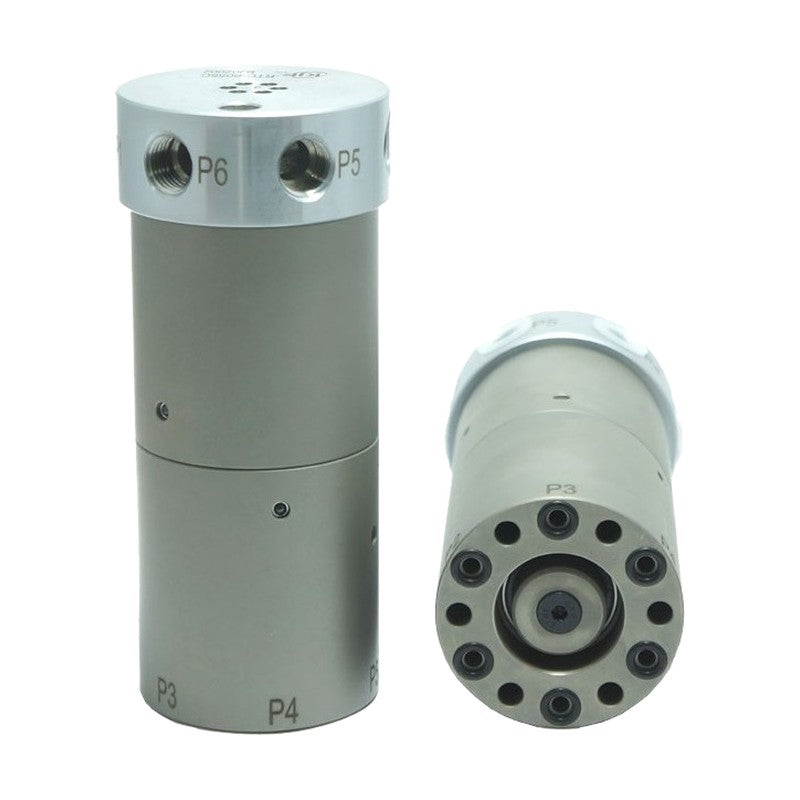

Cartridge-type rotary joint inserted into the hollow shaft of an index unit to shorten the fixture, supplying hydraulic oil, air or cutting fluid to the rotating side.

Key features

• Supplies hydraulic pressure from a stationary line to rotating hydraulic components
• Prevents piping twisting
• Inserted into the index hollow shaft to reduce overall fixture length
• Bolted from outside to inside; reference point is unchanged during repair for easy replacement

Specifications
