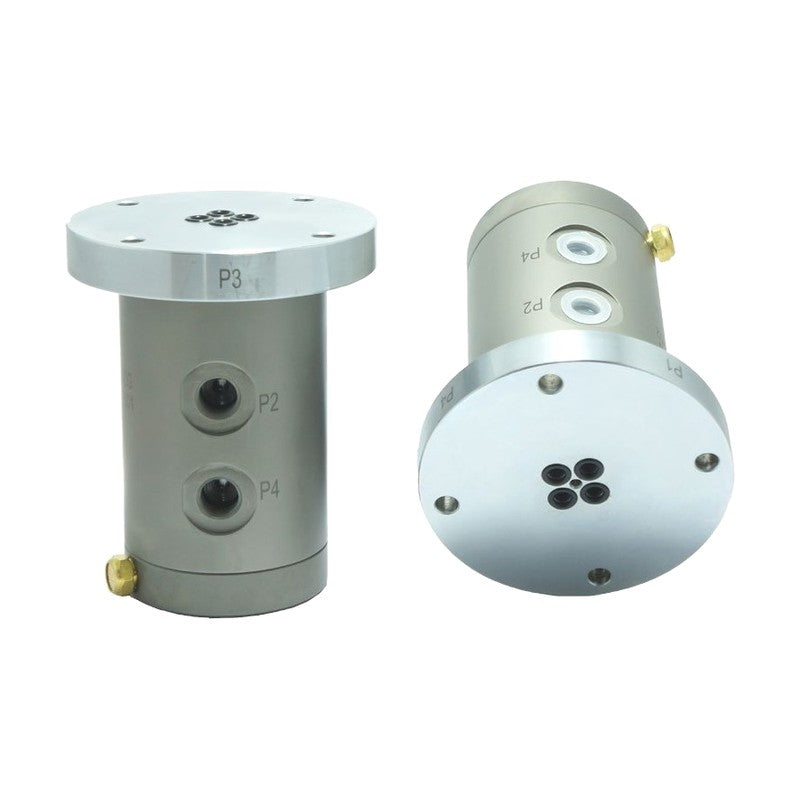

KJF RTC-G Rotary Joint, Hydraulic, Flange Type

KJF RTC-G Rotary Joint, Hydraulic, Flange Type

Flange-type multi-passage rotary joint supplying hydraulic oil, air or cutting fluid to index fixtures on tapping centers and vertical or horizontal machining centers.

Key features

  • Supplies hydraulic pressure from a stationary line to rotating hydraulic components
  • Prevents piping twisting
  • Convenient for index fixtures of tapping and vertical machining centers and horizontal machining center fixtures

Specifications

Fluid Hydraulic oil, air, cutting fluid
Max. pneumatic pressure 9.9 kgf/cm²
Max. speed 120 rpm
Operating temperature 0-70 °C
Seal Exclusive rotary seal
Max. hydraulic pressure 150 kgf/cm²
RTC-1114G Number of lines: 2 | Weight: 3.1 kg
RTC-3030G Number of lines: 3 | Weight: 3.1 kg
RTC-4040G Number of lines: 4 | Weight: 3.3 kg
RTC-5050G Number of lines: 5 | Weight: 4.9 kg
RTC-6060G Number of lines: 6 | Weight: 5.4 kg
RTC-8080G Number of lines: 8 | Weight: 6.5 kg
Rotary JointsKJF
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KJF RTC-G Rotary Joint, Hydraulic, Flange Type

Brand KJF·Rotary Joints

Available part numbers (6)

RTC-1114G, RTC-3030G, RTC-4040G, RTC-5050G, RTC-6060G, RTC-8080G

How to order

Send the KJF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RTC-1114GNumber of lines: 2 | Weight: 3.1 kg
RTC-3030GNumber of lines: 3 | Weight: 3.1 kg
RTC-4040GNumber of lines: 4 | Weight: 3.3 kg
RTC-5050GNumber of lines: 5 | Weight: 4.9 kg
RTC-6060GNumber of lines: 6 | Weight: 5.4 kg
RTC-8080GNumber of lines: 8 | Weight: 6.5 kg
