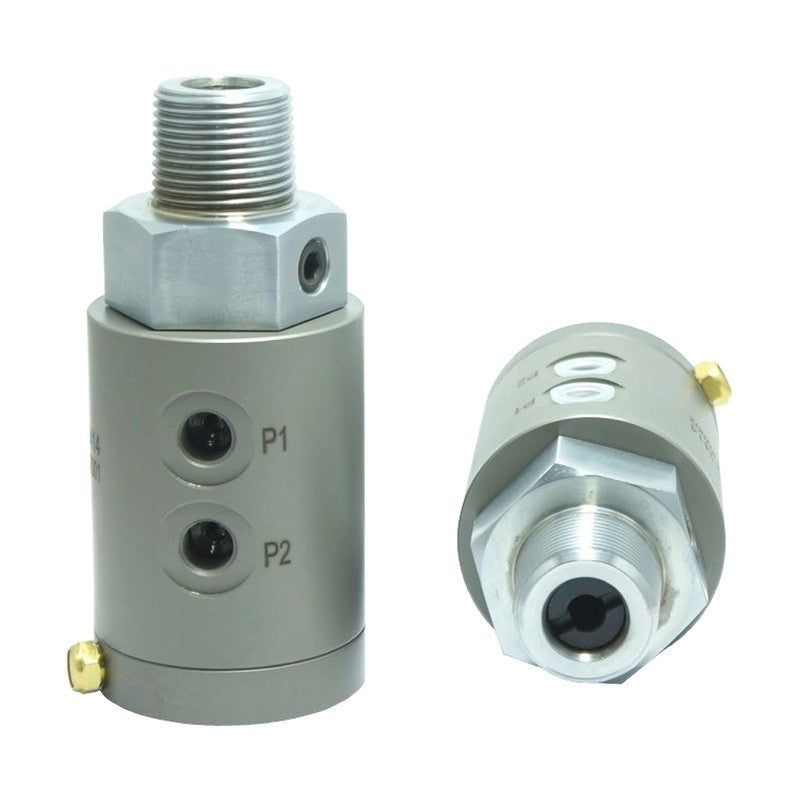

KJF RTC Rotary Joint, Hydraulic, Male Type

KJF RTC Rotary Joint, Hydraulic, Male Type

Male-thread rotary joint secured into a PT tapped hole at the installation location, with 1 or 2 lines for hydraulic oil, air or cutting fluid.

Key features

  • Supplies hydraulic pressure from a stationary line to rotating hydraulic components
  • Prevents piping twisting
  • Secured with a PT thread at the installation location
  • Fix the rotating part firmly and the non-rotating part loosely so it can follow; connect non-rotating ports with hose

Specifications

Fluid Hydraulic oil, air, cutting fluid
Max. pneumatic pressure 9.9 kgf/cm²
Max. speed 120 rpm
Operating temperature 0-70 °C
Seal Exclusive rotary seal
Max. hydraulic pressure 150 kgf/cm²
RTC-3814 Number of lines: 1 | Weight: 0.55 kg
RTC-3412 Number of lines: 1 | Weight: 1.93 kg
RTC-3414 Number of lines: 2 | Weight: 2.7 kg
RTC-1014 Number of lines: 2 | Weight: 2.7 kg
Rotary JointsKJF
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KJF RTC Rotary Joint, Hydraulic, Male Type

Brand KJF·Rotary Joints

Available part numbers (4)

RTC-3814, RTC-3412, RTC-3414, RTC-1014

How to order

Send the KJF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RTC-3814Number of lines: 1 | Weight: 0.55 kg
RTC-3412Number of lines: 1 | Weight: 1.93 kg
RTC-3414Number of lines: 2 | Weight: 2.7 kg
RTC-1014Number of lines: 2 | Weight: 2.7 kg
