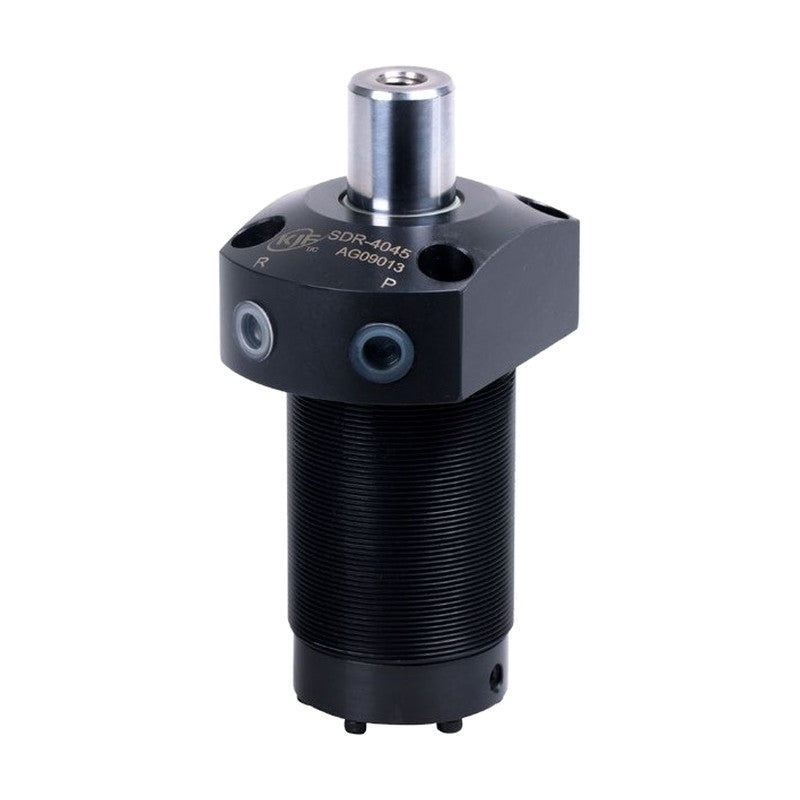

KJF SDR/SDL Swing Clamp, Hydraulic, Top Flange Type

KJF SDR/SDL Swing Clamp, Hydraulic, Top Flange Type

High-pressure hydraulic swing clamp with a top flange and threaded housing, for nipple or gasket-manifold piping, with optional flow control valve and pin-hole rod.

Key features

  • Threaded housing with top flange; easy lever exchange
  • Nipple piping or gasket manifold (G) piping; GV adds a flow control valve
  • Pin-hole rod versions (P, GP, GPV) for balance levers
  • Lever is an option item; fasten the lever bolts with the arm held fixed
  • Install an assist guide pin and speed control valve for long or heavy levers

Specifications

Fluid Hydraulic oil
Swing angle 90° standard (other angles, e.g. 30 = 30°, as customized design)
Operating pressure 20-150 kgf/cm²
Operating temperature 0-60 °C
KJF SDR/SDL Swing Clamp, Hydraulic, Top Flange Type
SDR-2522 Swing direction: clockwise | Type: Top flange, threaded housing, nipple piping | Piston diameter: Ø25 mm | Cylinder force: 354 kgf at 150 kgf/cm² | Stroke: total 22 mm (swing 12, straight 10) | Housing thread: M40 x 1.5 | Oil capacity: 5.20 cm³ | Weight: 1.08 kg
SDR-2522G Swing direction: clockwise | Type: Top flange, gasket manifold | Piston diameter: Ø25 mm | Cylinder force: 354 kgf at 150 kgf/cm² | Stroke: total 22 mm (swing 12, straight 10) | Housing thread: M40 x 1.5 | Oil capacity: 5.20 cm³ | Weight: 1.01 kg
SDR-2522GV Swing direction: clockwise | Type: Top flange, gasket + flow control valve | Piston diameter: Ø25 mm | Cylinder force: 354 kgf at 150 kgf/cm² | Stroke: total 22 mm (swing 12, straight 10) | Housing thread: M40 x 1.5 | Oil capacity: 5.20 cm³ | Weight: 1.02 kg
SDR-2522P Swing direction: clockwise | Type: Top flange, threaded housing, nipple piping, pin-hole rod | Piston diameter: Ø25 mm | Cylinder force: 354 kgf at 150 kgf/cm² | Stroke: total 22 mm (swing 12, straight 10) | Housing thread: M40 x 1.5 | Oil capacity: 5.20 cm³ | Weight: 1.06 kg
SDR-2522GP Swing direction: clockwise | Type: Top flange, gasket manifold, pin-hole rod | Piston diameter: Ø25 mm | Cylinder force: 354 kgf at 150 kgf/cm² | Stroke: total 22 mm (swing 12, straight 10) | Housing thread: M40 x 1.5 | Oil capacity: 5.20 cm³ | Weight: 1.00 kg
SDR-2522GPV Swing direction: clockwise | Type: Top flange, gasket + flow control valve, pin-hole rod | Piston diameter: Ø25 mm | Cylinder force: 354 kgf at 150 kgf/cm² | Stroke: total 22 mm (swing 12, straight 10) | Housing thread: M40 x 1.5 | Oil capacity: 5.20 cm³ | Weight: 1.01 kg
SDR-3030 Swing direction: clockwise | Type: Top flange, threaded housing, nipple piping | Piston diameter: Ø30 mm | Cylinder force: 470 kgf at 150 kgf/cm² | Stroke: total 30 mm (swing 16, straight 14) | Housing thread: M48 x 1.5 | Oil capacity: 9.38 cm³ | Weight: 1.85 kg
SDR-3030G Swing direction: clockwise | Type: Top flange, gasket manifold | Piston diameter: Ø30 mm | Cylinder force: 470 kgf at 150 kgf/cm² | Stroke: total 30 mm (swing 16, straight 14) | Housing thread: M48 x 1.5 | Oil capacity: 9.38 cm³ | Weight: 1.79 kg
SDR-3030GV Swing direction: clockwise | Type: Top flange, gasket + flow control valve | Piston diameter: Ø30 mm | Cylinder force: 470 kgf at 150 kgf/cm² | Stroke: total 30 mm (swing 16, straight 14) | Housing thread: M48 x 1.5 | Oil capacity: 9.38 cm³ | Weight: 1.80 kg
SDR-3030P Swing direction: clockwise | Type: Top flange, threaded housing, nipple piping, pin-hole rod | Piston diameter: Ø30 mm | Cylinder force: 470 kgf at 150 kgf/cm² | Stroke: total 30 mm (swing 16, straight 14) | Housing thread: M48 x 1.5 | Oil capacity: 9.38 cm³ | Weight: 1.83 kg
SDR-3030GP Swing direction: clockwise | Type: Top flange, gasket manifold, pin-hole rod | Piston diameter: Ø30 mm | Cylinder force: 470 kgf at 150 kgf/cm² | Stroke: total 30 mm (swing 16, straight 14) | Housing thread: M48 x 1.5 | Oil capacity: 9.38 cm³ | Weight: 1.77 kg
SDR-3030GPV Swing direction: clockwise | Type: Top flange, gasket + flow control valve, pin-hole rod | Piston diameter: Ø30 mm | Cylinder force: 470 kgf at 150 kgf/cm² | Stroke: total 30 mm (swing 16, straight 14) | Housing thread: M48 x 1.5 | Oil capacity: 9.38 cm³ | Weight: 1.78 kg
SDR-4045 Swing direction: clockwise | Type: Top flange, threaded housing, nipple piping | Piston diameter: Ø40 mm | Cylinder force: 962 kgf at 150 kgf/cm² | Stroke: total 45 mm (swing 16, straight 29) | Housing thread: M60 x 1.5 | Oil capacity: 28.83 cm³ | Weight: 3.29 kg
SDR-4045G Swing direction: clockwise | Type: Top flange, gasket manifold | Piston diameter: Ø40 mm | Cylinder force: 962 kgf at 150 kgf/cm² | Stroke: total 45 mm (swing 16, straight 29) | Housing thread: M60 x 1.5 | Oil capacity: 28.83 cm³ | Weight: 3.16 kg
SDR-4045GV Swing direction: clockwise | Type: Top flange, gasket + flow control valve | Piston diameter: Ø40 mm | Cylinder force: 962 kgf at 150 kgf/cm² | Stroke: total 45 mm (swing 16, straight 29) | Housing thread: M60 x 1.5 | Oil capacity: 28.83 cm³ | Weight: 3.17 kg
SDR-4045P Swing direction: clockwise | Type: Top flange, threaded housing, nipple piping, pin-hole rod | Piston diameter: Ø40 mm | Cylinder force: 962 kgf at 150 kgf/cm² | Stroke: total 45 mm (swing 16, straight 29) | Housing thread: M60 x 1.5 | Oil capacity: 28.83 cm³ | Weight: 3.25 kg
SDR-4045GP Swing direction: clockwise | Type: Top flange, gasket manifold, pin-hole rod | Piston diameter: Ø40 mm | Cylinder force: 962 kgf at 150 kgf/cm² | Stroke: total 45 mm (swing 16, straight 29) | Housing thread: M60 x 1.5 | Oil capacity: 28.83 cm³ | Weight: 3.12 kg
SDR-4045GPV Swing direction: clockwise | Type: Top flange, gasket + flow control valve, pin-hole rod | Piston diameter: Ø40 mm | Cylinder force: 962 kgf at 150 kgf/cm² | Stroke: total 45 mm (swing 16, straight 29) | Housing thread: M60 x 1.5 | Oil capacity: 28.83 cm³ | Weight: 3.13 kg
SDR-5555 Swing direction: clockwise | Type: Top flange, threaded housing, nipple piping | Piston diameter: Ø55 mm | Cylinder force: 2,120 kgf at 150 kgf/cm² | Stroke: total 55 mm (swing 25, straight 30) | Housing thread: M80 x 2.0 | Oil capacity: 77.72 cm³ | Weight: 6.89 kg
SDR-5555G Swing direction: clockwise | Type: Top flange, gasket manifold | Piston diameter: Ø55 mm | Cylinder force: 2,120 kgf at 150 kgf/cm² | Stroke: total 55 mm (swing 25, straight 30) | Housing thread: M80 x 2.0 | Oil capacity: 77.72 cm³ | Weight: 6.51 kg
SDR-5555GV Swing direction: clockwise | Type: Top flange, gasket + flow control valve | Piston diameter: Ø55 mm | Cylinder force: 2,120 kgf at 150 kgf/cm² | Stroke: total 55 mm (swing 25, straight 30) | Housing thread: M80 x 2.0 | Oil capacity: 77.72 cm³ | Weight: 6.53 kg
SDR-5555P Swing direction: clockwise | Type: Top flange, threaded housing, nipple piping, pin-hole rod | Piston diameter: Ø55 mm | Cylinder force: 2,120 kgf at 150 kgf/cm² | Stroke: total 55 mm (swing 25, straight 30) | Housing thread: M80 x 2.0 | Oil capacity: 77.72 cm³ | Weight: 6.85 kg
SDR-5555GP Swing direction: clockwise | Type: Top flange, gasket manifold, pin-hole rod | Piston diameter: Ø55 mm | Cylinder force: 2,120 kgf at 150 kgf/cm² | Stroke: total 55 mm (swing 25, straight 30) | Housing thread: M80 x 2.0 | Oil capacity: 77.72 cm³ | Weight: 6.48 kg
SDR-5555GPV Swing direction: clockwise | Type: Top flange, gasket + flow control valve, pin-hole rod | Piston diameter: Ø55 mm | Cylinder force: 2,120 kgf at 150 kgf/cm² | Stroke: total 55 mm (swing 25, straight 30) | Housing thread: M80 x 2.0 | Oil capacity: 77.72 cm³ | Weight: 6.50 kg
SDL-2522 Swing direction: counterclockwise | Type: Top flange, threaded housing, nipple piping | Piston diameter: Ø25 mm | Cylinder force: 354 kgf at 150 kgf/cm² | Stroke: total 22 mm (swing 12, straight 10) | Housing thread: M40 x 1.5 | Oil capacity: 5.20 cm³ | Weight: 1.08 kg
SDL-2522G Swing direction: counterclockwise | Type: Top flange, gasket manifold | Piston diameter: Ø25 mm | Cylinder force: 354 kgf at 150 kgf/cm² | Stroke: total 22 mm (swing 12, straight 10) | Housing thread: M40 x 1.5 | Oil capacity: 5.20 cm³ | Weight: 1.01 kg
SDL-2522GV Swing direction: counterclockwise | Type: Top flange, gasket + flow control valve | Piston diameter: Ø25 mm | Cylinder force: 354 kgf at 150 kgf/cm² | Stroke: total 22 mm (swing 12, straight 10) | Housing thread: M40 x 1.5 | Oil capacity: 5.20 cm³ | Weight: 1.02 kg
SDL-2522P Swing direction: counterclockwise | Type: Top flange, threaded housing, nipple piping, pin-hole rod | Piston diameter: Ø25 mm | Cylinder force: 354 kgf at 150 kgf/cm² | Stroke: total 22 mm (swing 12, straight 10) | Housing thread: M40 x 1.5 | Oil capacity: 5.20 cm³ | Weight: 1.06 kg
SDL-2522GP Swing direction: counterclockwise | Type: Top flange, gasket manifold, pin-hole rod | Piston diameter: Ø25 mm | Cylinder force: 354 kgf at 150 kgf/cm² | Stroke: total 22 mm (swing 12, straight 10) | Housing thread: M40 x 1.5 | Oil capacity: 5.20 cm³ | Weight: 1.00 kg
SDL-2522GPV Swing direction: counterclockwise | Type: Top flange, gasket + flow control valve, pin-hole rod | Piston diameter: Ø25 mm | Cylinder force: 354 kgf at 150 kgf/cm² | Stroke: total 22 mm (swing 12, straight 10) | Housing thread: M40 x 1.5 | Oil capacity: 5.20 cm³ | Weight: 1.01 kg
SDL-3030 Swing direction: counterclockwise | Type: Top flange, threaded housing, nipple piping | Piston diameter: Ø30 mm | Cylinder force: 470 kgf at 150 kgf/cm² | Stroke: total 30 mm (swing 16, straight 14) | Housing thread: M48 x 1.5 | Oil capacity: 9.38 cm³ | Weight: 1.85 kg
SDL-3030G Swing direction: counterclockwise | Type: Top flange, gasket manifold | Piston diameter: Ø30 mm | Cylinder force: 470 kgf at 150 kgf/cm² | Stroke: total 30 mm (swing 16, straight 14) | Housing thread: M48 x 1.5 | Oil capacity: 9.38 cm³ | Weight: 1.79 kg
SDL-3030GV Swing direction: counterclockwise | Type: Top flange, gasket + flow control valve | Piston diameter: Ø30 mm | Cylinder force: 470 kgf at 150 kgf/cm² | Stroke: total 30 mm (swing 16, straight 14) | Housing thread: M48 x 1.5 | Oil capacity: 9.38 cm³ | Weight: 1.80 kg
SDL-3030P Swing direction: counterclockwise | Type: Top flange, threaded housing, nipple piping, pin-hole rod | Piston diameter: Ø30 mm | Cylinder force: 470 kgf at 150 kgf/cm² | Stroke: total 30 mm (swing 16, straight 14) | Housing thread: M48 x 1.5 | Oil capacity: 9.38 cm³ | Weight: 1.83 kg
SDL-3030GP Swing direction: counterclockwise | Type: Top flange, gasket manifold, pin-hole rod | Piston diameter: Ø30 mm | Cylinder force: 470 kgf at 150 kgf/cm² | Stroke: total 30 mm (swing 16, straight 14) | Housing thread: M48 x 1.5 | Oil capacity: 9.38 cm³ | Weight: 1.77 kg
SDL-3030GPV Swing direction: counterclockwise | Type: Top flange, gasket + flow control valve, pin-hole rod | Piston diameter: Ø30 mm | Cylinder force: 470 kgf at 150 kgf/cm² | Stroke: total 30 mm (swing 16, straight 14) | Housing thread: M48 x 1.5 | Oil capacity: 9.38 cm³ | Weight: 1.78 kg
SDL-4045 Swing direction: counterclockwise | Type: Top flange, threaded housing, nipple piping | Piston diameter: Ø40 mm | Cylinder force: 962 kgf at 150 kgf/cm² | Stroke: total 45 mm (swing 16, straight 29) | Housing thread: M60 x 1.5 | Oil capacity: 28.83 cm³ | Weight: 3.29 kg
SDL-4045G Swing direction: counterclockwise | Type: Top flange, gasket manifold | Piston diameter: Ø40 mm | Cylinder force: 962 kgf at 150 kgf/cm² | Stroke: total 45 mm (swing 16, straight 29) | Housing thread: M60 x 1.5 | Oil capacity: 28.83 cm³ | Weight: 3.16 kg
SDL-4045GV Swing direction: counterclockwise | Type: Top flange, gasket + flow control valve | Piston diameter: Ø40 mm | Cylinder force: 962 kgf at 150 kgf/cm² | Stroke: total 45 mm (swing 16, straight 29) | Housing thread: M60 x 1.5 | Oil capacity: 28.83 cm³ | Weight: 3.17 kg
SDL-4045P Swing direction: counterclockwise | Type: Top flange, threaded housing, nipple piping, pin-hole rod | Piston diameter: Ø40 mm | Cylinder force: 962 kgf at 150 kgf/cm² | Stroke: total 45 mm (swing 16, straight 29) | Housing thread: M60 x 1.5 | Oil capacity: 28.83 cm³ | Weight: 3.25 kg
SDL-4045GP Swing direction: counterclockwise | Type: Top flange, gasket manifold, pin-hole rod | Piston diameter: Ø40 mm | Cylinder force: 962 kgf at 150 kgf/cm² | Stroke: total 45 mm (swing 16, straight 29) | Housing thread: M60 x 1.5 | Oil capacity: 28.83 cm³ | Weight: 3.12 kg
SDL-4045GPV Swing direction: counterclockwise | Type: Top flange, gasket + flow control valve, pin-hole rod | Piston diameter: Ø40 mm | Cylinder force: 962 kgf at 150 kgf/cm² | Stroke: total 45 mm (swing 16, straight 29) | Housing thread: M60 x 1.5 | Oil capacity: 28.83 cm³ | Weight: 3.13 kg
SDL-5555 Swing direction: counterclockwise | Type: Top flange, threaded housing, nipple piping | Piston diameter: Ø55 mm | Cylinder force: 2,120 kgf at 150 kgf/cm² | Stroke: total 55 mm (swing 25, straight 30) | Housing thread: M80 x 2.0 | Oil capacity: 77.72 cm³ | Weight: 6.89 kg
SDL-5555G Swing direction: counterclockwise | Type: Top flange, gasket manifold | Piston diameter: Ø55 mm | Cylinder force: 2,120 kgf at 150 kgf/cm² | Stroke: total 55 mm (swing 25, straight 30) | Housing thread: M80 x 2.0 | Oil capacity: 77.72 cm³ | Weight: 6.51 kg
SDL-5555GV Swing direction: counterclockwise | Type: Top flange, gasket + flow control valve | Piston diameter: Ø55 mm | Cylinder force: 2,120 kgf at 150 kgf/cm² | Stroke: total 55 mm (swing 25, straight 30) | Housing thread: M80 x 2.0 | Oil capacity: 77.72 cm³ | Weight: 6.53 kg
SDL-5555P Swing direction: counterclockwise | Type: Top flange, threaded housing, nipple piping, pin-hole rod | Piston diameter: Ø55 mm | Cylinder force: 2,120 kgf at 150 kgf/cm² | Stroke: total 55 mm (swing 25, straight 30) | Housing thread: M80 x 2.0 | Oil capacity: 77.72 cm³ | Weight: 6.85 kg
SDL-5555GP Swing direction: counterclockwise | Type: Top flange, gasket manifold, pin-hole rod | Piston diameter: Ø55 mm | Cylinder force: 2,120 kgf at 150 kgf/cm² | Stroke: total 55 mm (swing 25, straight 30) | Housing thread: M80 x 2.0 | Oil capacity: 77.72 cm³ | Weight: 6.48 kg
SDL-5555GPV Swing direction: counterclockwise | Type: Top flange, gasket + flow control valve, pin-hole rod | Piston diameter: Ø55 mm | Cylinder force: 2,120 kgf at 150 kgf/cm² | Stroke: total 55 mm (swing 25, straight 30) | Housing thread: M80 x 2.0 | Oil capacity: 77.72 cm³ | Weight: 6.50 kg
Swing ClampsKJF
