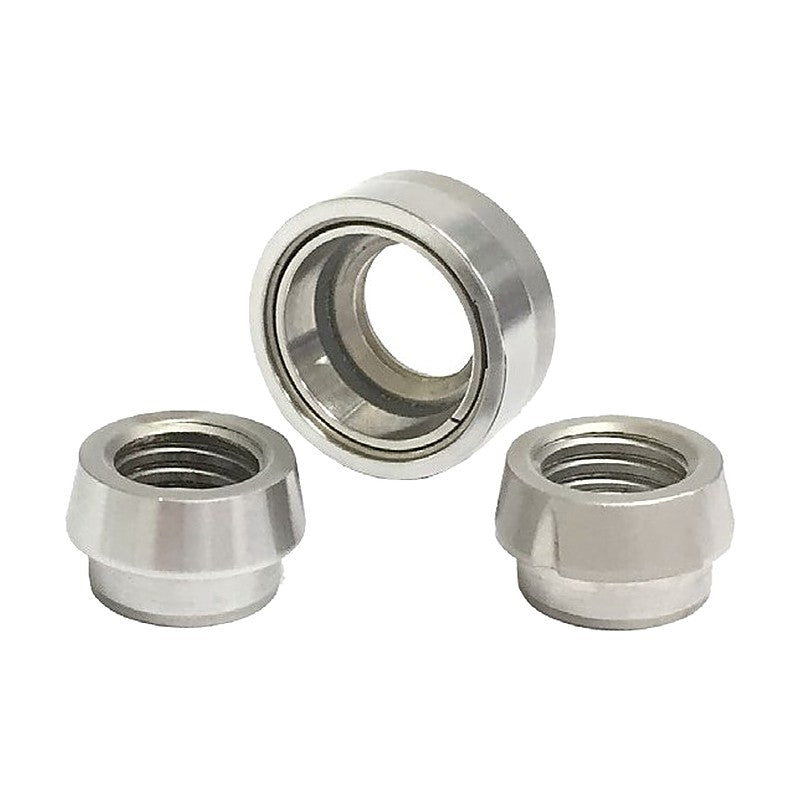

KJF SLM Ultraprecision Locator

Manual ultraprecision locating pin and bushing set that positions fixtures and pallets with 3 μm repeatability through dual (taper and face) contact; locating only, no clamping function.

Key features

Repeatability 3 μm by dual contact
Simple installation, compact size
Load weight up to 500 kg (horizontal), 100 kg (vertical)
Locating function only (no clamping); located by hand
Install guide pins to protect the taper part of the pin
Tighten the SLM-□D pin first; align the D pin center and C pin notch at 90°

Specifications

Repeatability	0.003 mm
Stroke	0.3 mm
Max. load	500 kg horizontal / 100 kg vertical
Min. tightening force	203 kgf
Operating temperature	0-70 °C
Weight (1000 size)	Pin 0.01 kg, bushing 0.024 kg

SLM-0600D		Part: Locating pin \| Locating diameter: Ø10 mm \| Mounting thread: M8 x 1.25
SLM-0600C		Part: Locating pin with notch \| Locating diameter: Ø10 mm \| Mounting thread: M8 x 1.25
SLM-0600B		Part: Bushing \| Locating diameter: Ø10 mm \| Mounting thread: M10 x 1.5
SLM-0600L		Part: Locating bushing (option) \| Locating diameter: Ø10 mm
SLM-0800D		Part: Locating pin \| Locating diameter: Ø12 mm \| Mounting thread: M10 x 1.5
SLM-0800C		Part: Locating pin with notch \| Locating diameter: Ø12 mm \| Mounting thread: M10 x 1.5
SLM-0800B		Part: Bushing \| Locating diameter: Ø12 mm \| Mounting thread: M12 x 1.75
SLM-0800L		Part: Locating bushing (option) \| Locating diameter: Ø12 mm
SLM-1000D		Part: Locating pin \| Locating diameter: Ø15 mm \| Mounting thread: M12 x 1.75
SLM-1000C		Part: Locating pin with notch \| Locating diameter: Ø15 mm \| Mounting thread: M12 x 1.75
SLM-1000B		Part: Bushing \| Locating diameter: Ø15 mm \| Mounting thread: M14 x 2.0
SLM-1000L		Part: Locating bushing (option) \| Locating diameter: Ø15 mm
SLM-1200D		Part: Locating pin \| Locating diameter: Ø18 mm \| Mounting thread: M16 x 2.0
SLM-1200C		Part: Locating pin with notch \| Locating diameter: Ø18 mm \| Mounting thread: M16 x 2.0
SLM-1200B		Part: Bushing \| Locating diameter: Ø18 mm \| Mounting thread: M18 x 2.5
SLM-1200L		Part: Locating bushing (option) \| Locating diameter: Ø18 mm
