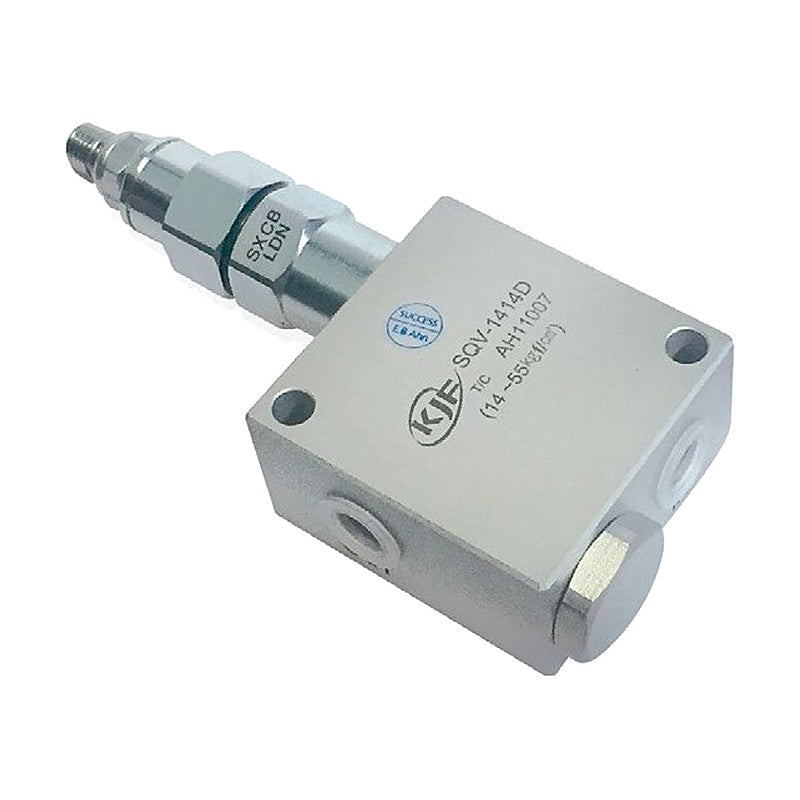

KJF SQV Sequence Valve, Hydraulic
KJF SQV Sequence Valve, Hydraulic
Hydraulic sequence valve installed between branch circuits to control the operating order of clamps and work supports by pressure.
Key features
- Controls circuit operation sequence by pressure between two or more branch circuits
- Standard (nipple port) and gasket (manifold) types
Specifications
| Fluid | Hydraulic oil |
|---|---|
| Operating temperature | 0-60 °C |
| SQV-1414A | Type: Standard (nipple) | Set pressure range: 35-210 kgf/cm² | Weight: 0.86 kg | |
| SQV-1414B | Type: Standard (nipple) | Set pressure range: 20-105 kgf/cm² | Weight: 0.86 kg | |
| SQV-1414D | Type: Standard (nipple) | Set pressure range: 14-55 kgf/cm² | Weight: 0.86 kg | |
| SQV-1414GA | Type: Gasket | Set pressure range: 35-210 kgf/cm² | Weight: 0.89 kg | |
| SQV-1414GB | Type: Gasket | Set pressure range: 20-105 kgf/cm² | Weight: 0.89 kg | |
| SQV-1414GD | Type: Gasket | Set pressure range: 14-55 kgf/cm² | Weight: 0.89 kg |
Sequence ValvesKJF
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
KJF SQV Sequence Valve, Hydraulic
Available part numbers (6)
SQV-1414A, SQV-1414B, SQV-1414D, SQV-1414GA, SQV-1414GB, SQV-1414GD
How to order
Send the KJF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
KJF
Sequence Valves
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| SQV-1414A | Type: Standard (nipple) | Set pressure range: 35-210 kgf/cm² | Weight: 0.86 kg | ||
| SQV-1414B | Type: Standard (nipple) | Set pressure range: 20-105 kgf/cm² | Weight: 0.86 kg | ||
| SQV-1414D | Type: Standard (nipple) | Set pressure range: 14-55 kgf/cm² | Weight: 0.86 kg | ||
| SQV-1414GA | Type: Gasket | Set pressure range: 35-210 kgf/cm² | Weight: 0.89 kg | ||
| SQV-1414GB | Type: Gasket | Set pressure range: 20-105 kgf/cm² | Weight: 0.89 kg | ||
| SQV-1414GD | Type: Gasket | Set pressure range: 14-55 kgf/cm² | Weight: 0.89 kg |
Need a different model, or a part not listed here? Send us your parts list →
