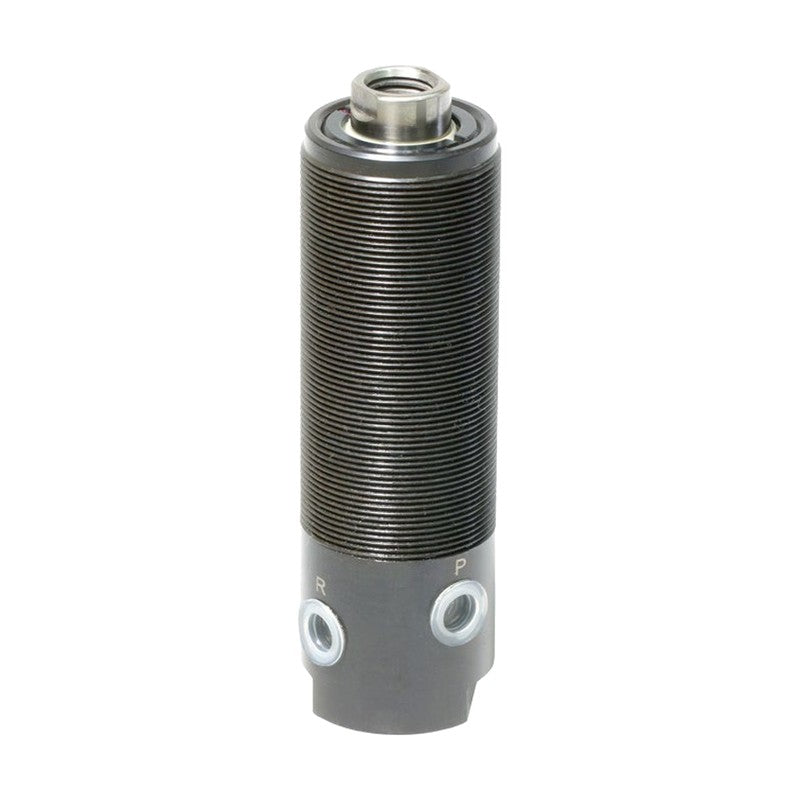

KJF TBD Threaded Body Clamp, Hydraulic, Double-Acting

KJF TBD Threaded Body Clamp, Hydraulic, Double-Acting

Double-acting hydraulic cylinder with a threaded body for easy positioning in fixtures, with both ports on one side and a screw-in cover for easy seal replacement.

Key features

  • Threaded body for easy installation and positioning
  • Two ports on one side for easy use on fixtures
  • Screw-type cover for easy seal exchange and maintenance
  • Use preferably within 80% of the standard stroke

Specifications

Fluid Hydraulic oil
Operating pressure 15-250 kgf/cm²
Operating temperature 0-60 °C
Piston speed 8-100 mm/s
Port 1/4
Mounting accessories MBS/MBR mounting bases
TBD-3225 Piston diameter: Ø32 mm | Stroke: 25 mm | Max clamping force: 1,800 kgf | Effective area: 7.2 cm² | Oil capacity: 18.1 cm³ | Body thread: M45 x 1.5 | Weight: 1.2 kg
TBD-3250 Piston diameter: Ø32 mm | Stroke: 50 mm | Max clamping force: 1,800 kgf | Effective area: 7.2 cm² | Oil capacity: 36.3 cm³ | Body thread: M45 x 1.5 | Weight: 1.4 kg
TBD-4025 Piston diameter: Ø40 mm | Stroke: 25 mm | Max clamping force: 2,920 kgf | Effective area: 11.7 cm² | Oil capacity: 29.5 cm³ | Body thread: M60 x 2.0 | Weight: 2.1 kg
TBD-4050 Piston diameter: Ø40 mm | Stroke: 50 mm | Max clamping force: 2,920 kgf | Effective area: 11.7 cm² | Oil capacity: 58.9 cm³ | Body thread: M60 x 2.0 | Weight: 2.6 kg
TBD-5025 Piston diameter: Ø50 mm | Stroke: 25 mm | Max clamping force: 4,620 kgf | Effective area: 18.5 cm² | Oil capacity: 47.1 cm³ | Body thread: M70 x 2.0 | Weight: 3.0 kg
TBD-5050 Piston diameter: Ø50 mm | Stroke: 50 mm | Max clamping force: 4,620 kgf | Effective area: 18.5 cm² | Oil capacity: 94.2 cm³ | Body thread: M70 x 2.0 | Weight: 3.6 kg
TBD-6325 Piston diameter: Ø63 mm | Stroke: 25 mm | Max clamping force: 7,570 kgf | Effective area: 30.3 cm² | Oil capacity: 76.0 cm³ | Body thread: M80 x 2.0 | Weight: 4.1 kg
TBD-6350 Piston diameter: Ø63 mm | Stroke: 50 mm | Max clamping force: 7,570 kgf | Effective area: 30.3 cm² | Oil capacity: 152.0 cm³ | Body thread: M80 x 2.0 | Weight: 4.8 kg
Threaded Body CylindersKJF
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KJF TBD Threaded Body Clamp, Hydraulic, Double-Acting

Brand KJF·Threaded Body Cylinders

Available part numbers (8)

TBD-3225, TBD-3250, TBD-4025, TBD-4050, TBD-5025, TBD-5050, TBD-6325, TBD-6350

How to order

Send the KJF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TBD-3225Piston diameter: Ø32 mm | Stroke: 25 mm | Max clamping force: 1,800 kgf | Effective area: 7.2 cm² | Oil capacity: 18.1 cm³ | Body thread: M45 x 1.5 | Weight: 1.2 kg
TBD-3250Piston diameter: Ø32 mm | Stroke: 50 mm | Max clamping force: 1,800 kgf | Effective area: 7.2 cm² | Oil capacity: 36.3 cm³ | Body thread: M45 x 1.5 | Weight: 1.4 kg
TBD-4025Piston diameter: Ø40 mm | Stroke: 25 mm | Max clamping force: 2,920 kgf | Effective area: 11.7 cm² | Oil capacity: 29.5 cm³ | Body thread: M60 x 2.0 | Weight: 2.1 kg
TBD-4050Piston diameter: Ø40 mm | Stroke: 50 mm | Max clamping force: 2,920 kgf | Effective area: 11.7 cm² | Oil capacity: 58.9 cm³ | Body thread: M60 x 2.0 | Weight: 2.6 kg
TBD-5025Piston diameter: Ø50 mm | Stroke: 25 mm | Max clamping force: 4,620 kgf | Effective area: 18.5 cm² | Oil capacity: 47.1 cm³ | Body thread: M70 x 2.0 | Weight: 3.0 kg
TBD-5050Piston diameter: Ø50 mm | Stroke: 50 mm | Max clamping force: 4,620 kgf | Effective area: 18.5 cm² | Oil capacity: 94.2 cm³ | Body thread: M70 x 2.0 | Weight: 3.6 kg
TBD-6325Piston diameter: Ø63 mm | Stroke: 25 mm | Max clamping force: 7,570 kgf | Effective area: 30.3 cm² | Oil capacity: 76.0 cm³ | Body thread: M80 x 2.0 | Weight: 4.1 kg
TBD-6350Piston diameter: Ø63 mm | Stroke: 50 mm | Max clamping force: 7,570 kgf | Effective area: 30.3 cm² | Oil capacity: 152.0 cm³ | Body thread: M80 x 2.0 | Weight: 4.8 kg
