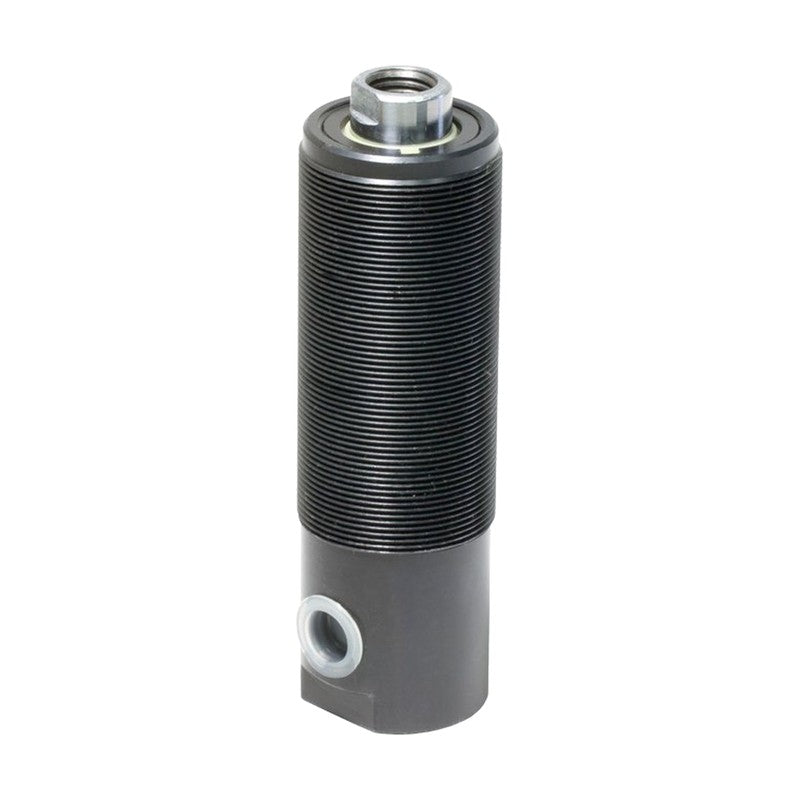

KJF TBP Threaded Body Clamp, Hydraulic, Single-Acting (Push)

KJF TBP Threaded Body Clamp, Hydraulic, Single-Acting (Push)

Single-acting, spring-return hydraulic push cylinder with a threaded body for compact fixture installation with simple piping.

Key features

  • Threaded body for easy installation
  • Tension spring inside; hold the rod with a spanner when fastening a fitting
  • Excessive operation of the spring-loaded piston is a common cause of malfunction
  • Make piping size as large as possible

Specifications

Fluid Hydraulic oil
Operating pressure 15-250 kgf/cm²
Operating temperature 0-60 °C
Piston speed 8-100 mm/s
Port 1/8
TBP-1308 Piston diameter: Ø13 mm | Stroke: 8 mm | Max clamping force: 320 kgf | Effective area: 1.30 cm² | Oil capacity: 1.0 cm³ | Body thread: M20 x 1.5 | Weight: 0.11 kg
TBP-2015 Piston diameter: Ø20 mm | Stroke: 15 mm | Max clamping force: 780 kgf | Effective area: 3.14 cm² | Oil capacity: 4.7 cm³ | Body thread: M28 x 1.5 | Weight: 0.23 kg
TBP-2615 Piston diameter: Ø26 mm | Stroke: 15 mm | Max clamping force: 1,320 kgf | Effective area: 5.3 cm² | Oil capacity: 8.0 cm³ | Body thread: M32 x 1.5 | Weight: 0.34 kg
Threaded Body CylindersKJF
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KJF TBP Threaded Body Clamp, Hydraulic, Single-Acting (Push)

Brand KJF·Threaded Body Cylinders

Available part numbers (3)

TBP-1308, TBP-2015, TBP-2615

How to order

Send the KJF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TBP-1308Piston diameter: Ø13 mm | Stroke: 8 mm | Max clamping force: 320 kgf | Effective area: 1.30 cm² | Oil capacity: 1.0 cm³ | Body thread: M20 x 1.5 | Weight: 0.11 kg
TBP-2015Piston diameter: Ø20 mm | Stroke: 15 mm | Max clamping force: 780 kgf | Effective area: 3.14 cm² | Oil capacity: 4.7 cm³ | Body thread: M28 x 1.5 | Weight: 0.23 kg
TBP-2615Piston diameter: Ø26 mm | Stroke: 15 mm | Max clamping force: 1,320 kgf | Effective area: 5.3 cm² | Oil capacity: 8.0 cm³ | Body thread: M32 x 1.5 | Weight: 0.34 kg
