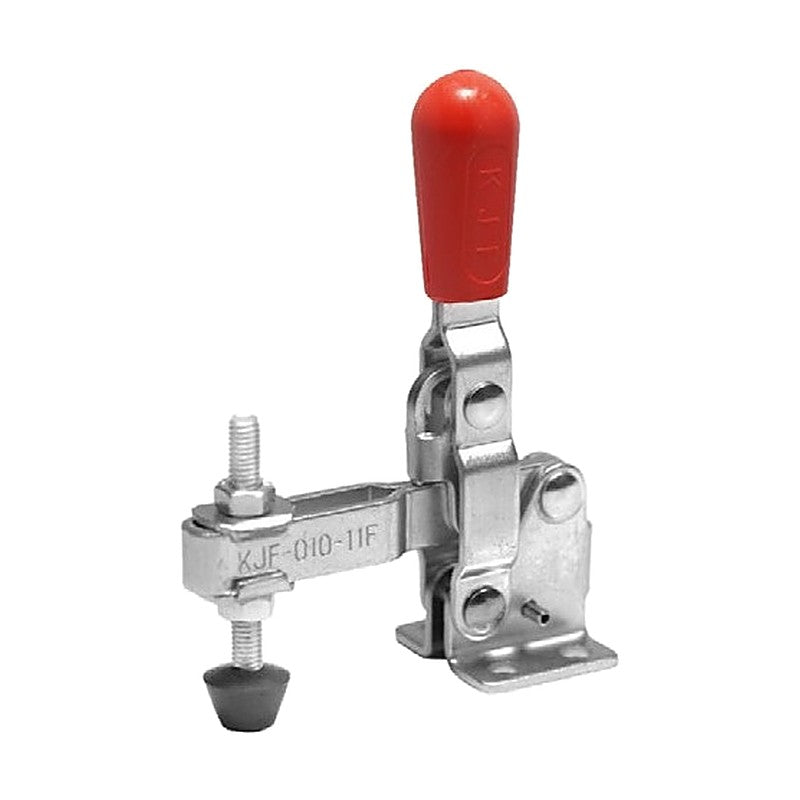

KJF Vertical Type Toggle Clamps (KJF-xxx-1 Series)
KJF Vertical Type Toggle Clamps (KJF-xxx-1 Series)
Manual vertical-handle toggle clamps that lock at the over-center dead point of the link and pin mechanism to hold a workpiece with one touch, offered with flange, straight and angle bases.
Key features
- Over-center toggle linkage gives a positive lock and high holding force with a simple one-touch operation
- Flange, straight and angle bases; U-arm or solid-bar arms in short, middle and long lengths
- Holding capacity from 50 kgf to 550 kgf
- Stainless steel and lock-type versions are available for selected sizes
- KJF-017-16S is designed for inspection fixtures with minimized arm play; arm length can be changed to order
Specifications
| Handle | PVC (heat resistant to approx. 70 °C) |
|---|---|
| Spindle pad | NBR (heat resistant to approx. 100 °C) |
| Body finish | Galvanized (zinc plated) steel; stainless steel versions available |
| Model number structure | KJF-[holding capacity, e.g. 018 = 180 kgf]-[1 = vertical][arm/base code][base type F/S/A][material] |
| KJF-005-11F | Holding capacity: 50 kgf | Base: Flange, low | Arm: U-arm, short | Handle / arm opening: 58° / 100° | Spindle supplied: M5 x 40.0L | Spindle adjustment: 20 mm | Weight: 66 g | Material: Steel, zinc plated | |
| KJF-005-11FS | Holding capacity: 50 kgf | Base: Flange, low | Arm: U-arm, short | Handle / arm opening: 58° / 100° | Spindle supplied: M5 x 36.0L | Spindle adjustment: 20 mm | Weight: 63 g | Material: Stainless steel | |
| KJF-009-11FS | Holding capacity: 90 kgf | Base: Flange, low | Arm: U-arm, short | Handle / arm opening: 60° / 100° | Spindle supplied: M6 x 44.0L | Spindle adjustment: 20 mm | Weight: 157 g | Material: Stainless steel | |
| KJF-010-11A | Holding capacity: 100 kgf | Base: Angle, low | Arm: U-arm, short | Handle / arm opening: 62° / 101° | Spindle supplied: M6 x 58.0L | Spindle adjustment: 34 mm | Weight: 187 g | Material: Steel, zinc plated | |
| KJF-010-11AS | Holding capacity: 100 kgf | Base: Angle, low | Arm: U-arm, short | Handle / arm opening: 62° / 101° | Spindle supplied: M6 x 58.0L | Spindle adjustment: 34 mm | Weight: 187 g | Material: Stainless steel | |
| KJF-010-11F | Holding capacity: 100 kgf | Base: Flange, low | Arm: U-arm, short | Handle / arm opening: 62° / 101° | Spindle supplied: M6 x 58.0L | Spindle adjustment: 34 mm | Weight: 165 g | Material: Steel, zinc plated | |
| KJF-010-11FS | Holding capacity: 100 kgf | Base: Flange, low | Arm: U-arm, short | Handle / arm opening: 62° / 101° | Spindle supplied: M6 x 58.0L | Spindle adjustment: 34 mm | Weight: 165 g | Material: Stainless steel | |
| KJF-010-11S | Holding capacity: 100 kgf | Base: Straight, low | Arm: U-arm, short | Handle / arm opening: 62° / 101° | Spindle supplied: M6 x 58.0L | Spindle adjustment: 34 mm | Weight: 163 g | Material: Steel, zinc plated | |
| KJF-010-12A | Holding capacity: 100 kgf | Base: Angle, low | Arm: U-arm, long | Handle / arm opening: 62° / 101° | Spindle supplied: M6 x 58.0L | Spindle adjustment: 82 mm | Weight: 207 g | Material: Steel, zinc plated | |
| KJF-010-12F | Holding capacity: 100 kgf | Base: Flange, low | Arm: U-arm, long | Handle / arm opening: 62° / 101° | Spindle supplied: M6 x 58.0L | Spindle adjustment: 82 mm | Weight: 185 g | Material: Steel, zinc plated | |
| KJF-010-12S | Holding capacity: 100 kgf | Base: Straight, low | Arm: U-arm, long | Handle / arm opening: 62° / 101° | Spindle supplied: M6 x 58.0L | Spindle adjustment: 82 mm | Weight: 182 g | Material: Steel, zinc plated | |
| KJF-010-13A | Holding capacity: 100 kgf | Base: Angle, low | Arm: U-arm, middle | Handle / arm opening: 62° / 101° | Spindle supplied: M6 x 58.0L | Spindle adjustment: 58 mm | Weight: 199 g | Material: Steel, zinc plated | |
| KJF-010-13F | Holding capacity: 100 kgf | Base: Flange, low | Arm: U-arm, middle | Handle / arm opening: 62° / 101° | Spindle supplied: M6 x 58.0L | Spindle adjustment: 58 mm | Weight: 175 g | Material: Steel, zinc plated | |
| KJF-010-13S | Holding capacity: 100 kgf | Base: Straight, low | Arm: U-arm, middle | Handle / arm opening: 62° / 101° | Spindle supplied: M6 x 58.0L | Spindle adjustment: 58 mm | Weight: 175 g | Material: Steel, zinc plated | |
| KJF-017-16S | Holding capacity: 170 kgf | Base: Straight, low | Arm: Solid bar, short | Handle / arm opening: 56° / 99.3° | Spindle supplied: M8 x 67.0L | Spindle adjustment: N/A | Weight: 406 g | Material: Steel, zinc plated | |
| KJF-018-11A | Holding capacity: 180 kgf | Base: Angle, low | Arm: U-arm, short | Handle / arm opening: 66° / 114° | Spindle supplied: M8 x 77.0L | Spindle adjustment: 48 mm | Weight: 466 g | Material: Steel, zinc plated | |
| KJF-018-11AS | Holding capacity: 180 kgf | Base: Angle, low | Arm: U-arm, short | Handle / arm opening: 66° / 114° | Spindle supplied: M8 x 77.0L | Spindle adjustment: 48 mm | Weight: 466 g | Material: Stainless steel | |
| KJF-018-11F | Holding capacity: 180 kgf | Base: Flange, low | Arm: U-arm, short | Handle / arm opening: 66° / 114° | Spindle supplied: M8 x 77.0L | Spindle adjustment: 48 mm | Weight: 400 g | Material: Steel, zinc plated | |
| KJF-018-11FS | Holding capacity: 180 kgf | Base: Flange, low | Arm: U-arm, short | Handle / arm opening: 66° / 114° | Spindle supplied: M8 x 77.0L | Spindle adjustment: 48 mm | Weight: 376 g | Material: Stainless steel | |
| KJF-018-11S | Holding capacity: 180 kgf | Base: Straight, low | Arm: U-arm, short | Handle / arm opening: 66° / 114° | Spindle supplied: M8 x 77.0L | Spindle adjustment: 48 mm | Weight: 403 g | Material: Steel, zinc plated | |
| KJF-018-12A | Holding capacity: 180 kgf | Base: Angle, low | Arm: U-arm, middle | Handle / arm opening: 66° / 114° | Spindle supplied: M8 x 77.0L | Spindle adjustment: 98 mm | Weight: 503 g | Material: Steel, zinc plated | |
| KJF-018-12F | Holding capacity: 180 kgf | Base: Flange, low | Arm: U-arm, middle | Handle / arm opening: 66° / 114° | Spindle supplied: M8 x 77.0L | Spindle adjustment: 98 mm | Weight: 431 g | Material: Steel, zinc plated | |
| KJF-018-12S | Holding capacity: 180 kgf | Base: Straight, low | Arm: U-arm, middle | Handle / arm opening: 66° / 114° | Spindle supplied: M8 x 77.0L | Spindle adjustment: 98 mm | Weight: 403 g | Material: Steel, zinc plated | |
| KJF-018-13A | Holding capacity: 180 kgf | Base: Angle, low | Arm: U-arm, long | Handle / arm opening: 66° / 114° | Spindle supplied: M8 x 77.0L | Spindle adjustment: 127 mm | Weight: 515 g | Material: Steel, zinc plated | |
| KJF-018-13F | Holding capacity: 180 kgf | Base: Flange, low | Arm: U-arm, long | Handle / arm opening: 66° / 114° | Spindle supplied: M8 x 77.0L | Spindle adjustment: 127 mm | Weight: 449 g | Material: Steel, zinc plated | |
| KJF-018-13S | Holding capacity: 180 kgf | Base: Straight, low | Arm: U-arm, long | Handle / arm opening: 66° / 114° | Spindle supplied: M8 x 77.0L | Spindle adjustment: 127 mm | Weight: 452 g | Material: Steel, zinc plated | |
| KJF-018-15A | Holding capacity: 180 kgf | Base: Angle, low | Arm: Solid bar, long | Handle / arm opening: 66° / 114° | Spindle supplied: M8 x 77.0L | Spindle adjustment: N/A | Weight: 477 g | Material: Steel, zinc plated | |
| KJF-018-15F | Holding capacity: 180 kgf | Base: Flange, low | Arm: Solid bar, long | Handle / arm opening: 66° / 114° | Spindle supplied: M8 x 77.0L | Spindle adjustment: N/A | Weight: 405 g | Material: Steel, zinc plated | |
| KJF-018-15S | Holding capacity: 180 kgf | Base: Straight, low | Arm: Solid bar, long | Handle / arm opening: 66° / 114° | Spindle supplied: M8 x 77.0L | Spindle adjustment: N/A | Weight: 405 g | Material: Steel, zinc plated | |
| KJF-018-16A | Holding capacity: 180 kgf | Base: Angle, low | Arm: Solid bar, long | Handle / arm opening: 66° / 114° | Spindle supplied: M8 x 77.0L | Spindle adjustment: N/A | Weight: 508 g | Material: Steel, zinc plated | |
| KJF-018-16F | Holding capacity: 180 kgf | Base: Flange, low | Arm: Solid bar, long | Handle / arm opening: 66° / 114° | Spindle supplied: M8 x 77.0L | Spindle adjustment: N/A | Weight: 441 g | Material: Steel, zinc plated | |
| KJF-018-16S | Holding capacity: 180 kgf | Base: Straight, low | Arm: Solid bar, long | Handle / arm opening: 66° / 114° | Spindle supplied: M8 x 77.0L | Spindle adjustment: N/A | Weight: 440 g | Material: Steel, zinc plated | |
| KJF-018-17A | Holding capacity: 180 kgf | Base: Angle, low | Arm: Solid bar, long | Handle / arm opening: 66° / 114° | Spindle supplied: M8 x 77.0L | Spindle adjustment: N/A | Weight: 538 g | Material: Steel, zinc plated | |
| KJF-018-17F | Holding capacity: 180 kgf | Base: Flange, low | Arm: Solid bar, long | Handle / arm opening: 66° / 114° | Spindle supplied: M8 x 77.0L | Spindle adjustment: N/A | Weight: 479 g | Material: Steel, zinc plated | |
| KJF-018-17S | Holding capacity: 180 kgf | Base: Straight, low | Arm: Solid bar, long | Handle / arm opening: 66° / 114° | Spindle supplied: M8 x 77.0L | Spindle adjustment: N/A | Weight: 471 g | Material: Steel, zinc plated | |
| KJF-034-11FS | Holding capacity: 340 kgf | Base: Flange, low | Arm: U-arm, short | Handle / arm opening: 58° / 103° | Spindle supplied: M10 x 85.0L | Spindle adjustment: 62 mm | Weight: 659 g | Material: Stainless steel | |
| KJF-036-11F | Holding capacity: 360 kgf | Base: Flange, low | Arm: U-arm, short | Handle / arm opening: 60° / 115° | Spindle supplied: M10 x 90.0L | Spindle adjustment: 60 mm | Weight: 819 g | Material: Steel, zinc plated | |
| KJF-036-12F | Holding capacity: 360 kgf | Base: Flange, low | Arm: U-arm, long | Handle / arm opening: 60° / 115° | Spindle supplied: M10 x 90.0L | Spindle adjustment: 114 mm | Weight: 884 g | Material: Steel, zinc plated | |
| KJF-040-12F | Holding capacity: 400 kgf | Base: Flange, low | Arm: Solid bar, long | Handle / arm opening: 62° / 91° | Spindle supplied: M10 x 89.0L | Spindle adjustment: N/A | Weight: 866 g | Material: Steel, zinc plated | |
| KJF-045-11F | Holding capacity: 450 kgf | Base: Flange, low | Arm: U-arm, short | Handle / arm opening: 62° / 99° | Spindle supplied: M12 x 100.0L | Spindle adjustment: 103 mm | Weight: 1410 g | Material: Steel, zinc plated | |
| KJF-045-11S | Holding capacity: 450 kgf | Base: Straight, low | Arm: U-arm, short | Handle / arm opening: 62° / 99° | Spindle supplied: M12 x 100.0L | Spindle adjustment: 103 mm | Weight: 1420 g | Material: Steel, zinc plated | |
| KJF-045-12F | Holding capacity: 450 kgf | Base: Flange, low | Arm: U-arm, long | Handle / arm opening: 62° / 99° | Spindle supplied: M12 x 100.0L | Spindle adjustment: 143 mm | Weight: 1470 g | Material: Steel, zinc plated | |
| KJF-045-12S | Holding capacity: 450 kgf | Base: Straight, low | Arm: U-arm, long | Handle / arm opening: 62° / 99° | Spindle supplied: M12 x 100.0L | Spindle adjustment: 143 mm | Weight: 1440 g | Material: Steel, zinc plated | |
| KJF-055-11F | Holding capacity: 550 kgf | Base: Flange, low | Arm: U-arm, short | Handle / arm opening: 48° / 92° | Spindle supplied: M16 x 130.0L | Spindle adjustment: 108 mm | Weight: 2400 g | Material: Steel, zinc plated | |
| KJF-055-11S | Holding capacity: 550 kgf | Base: Straight, low | Arm: U-arm, short | Handle / arm opening: 48° / 92° | Spindle supplied: M16 x 130.0L | Spindle adjustment: 108 mm | Weight: 2400 g | Material: Steel, zinc plated | |
| KJF-055-12F | Holding capacity: 550 kgf | Base: Flange, low | Arm: U-arm, long | Handle / arm opening: 48° / 92° | Spindle supplied: M16 x 130.0L | Spindle adjustment: 168 mm | Weight: 2560 g | Material: Steel, zinc plated | |
| KJF-055-12S | Holding capacity: 550 kgf | Base: Straight, low | Arm: U-arm, long | Handle / arm opening: 48° / 92° | Spindle supplied: M16 x 130.0L | Spindle adjustment: 168 mm | Weight: 2540 g | Material: Steel, zinc plated |
Toggle ClampsKJF
47 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
KJF Vertical Type Toggle Clamps (KJF-xxx-1 Series)
Available part numbers (47)
KJF-005-11F, KJF-005-11FS, KJF-009-11FS, KJF-010-11A, KJF-010-11AS, KJF-010-11F, KJF-010-11FS, KJF-010-11S, KJF-010-12A, KJF-010-12F + 37 more — see full table ↓
How to order
Send the KJF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
