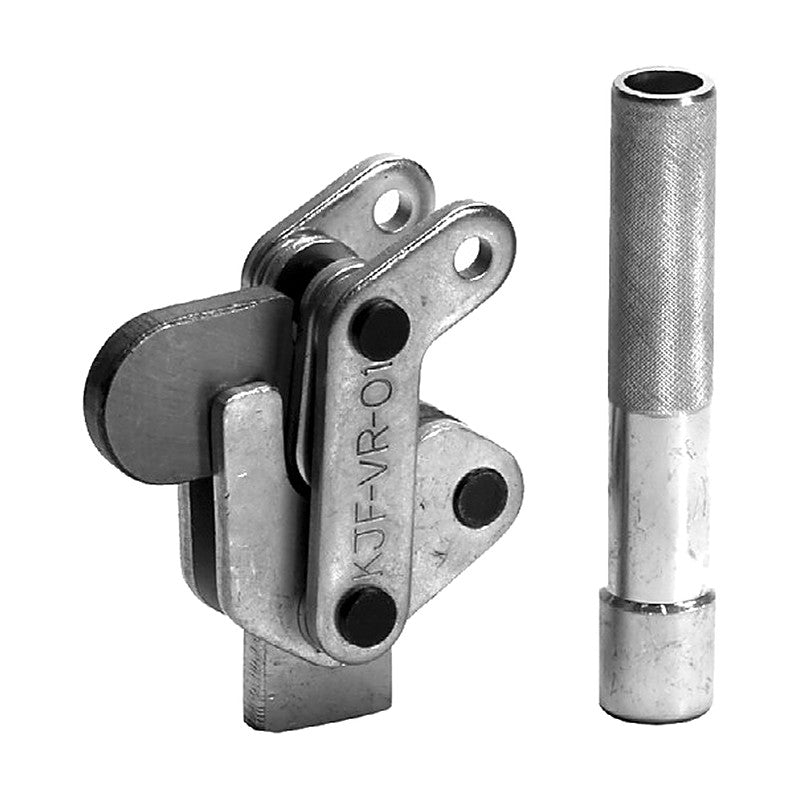

KJF-VR Heavy Duty Weldable Toggle Clamps
KJF-VR Heavy Duty Weldable Toggle Clamps
Heavy-duty toggle clamp body and handle assemblies intended to be welded to a user-made solid bar and base, with weldable or bolt-on base versions.
Key features
- Compact design for easy installation
- Pivot pin and bushing construction improves durability
- Supplied as main body and handle; the solid bar and base are made by the user
- The user must weld the main body, handle, solid bar and support properly before use
Specifications
| Holding capacity | 300-2,000 kgf |
|---|---|
| Base | Welding type or bolting type |
| KJF-VR-01 | Holding capacity: 500 kgf | Base: Weldable | Handle / arm opening: 116° / 187° | Weight: 556 g | |
| KJF-VR-11 | Holding capacity: 500 kgf | Base: Bolting | Handle / arm opening: 116° / 187° | Weight: 609 g | |
| KJF-VR-02 | Holding capacity: 1000 kgf | Base: Weldable | Handle / arm opening: 116° / 187° | Weight: 1330 g | |
| KJF-VR-12 | Holding capacity: 1000 kgf | Base: Bolting | Handle / arm opening: 116° / 187° | Weight: 1380 g | |
| KJF-VR-03 | Holding capacity: 2000 kgf | Base: Weldable | Handle / arm opening: 116° / 187° | Weight: 2440 g | |
| KJF-VR-13 | Holding capacity: 2000 kgf | Base: Weldable | Handle / arm opening: 116° / 187° | Weight: 2660 g | |
| KJF-VR-30SR | Holding capacity: 300 kgf | Base: Weldable | Handle / arm opening: 134° / 210° | Weight: 290 g |
Toggle ClampsKJF
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
KJF-VR Heavy Duty Weldable Toggle Clamps
Available part numbers (7)
KJF-VR-01, KJF-VR-11, KJF-VR-02, KJF-VR-12, KJF-VR-03, KJF-VR-13, KJF-VR-30SR
How to order
Send the KJF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
KJF
Toggle Clamps
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| KJF-VR-01 | Holding capacity: 500 kgf | Base: Weldable | Handle / arm opening: 116° / 187° | Weight: 556 g | ||
| KJF-VR-11 | Holding capacity: 500 kgf | Base: Bolting | Handle / arm opening: 116° / 187° | Weight: 609 g | ||
| KJF-VR-02 | Holding capacity: 1000 kgf | Base: Weldable | Handle / arm opening: 116° / 187° | Weight: 1330 g | ||
| KJF-VR-12 | Holding capacity: 1000 kgf | Base: Bolting | Handle / arm opening: 116° / 187° | Weight: 1380 g | ||
| KJF-VR-03 | Holding capacity: 2000 kgf | Base: Weldable | Handle / arm opening: 116° / 187° | Weight: 2440 g | ||
| KJF-VR-13 | Holding capacity: 2000 kgf | Base: Weldable | Handle / arm opening: 116° / 187° | Weight: 2660 g | ||
| KJF-VR-30SR | Holding capacity: 300 kgf | Base: Weldable | Handle / arm opening: 134° / 210° | Weight: 290 g |
