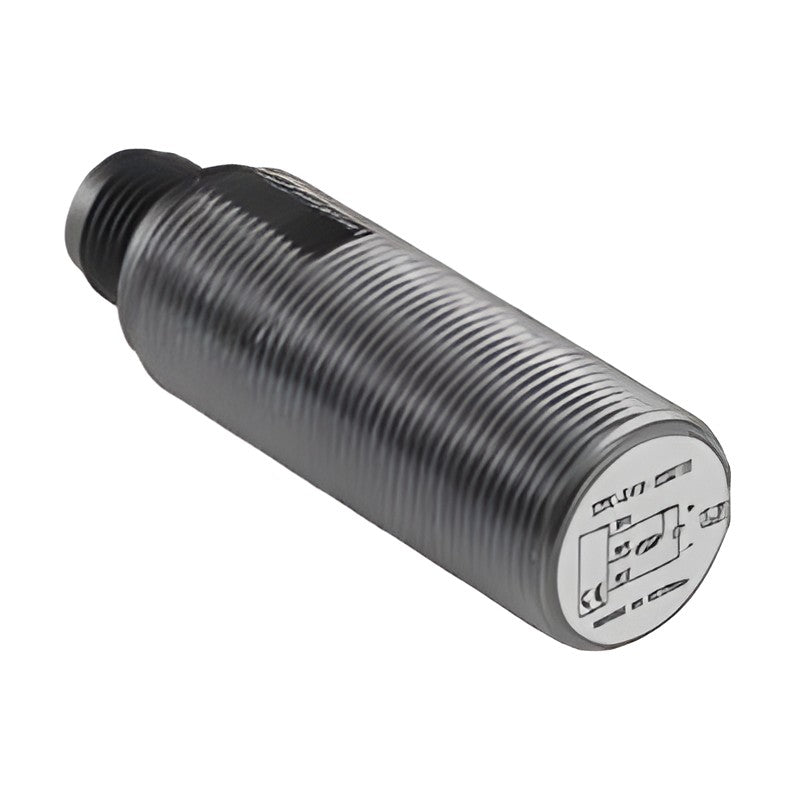

KOINO IPX AC 2-Wire Cylindrical Connector Inductive Proximity Sensors

KOINO IPX AC 2-Wire Cylindrical Connector Inductive Proximity Sensors

High-frequency oscillation inductive proximity sensors, AC 2-wire, cylindrical, connector type, in M12/M18/M30 sizes.

Key features

  • AC 2-wire type
  • Shielded and non-shielded versions
  • IP67 protection
  • CE certified

Specifications

Rated voltage 110 VAC
Supply voltage 90-250 VAC (50/60 Hz)
Control output current 10-200 mA
Current consumption 2.5 mA max.
Response frequency 20 Hz
Hysteresis 10% of sensing distance max.
Protection circuits Surge
Indicator Red LED
Protection IP67
Operating temperature -25 to +70 C
Certification CE (EN 60947-1 / 60947-5-2)
Connection Connector
IPX-A12-02A1R Diameter: M12 | Shielding: Shielded | Sensing distance: 2 mm | Output: NO
IPX-A12-04A1RN Diameter: M12 | Shielding: Non-shielded | Sensing distance: 4 mm | Output: NO
IPX-A18-05A1R Diameter: M18 | Shielding: Shielded | Sensing distance: 5 mm | Output: NO
IPX-A18-08A1RN Diameter: M18 | Shielding: Non-shielded | Sensing distance: 8 mm | Output: NO
IPX-A30-10A1R Diameter: M30 | Shielding: Shielded | Sensing distance: 10 mm | Output: NO
IPX-A30-15A1RN Diameter: M30 | Shielding: Non-shielded | Sensing distance: 15 mm | Output: NO
IPX-A12-02A2R Diameter: M12 | Shielding: Shielded | Sensing distance: 2 mm | Output: NC
IPX-A12-04A2RN Diameter: M12 | Shielding: Non-shielded | Sensing distance: 4 mm | Output: NC
IPX-A18-05A2R Diameter: M18 | Shielding: Shielded | Sensing distance: 5 mm | Output: NC
IPX-A18-08A2RN Diameter: M18 | Shielding: Non-shielded | Sensing distance: 8 mm | Output: NC
IPX-A30-10A2R Diameter: M30 | Shielding: Shielded | Sensing distance: 10 mm | Output: NC
IPX-A30-15A2RN Diameter: M30 | Shielding: Non-shielded | Sensing distance: 15 mm | Output: NC
Proximity SensorsKOINO
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOINO IPX AC 2-Wire Cylindrical Connector Inductive Proximity Sensors

Brand KOINO·Proximity Sensors

Available part numbers (12)

IPX-A12-02A1R, IPX-A12-04A1RN, IPX-A18-05A1R, IPX-A18-08A1RN, IPX-A30-10A1R, IPX-A30-15A1RN, IPX-A12-02A2R, IPX-A12-04A2RN, IPX-A18-05A2R, IPX-A18-08A2RN + 2 more — see full table ↓

How to order

Send the KOINO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
IPX-A12-02A1RDiameter: M12 | Shielding: Shielded | Sensing distance: 2 mm | Output: NO
IPX-A12-04A1RNDiameter: M12 | Shielding: Non-shielded | Sensing distance: 4 mm | Output: NO
IPX-A18-05A1RDiameter: M18 | Shielding: Shielded | Sensing distance: 5 mm | Output: NO
IPX-A18-08A1RNDiameter: M18 | Shielding: Non-shielded | Sensing distance: 8 mm | Output: NO
IPX-A30-10A1RDiameter: M30 | Shielding: Shielded | Sensing distance: 10 mm | Output: NO
IPX-A30-15A1RNDiameter: M30 | Shielding: Non-shielded | Sensing distance: 15 mm | Output: NO
IPX-A12-02A2RDiameter: M12 | Shielding: Shielded | Sensing distance: 2 mm | Output: NC
IPX-A12-04A2RNDiameter: M12 | Shielding: Non-shielded | Sensing distance: 4 mm | Output: NC
IPX-A18-05A2RDiameter: M18 | Shielding: Shielded | Sensing distance: 5 mm | Output: NC
IPX-A18-08A2RNDiameter: M18 | Shielding: Non-shielded | Sensing distance: 8 mm | Output: NC
IPX-A30-10A2RDiameter: M30 | Shielding: Shielded | Sensing distance: 10 mm | Output: NC
IPX-A30-15A2RNDiameter: M30 | Shielding: Non-shielded | Sensing distance: 15 mm | Output: NC
