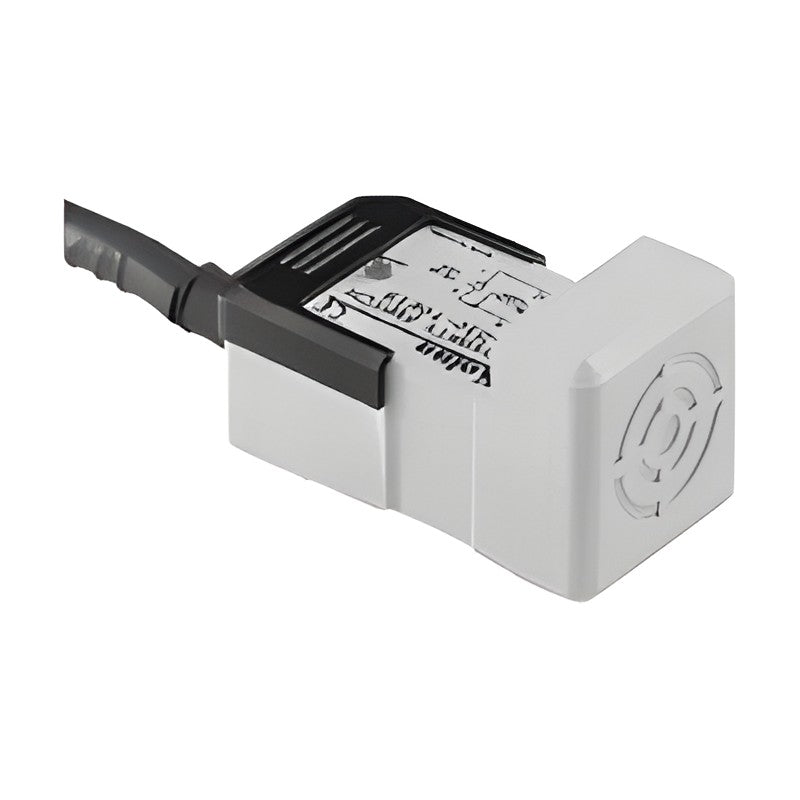

KOINO IPX AC 2-Wire Rectangular Cable Inductive Proximity Sensors

KOINO IPX AC 2-Wire Rectangular Cable Inductive Proximity Sensors

High-frequency oscillation inductive proximity sensors, AC 2-wire, rectangular, cable type, in 25/30/40 mm square sizes.

Key features

  • AC 2-wire type
  • Rectangular housings
  • IP67 protection
  • CE certified

Specifications

Rated voltage 110 VAC
Supply voltage 90-250 VAC (50/60 Hz)
Control output current 10-200 mA
Current consumption 2.5 mA max.
Response frequency 20 Hz
Hysteresis 10% of sensing distance max.
Protection circuits Surge
Indicator Red LED
Protection IP67
Operating temperature -25 to +70 C
Certification CE (EN 60947-1 / 60947-5-2)
Connection Cable, 2 m
IPX-A25-05A1S Size: 25 mm square | Sensing distance: 5 mm | Output: NO
IPX-A30-10A1S Size: 30 mm square | Sensing distance: 10 mm | Output: NO
IPX-A40-20A1S Size: 40 mm square | Sensing distance: 20 mm | Output: NO
IPX-A25-05A2S Size: 25 mm square | Sensing distance: 5 mm | Output: NC
IPX-A30-10A2S Size: 30 mm square | Sensing distance: 10 mm | Output: NC
IPX-A40-20A2S Size: 40 mm square | Sensing distance: 20 mm | Output: NC
Proximity SensorsKOINO
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOINO IPX AC 2-Wire Rectangular Cable Inductive Proximity Sensors

Brand KOINO·Proximity Sensors

Available part numbers (6)

IPX-A25-05A1S, IPX-A30-10A1S, IPX-A40-20A1S, IPX-A25-05A2S, IPX-A30-10A2S, IPX-A40-20A2S

How to order

Send the KOINO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
IPX-A25-05A1SSize: 25 mm square | Sensing distance: 5 mm | Output: NO
IPX-A30-10A1SSize: 30 mm square | Sensing distance: 10 mm | Output: NO
IPX-A40-20A1SSize: 40 mm square | Sensing distance: 20 mm | Output: NO
IPX-A25-05A2SSize: 25 mm square | Sensing distance: 5 mm | Output: NC
IPX-A30-10A2SSize: 30 mm square | Sensing distance: 10 mm | Output: NC
IPX-A40-20A2SSize: 40 mm square | Sensing distance: 20 mm | Output: NC
