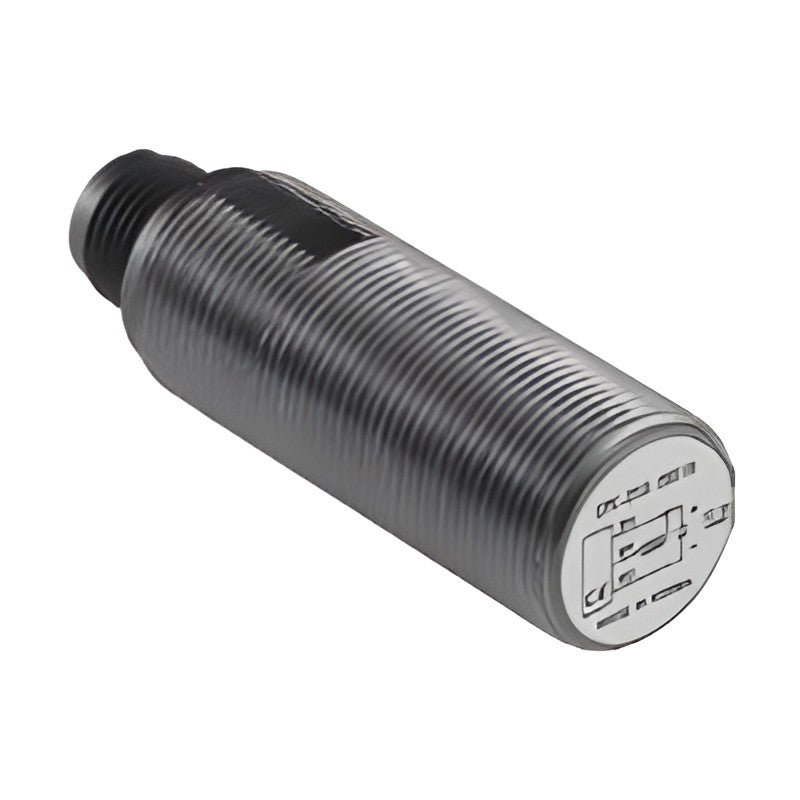

KOINO IPX DC 3-Wire Cylindrical Connector Inductive Proximity Sensors

KOINO IPX DC 3-Wire Cylindrical Connector Inductive Proximity Sensors

High-frequency oscillation inductive proximity sensors, DC 3-wire, cylindrical, connector type, in M12/M18/M30 sizes.

Key features

  • DC 3-wire type
  • Shielded and non-shielded versions
  • IP67 protection
  • CE certified

Specifications

Rated voltage 12-24 VDC
Supply voltage 10-30 VDC
Control output current 200 mA max.
Current consumption 10 mA max.
Hysteresis 10% of sensing distance max.
Protection circuits Surge, overcurrent, reverse polarity
Indicator Red LED
Protection IP67
Operating temperature -25 to +70 C
Certification CE (EN 55011 / 60947-5-2)
Connection Connector
Housing Brass, nickel plated; sensing face PBT
IPX-D12-02E1R Diameter: M12 | Shielding: Shielded | Sensing distance: 2 mm | Output: NPN NO
IPX-D12-04E1RN Diameter: M12 | Shielding: Non-shielded | Sensing distance: 4 mm | Output: NPN NO
IPX-D18-05E1R Diameter: M18 | Shielding: Shielded | Sensing distance: 5 mm | Output: NPN NO
IPX-D18-08E1RN Diameter: M18 | Shielding: Non-shielded | Sensing distance: 8 mm | Output: NPN NO
IPX-D30-10E1R Diameter: M30 | Shielding: Shielded | Sensing distance: 10 mm | Output: NPN NO
IPX-D30-15E1RN Diameter: M30 | Shielding: Non-shielded | Sensing distance: 15 mm | Output: NPN NO
IPX-D12-02E2R Diameter: M12 | Shielding: Shielded | Sensing distance: 2 mm | Output: NPN NC
IPX-D12-04E2RN Diameter: M12 | Shielding: Non-shielded | Sensing distance: 4 mm | Output: NPN NC
IPX-D18-05E2R Diameter: M18 | Shielding: Shielded | Sensing distance: 5 mm | Output: NPN NC
IPX-D18-08E2RN Diameter: M18 | Shielding: Non-shielded | Sensing distance: 8 mm | Output: NPN NC
IPX-D30-10E2R Diameter: M30 | Shielding: Shielded | Sensing distance: 10 mm | Output: NPN NC
IPX-D30-15E2RN Diameter: M30 | Shielding: Non-shielded | Sensing distance: 15 mm | Output: NPN NC
IPX-D12-02E3R Diameter: M12 | Shielding: Shielded | Sensing distance: 2 mm | Output: PNP NO
IPX-D12-04E3RN Diameter: M12 | Shielding: Non-shielded | Sensing distance: 4 mm | Output: PNP NO
IPX-D18-05E3R Diameter: M18 | Shielding: Shielded | Sensing distance: 5 mm | Output: PNP NO
IPX-D18-08E3RN Diameter: M18 | Shielding: Non-shielded | Sensing distance: 8 mm | Output: PNP NO
IPX-D30-10E3R Diameter: M30 | Shielding: Shielded | Sensing distance: 10 mm | Output: PNP NO
IPX-D30-15E3RN Diameter: M30 | Shielding: Non-shielded | Sensing distance: 15 mm | Output: PNP NO
IPX-D12-02E4R Diameter: M12 | Shielding: Shielded | Sensing distance: 2 mm | Output: PNP NC
IPX-D12-04E4RN Diameter: M12 | Shielding: Non-shielded | Sensing distance: 4 mm | Output: PNP NC
IPX-D18-05E4R Diameter: M18 | Shielding: Shielded | Sensing distance: 5 mm | Output: PNP NC
IPX-D18-08E4RN Diameter: M18 | Shielding: Non-shielded | Sensing distance: 8 mm | Output: PNP NC
IPX-D30-10E4R Diameter: M30 | Shielding: Shielded | Sensing distance: 10 mm | Output: PNP NC
IPX-D30-15E4RN Diameter: M30 | Shielding: Non-shielded | Sensing distance: 15 mm | Output: PNP NC
