• KOINO IPX DC 3-Wire Cylindrical Wire-Connector Inductive Proximity Sensors
1 1

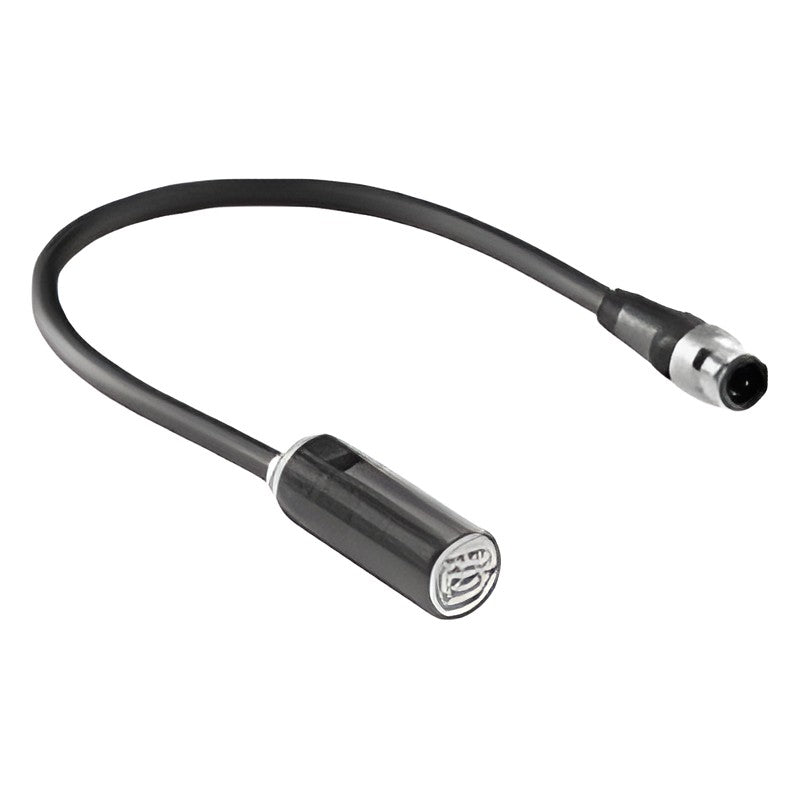

KOINO IPX DC 3-Wire Cylindrical Wire-Connector Inductive Proximity Sensors

KOINO IPX DC 3-Wire Cylindrical Wire-Connector Inductive Proximity Sensors

High-frequency oscillation inductive proximity sensors, DC 3-wire, cylindrical, wire connector type, in M12/M18/M30 sizes.

Key features

  • DC 3-wire type
  • Shielded and non-shielded versions
  • IP67 protection
  • CE certified

Specifications

Rated voltage 12-24 VDC
Supply voltage 10-30 VDC
Control output current 200 mA max.
Current consumption 10 mA max.
Hysteresis 10% of sensing distance max.
Protection circuits Surge, overcurrent, reverse polarity
Indicator Red LED
Protection IP67
Operating temperature -25 to +70 C
Certification CE (EN 55011 / 60947-5-2)
Connection Wire with connector
Housing Brass, nickel plated; sensing face PBT
IPX-D12-02E1W Diameter: M12 | Shielding: Shielded | Sensing distance: 2 mm | Output: NPN NO
IPX-D12-04E1WN Diameter: M12 | Shielding: Non-shielded | Sensing distance: 4 mm | Output: NPN NO
IPX-D18-05E1W Diameter: M18 | Shielding: Shielded | Sensing distance: 5 mm | Output: NPN NO
IPX-D18-08E1WN Diameter: M18 | Shielding: Non-shielded | Sensing distance: 8 mm | Output: NPN NO
IPX-D30-10E1W Diameter: M30 | Shielding: Shielded | Sensing distance: 10 mm | Output: NPN NO
IPX-D30-15E1WN Diameter: M30 | Shielding: Non-shielded | Sensing distance: 15 mm | Output: NPN NO
IPX-D12-02E2W Diameter: M12 | Shielding: Shielded | Sensing distance: 2 mm | Output: NPN NC
IPX-D12-04E2WN Diameter: M12 | Shielding: Non-shielded | Sensing distance: 4 mm | Output: NPN NC
IPX-D18-05E2W Diameter: M18 | Shielding: Shielded | Sensing distance: 5 mm | Output: NPN NC
IPX-D18-08E2WN Diameter: M18 | Shielding: Non-shielded | Sensing distance: 8 mm | Output: NPN NC
IPX-D30-10E2W Diameter: M30 | Shielding: Shielded | Sensing distance: 10 mm | Output: NPN NC
IPX-D30-15E2WN Diameter: M30 | Shielding: Non-shielded | Sensing distance: 15 mm | Output: NPN NC
IPX-D12-02E3W Diameter: M12 | Shielding: Shielded | Sensing distance: 2 mm | Output: PNP NO
IPX-D12-04E3WN Diameter: M12 | Shielding: Non-shielded | Sensing distance: 4 mm | Output: PNP NO
IPX-D18-05E3W Diameter: M18 | Shielding: Shielded | Sensing distance: 5 mm | Output: PNP NO
IPX-D18-08E3WN Diameter: M18 | Shielding: Non-shielded | Sensing distance: 8 mm | Output: PNP NO
IPX-D30-10E3W Diameter: M30 | Shielding: Shielded | Sensing distance: 10 mm | Output: PNP NO
IPX-D30-15E3WN Diameter: M30 | Shielding: Non-shielded | Sensing distance: 15 mm | Output: PNP NO
IPX-D12-02E4W Diameter: M12 | Shielding: Shielded | Sensing distance: 2 mm | Output: PNP NC
IPX-D12-04E4WN Diameter: M12 | Shielding: Non-shielded | Sensing distance: 4 mm | Output: PNP NC
IPX-D18-05E4W Diameter: M18 | Shielding: Shielded | Sensing distance: 5 mm | Output: PNP NC
IPX-D18-08E4WN Diameter: M18 | Shielding: Non-shielded | Sensing distance: 8 mm | Output: PNP NC
IPX-D30-10E4W Diameter: M30 | Shielding: Shielded | Sensing distance: 10 mm | Output: PNP NC
IPX-D30-15E4WN Diameter: M30 | Shielding: Non-shielded | Sensing distance: 15 mm | Output: PNP NC
Proximity SensorsKOINO
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOINO IPX DC 3-Wire Cylindrical Wire-Connector Inductive Proximity Sensors

Brand KOINO·Proximity Sensors

Available part numbers (24)

IPX-D12-02E1W, IPX-D12-04E1WN, IPX-D18-05E1W, IPX-D18-08E1WN, IPX-D30-10E1W, IPX-D30-15E1WN, IPX-D12-02E2W, IPX-D12-04E2WN, IPX-D18-05E2W, IPX-D18-08E2WN + 14 more — see full table ↓

How to order

Send the KOINO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
IPX-D12-02E1WDiameter: M12 | Shielding: Shielded | Sensing distance: 2 mm | Output: NPN NO
IPX-D12-04E1WNDiameter: M12 | Shielding: Non-shielded | Sensing distance: 4 mm | Output: NPN NO
IPX-D18-05E1WDiameter: M18 | Shielding: Shielded | Sensing distance: 5 mm | Output: NPN NO
IPX-D18-08E1WNDiameter: M18 | Shielding: Non-shielded | Sensing distance: 8 mm | Output: NPN NO
IPX-D30-10E1WDiameter: M30 | Shielding: Shielded | Sensing distance: 10 mm | Output: NPN NO
IPX-D30-15E1WNDiameter: M30 | Shielding: Non-shielded | Sensing distance: 15 mm | Output: NPN NO
IPX-D12-02E2WDiameter: M12 | Shielding: Shielded | Sensing distance: 2 mm | Output: NPN NC
IPX-D12-04E2WNDiameter: M12 | Shielding: Non-shielded | Sensing distance: 4 mm | Output: NPN NC
IPX-D18-05E2WDiameter: M18 | Shielding: Shielded | Sensing distance: 5 mm | Output: NPN NC
IPX-D18-08E2WNDiameter: M18 | Shielding: Non-shielded | Sensing distance: 8 mm | Output: NPN NC
IPX-D30-10E2WDiameter: M30 | Shielding: Shielded | Sensing distance: 10 mm | Output: NPN NC
IPX-D30-15E2WNDiameter: M30 | Shielding: Non-shielded | Sensing distance: 15 mm | Output: NPN NC
IPX-D12-02E3WDiameter: M12 | Shielding: Shielded | Sensing distance: 2 mm | Output: PNP NO
IPX-D12-04E3WNDiameter: M12 | Shielding: Non-shielded | Sensing distance: 4 mm | Output: PNP NO
IPX-D18-05E3WDiameter: M18 | Shielding: Shielded | Sensing distance: 5 mm | Output: PNP NO
IPX-D18-08E3WNDiameter: M18 | Shielding: Non-shielded | Sensing distance: 8 mm | Output: PNP NO
IPX-D30-10E3WDiameter: M30 | Shielding: Shielded | Sensing distance: 10 mm | Output: PNP NO
IPX-D30-15E3WNDiameter: M30 | Shielding: Non-shielded | Sensing distance: 15 mm | Output: PNP NO
IPX-D12-02E4WDiameter: M12 | Shielding: Shielded | Sensing distance: 2 mm | Output: PNP NC
IPX-D12-04E4WNDiameter: M12 | Shielding: Non-shielded | Sensing distance: 4 mm | Output: PNP NC
IPX-D18-05E4WDiameter: M18 | Shielding: Shielded | Sensing distance: 5 mm | Output: PNP NC
IPX-D18-08E4WNDiameter: M18 | Shielding: Non-shielded | Sensing distance: 8 mm | Output: PNP NC
IPX-D30-10E4WDiameter: M30 | Shielding: Shielded | Sensing distance: 10 mm | Output: PNP NC
IPX-D30-15E4WNDiameter: M30 | Shielding: Non-shielded | Sensing distance: 15 mm | Output: PNP NC
