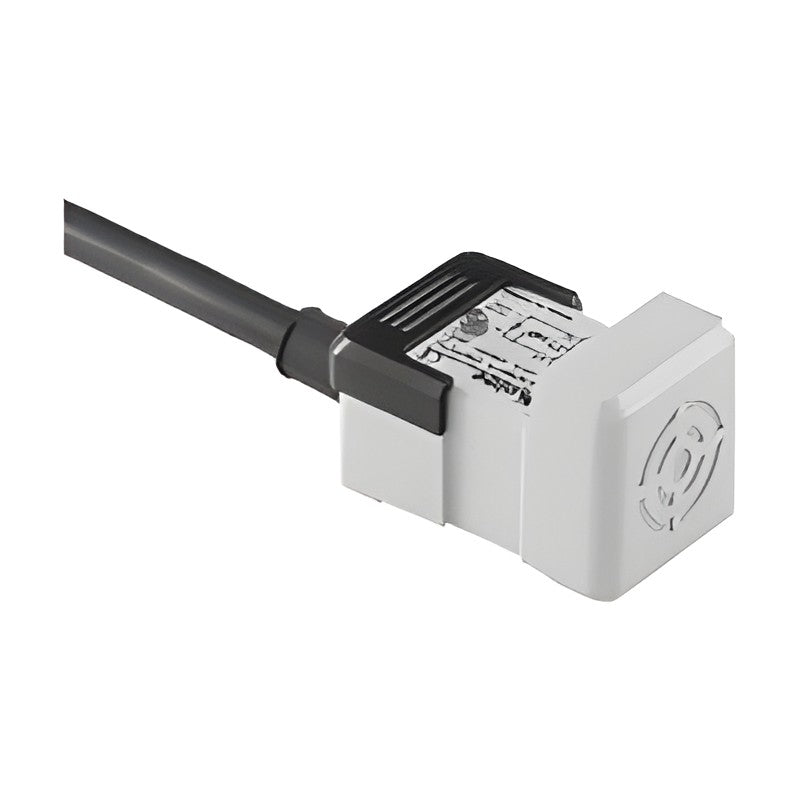

KOINO IPX DC 3-Wire Rectangular Cable Inductive Proximity Sensors

KOINO IPX DC 3-Wire Rectangular Cable Inductive Proximity Sensors

High-frequency oscillation inductive proximity sensors, DC 3-wire, rectangular, cable type, in 17/25/30/40 mm square sizes.

Key features

  • DC 3-wire type
  • Rectangular housings
  • IP67 protection
  • CE certified

Specifications

Rated voltage 12-24 VDC
Supply voltage 10-30 VDC
Control output current 200 mA max.
Current consumption 10 mA max.
Hysteresis 10% of sensing distance max.
Protection circuits Surge, overcurrent, reverse polarity
Indicator Red LED
Protection IP67
Operating temperature -25 to +70 C
Certification CE (EN 55011 / 60947-5-2)
Connection Cable, 2 m
Housing PBT
IPX-D17-05E1S Size: 17 mm square | Sensing distance: 5 mm | Output: NPN NO
IPX-D25-05E1S Size: 25 mm square | Sensing distance: 5 mm | Output: NPN NO
IPX-D30-10E1S Size: 30 mm square | Sensing distance: 10 mm | Output: NPN NO
IPX-D40-20E1S Size: 40 mm square | Sensing distance: 20 mm | Output: NPN NO
IPX-D17-05E2S Size: 17 mm square | Sensing distance: 5 mm | Output: NPN NC
IPX-D25-05E2S Size: 25 mm square | Sensing distance: 5 mm | Output: NPN NC
IPX-D30-10E2S Size: 30 mm square | Sensing distance: 10 mm | Output: NPN NC
IPX-D40-20E2S Size: 40 mm square | Sensing distance: 20 mm | Output: NPN NC
IPX-D17-05E3S Size: 17 mm square | Sensing distance: 5 mm | Output: PNP NO
IPX-D25-05E3S Size: 25 mm square | Sensing distance: 5 mm | Output: PNP NO
IPX-D30-10E3S Size: 30 mm square | Sensing distance: 10 mm | Output: PNP NO
IPX-D40-20E3S Size: 40 mm square | Sensing distance: 20 mm | Output: PNP NO
IPX-D17-05E4S Size: 17 mm square | Sensing distance: 5 mm | Output: PNP NC
IPX-D25-05E4S Size: 25 mm square | Sensing distance: 5 mm | Output: PNP NC
IPX-D30-10E4S Size: 30 mm square | Sensing distance: 10 mm | Output: PNP NC
IPX-D40-20E4S Size: 40 mm square | Sensing distance: 20 mm | Output: PNP NC
Proximity SensorsKOINO
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOINO IPX DC 3-Wire Rectangular Cable Inductive Proximity Sensors

Brand KOINO·Proximity Sensors

Available part numbers (16)

IPX-D17-05E1S, IPX-D25-05E1S, IPX-D30-10E1S, IPX-D40-20E1S, IPX-D17-05E2S, IPX-D25-05E2S, IPX-D30-10E2S, IPX-D40-20E2S, IPX-D17-05E3S, IPX-D25-05E3S + 6 more — see full table ↓

How to order

Send the KOINO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
IPX-D17-05E1SSize: 17 mm square | Sensing distance: 5 mm | Output: NPN NO
IPX-D25-05E1SSize: 25 mm square | Sensing distance: 5 mm | Output: NPN NO
IPX-D30-10E1SSize: 30 mm square | Sensing distance: 10 mm | Output: NPN NO
IPX-D40-20E1SSize: 40 mm square | Sensing distance: 20 mm | Output: NPN NO
IPX-D17-05E2SSize: 17 mm square | Sensing distance: 5 mm | Output: NPN NC
IPX-D25-05E2SSize: 25 mm square | Sensing distance: 5 mm | Output: NPN NC
IPX-D30-10E2SSize: 30 mm square | Sensing distance: 10 mm | Output: NPN NC
IPX-D40-20E2SSize: 40 mm square | Sensing distance: 20 mm | Output: NPN NC
IPX-D17-05E3SSize: 17 mm square | Sensing distance: 5 mm | Output: PNP NO
IPX-D25-05E3SSize: 25 mm square | Sensing distance: 5 mm | Output: PNP NO
IPX-D30-10E3SSize: 30 mm square | Sensing distance: 10 mm | Output: PNP NO
IPX-D40-20E3SSize: 40 mm square | Sensing distance: 20 mm | Output: PNP NO
IPX-D17-05E4SSize: 17 mm square | Sensing distance: 5 mm | Output: PNP NC
IPX-D25-05E4SSize: 25 mm square | Sensing distance: 5 mm | Output: PNP NC
IPX-D30-10E4SSize: 30 mm square | Sensing distance: 10 mm | Output: PNP NC
IPX-D40-20E4SSize: 40 mm square | Sensing distance: 20 mm | Output: PNP NC
