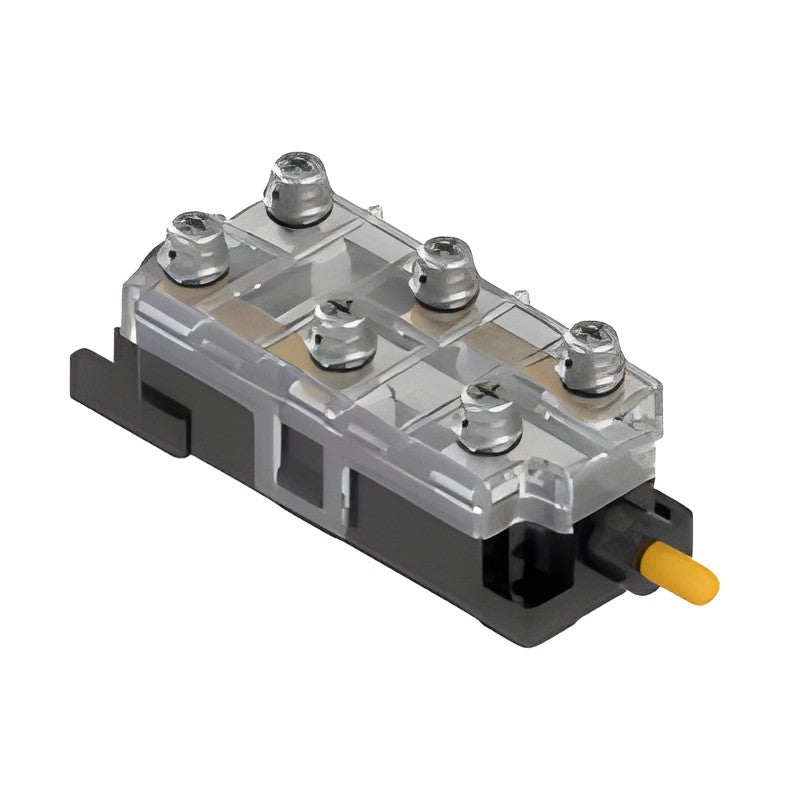

KOINO KH-9111 Built-in Limit Switch for Subway Doors

Built-in limit switch with plunger actuator designed for subway train door applications.

Key features

Dedicated switch for subway doors
KC certified
Fixed contact Ag 99.9%, movable contact Ag 99.9% / Au plated

Specifications

Contact rating (resistive)	24 VDC 10 A, 100 VDC 2.2 A, 200 VDC 0.9 A
Contact resistance	30 mOhm max. (initial)
Insulation resistance	100 MOhm min. (500 VDC)
Electrical life	300,000 operations min. (20/min)
Mechanical life	300,000 operations min. (30/min)
Vibration	10-55 Hz, 1.5 mm amplitude, X/Y/Z 1 min
Operating temperature	-40 to +55 C (no icing)
Operating humidity	45 to 85 %RH
Dielectric strength	1200 VAC (live parts), 2000 VAC (non-live parts) 1 min
Weight	Approx. 84 g
Certification	KC

KH-9111

Rated: 24 VDC 10 A

Limit SwitchesKOINO

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOINO KH-9111 Built-in Limit Switch for Subway Doors

Brand KOINO·Limit Switches

Available part numbers (1)

KH-9111

How to order

Send the KOINO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
