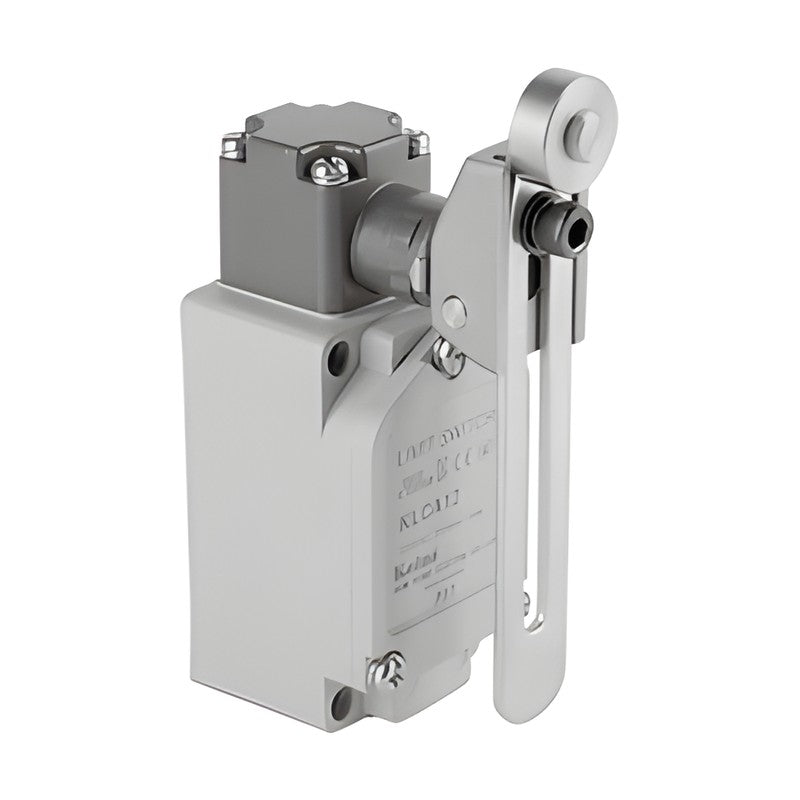

KOINO KLCA12 Adjustable Roller Lever Limit Switch

KOINO KLCA12 Adjustable Roller Lever Limit Switch

Heavy-duty limit switch with adjustable-length roller lever (0-64 mm).

Key features

  • KC, CE, UL/cUL and CCC certified
  • Rugged aluminium die-cast housing
  • Heat, oil and dust resistant (IP67)
  • Double-break 2-circuit basic switch built in
  • LED or neon operation indicator versions

Specifications

Contact Double-break 2-circuit (1a1b), silver alloy
Rated Current 10 A at 250 VAC / 125 VAC (resistive, UL)
Insulation Resistance 100 MΩ min. (500 VDC)
Mechanical Life 15,000,000 operations (overtravel type); plunger types 5,000,000
Electrical Life 750,000 operations (250 VAC 10 A resistive)
Operating Temperature -15 to +80 °C (no icing)
Housing Aluminium alloy die-cast
Indicator Options -LE neon 110 VAC, -LF neon 220 VAC, -LD LED 12-125 V AC/DC (made to order)
Certification KC, UL/cUL (UL508), CE, CCC
Protection IP67
Lever Adjustment 0-64 mm
KLCA12 Operating Angle: 75° | OF max.: 290 g | RF max.: 25 g | PT: 25±5° | OT min.: 45° | MD max.: 12°
KLCA12-2 Operating Angle: 90° (overtravel) | OF max.: 290 g | RF max.: 25 g | PT: 25±5° | OT min.: 60° | MD max.: 10°
KLCA12-LE Operating Angle: 75° | Indicator: Neon lamp
KLCA12-2LE Operating Angle: 90° | Indicator: Neon lamp
KLCA12-LD Operating Angle: 75° | Indicator: LED
KLCA12-2LD Operating Angle: 90° | Indicator: LED
Limit SwitchesKOINO
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOINO KLCA12 Adjustable Roller Lever Limit Switch

Brand KOINO·Limit Switches

Available part numbers (6)

KLCA12, KLCA12-2, KLCA12-LE, KLCA12-2LE, KLCA12-LD, KLCA12-2LD

How to order

Send the KOINO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KLCA12Operating Angle: 75° | OF max.: 290 g | RF max.: 25 g | PT: 25±5° | OT min.: 45° | MD max.: 12°
KLCA12-2Operating Angle: 90° (overtravel) | OF max.: 290 g | RF max.: 25 g | PT: 25±5° | OT min.: 60° | MD max.: 10°
KLCA12-LEOperating Angle: 75° | Indicator: Neon lamp
KLCA12-2LEOperating Angle: 90° | Indicator: Neon lamp
KLCA12-LDOperating Angle: 75° | Indicator: LED
KLCA12-2LDOperating Angle: 90° | Indicator: LED
