• KOINO KLCA32 Fork Roller Lever Lock Limit Switch
1 1

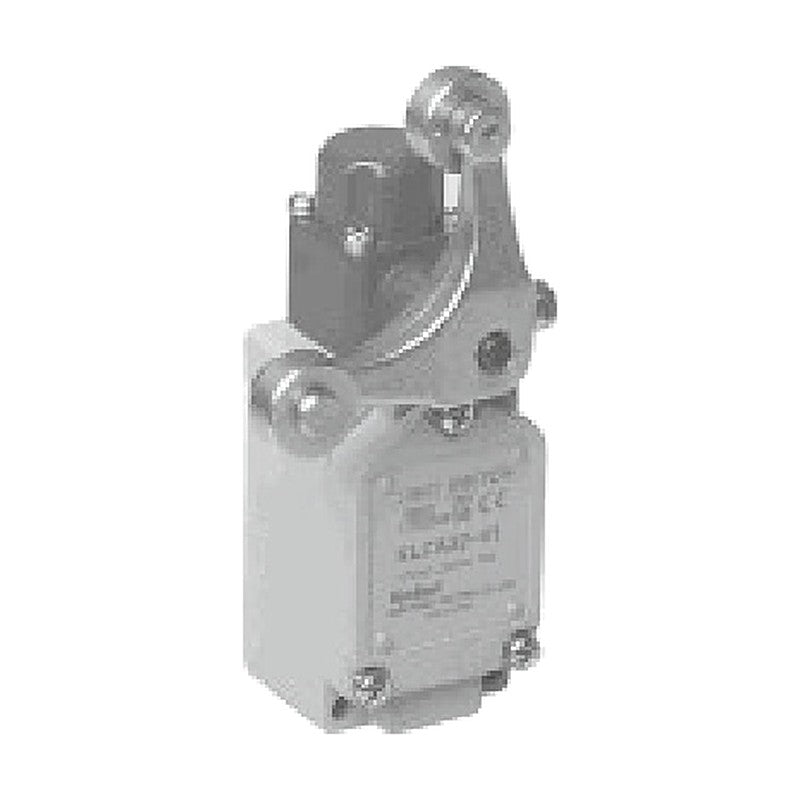

KOINO KLCA32 Fork Roller Lever Lock Limit Switch

KOINO KLCA32 Fork Roller Lever Lock Limit Switch

Heavy-duty limit switch with fork-type roller lever that maintains its position after operation (lock type).

Key features

  • KC, CE, UL/cUL and CCC certified
  • Rugged aluminium die-cast housing
  • Heat, oil and dust resistant (IP67)
  • Double-break 2-circuit basic switch built in
  • LED or neon operation indicator versions

Specifications

Contact Double-break 2-circuit (1a1b), silver alloy
Rated Current 10 A at 250 VAC / 125 VAC (resistive, UL)
Insulation Resistance 100 MΩ min. (500 VDC)
Mechanical Life 2,000,000 operations
Electrical Life 750,000 operations (250 VAC 10 A resistive)
Operating Temperature -15 to +80 °C (no icing)
Housing Aluminium alloy die-cast
Indicator Options -LE neon 110 VAC, -LF neon 220 VAC, -LD LED 12-125 V AC/DC (made to order)
Certification KC, UL/cUL (UL508), CE, CCC
Protection IP67
OF max. 1,220 g
PT 50°
KLCA32-41 Lever: Fork lock type 41
KLCA32-42 Lever: Fork lock type 42
KLCA32-43 Lever: Fork lock type 43
KLCA32-44 Lever: Fork lock type 44
KLCA32-LE Indicator: Neon lamp
KLCA32-LD Indicator: LED
Limit SwitchesKOINO
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOINO KLCA32 Fork Roller Lever Lock Limit Switch

Brand KOINO·Limit Switches

Available part numbers (6)

KLCA32-41, KLCA32-42, KLCA32-43, KLCA32-44, KLCA32-LE, KLCA32-LD

How to order

Send the KOINO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KLCA32-41Lever: Fork lock type 41
KLCA32-42Lever: Fork lock type 42
KLCA32-43Lever: Fork lock type 43
KLCA32-44Lever: Fork lock type 44
KLCA32-LEIndicator: Neon lamp
KLCA32-LDIndicator: LED
