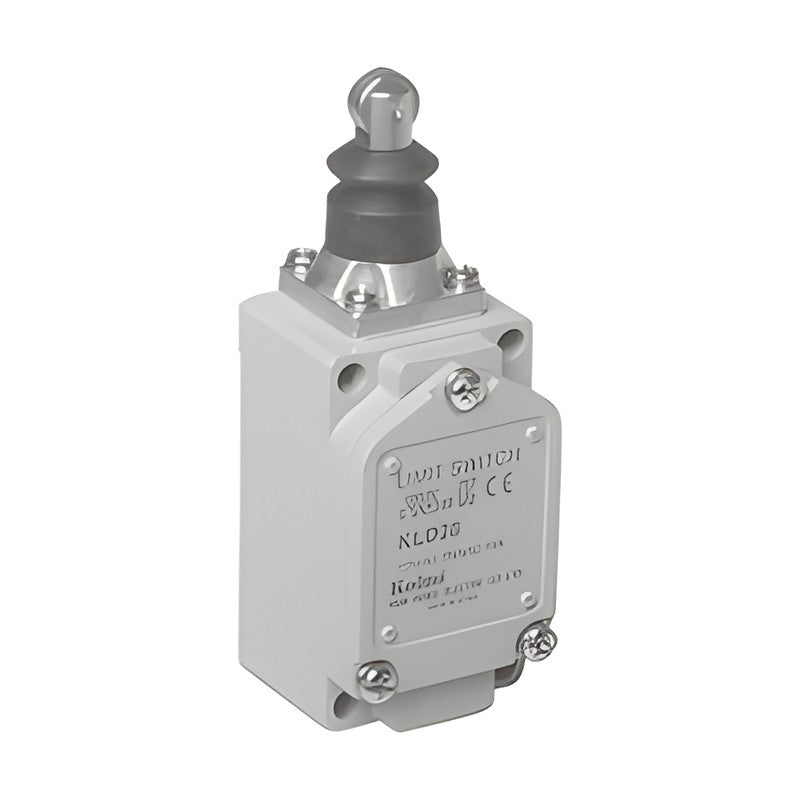

KOINO KLD28 Sealed Top Roller Plunger Limit Switch

Heavy-duty limit switch with sealed top roller plunger actuator.

Key features

KC, CE, UL/cUL and CCC certified
Rugged aluminium die-cast housing
Heat, oil and dust resistant (IP67)
Double-break 2-circuit basic switch built in
LED or neon operation indicator versions

Specifications

Contact	Double-break 2-circuit (1a1b), silver alloy
Rated Current	10 A at 250 VAC / 125 VAC (resistive, UL)
Insulation Resistance	100 MΩ min. (500 VDC)
Mechanical Life	15,000,000 operations (overtravel type); plunger types 5,000,000
Electrical Life	750,000 operations (250 VAC 10 A resistive)
Operating Temperature	-15 to +80 °C (no icing)
Housing	Aluminium alloy die-cast
Indicator Options	-LE neon 110 VAC, -LF neon 220 VAC, -LD LED 12-125 V AC/DC (made to order)
Certification	KC, UL/cUL (UL508), CE, CCC
Protection	IP67
OF max.	1,700 g
RF min.	450 g

KLD28		Indicator: None
KLD28-LE		Indicator: Neon lamp (made to order)
KLD28-LD		Indicator: LED (made to order)

Limit SwitchesKOINO

3 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOINO KLD28 Sealed Top Roller Plunger Limit Switch

Brand KOINO·Limit Switches

Available part numbers (3)

KLD28, KLD28-LE, KLD28-LD
