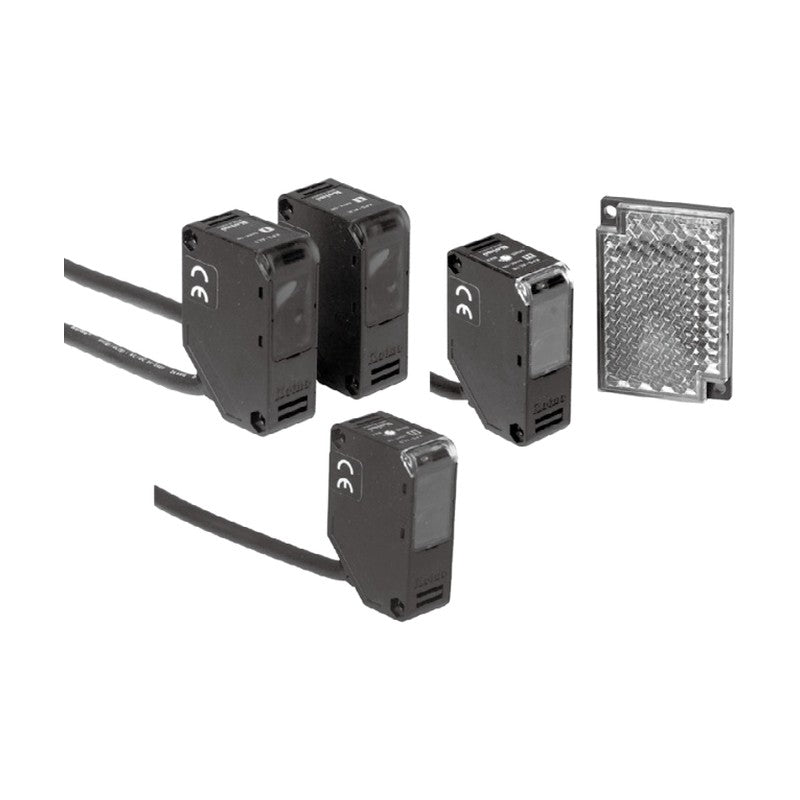

KOINO KPS-AL Series Long-Distance Photoelectric Sensors with Relay Output

KOINO KPS-AL Series Long-Distance Photoelectric Sensors with Relay Output

Compact power-supply-built-in photoelectric sensors with AC/DC 24-240 V supply and relay output for long-distance detection.

Key features

  • Compact 18 (W) x 52 (H) x 34 (D) mm housing with built-in power supply
  • Long sensing distance
  • Polarizing filter version for stable detection (KPS-ALTRP)
  • IP65 water-resistant construction
  • CE approved

Specifications

Supply voltage AC/DC 24-240 V
Response time 20 ms max.
Output Relay contact 1C, 30 VDC 2 A, 125 VAC 0.6 A
Protection IP65
Material PC (black)
Cable Dia. 6.1 mm, 1.5 m
Certification CE (EN 55011, EN 60947-5-2)
KPS-AL Sensing method: Through-beam (emitter + receiver set) | Sensing distance: 10 m
KPS-ALT Sensing method: Through-beam emitter | Sensing distance: 10 m | Weight: Approx. 132 g
KPS-ALR Sensing method: Through-beam receiver | Sensing distance: 10 m
KPS-ALTR Sensing method: Retro-reflective | Sensing distance: 5 m
KPS-ALTRP Sensing method: Polarized retro-reflective | Sensing distance: 3 m
KPS-ALD Sensing method: Diffuse reflective | Sensing distance: 1 m
Photoelectric SensorsKOINO
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOINO KPS-AL Series Long-Distance Photoelectric Sensors with Relay Output

Brand KOINO·Photoelectric Sensors

Available part numbers (6)

KPS-AL, KPS-ALT, KPS-ALR, KPS-ALTR, KPS-ALTRP, KPS-ALD

How to order

Send the KOINO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KPS-ALSensing method: Through-beam (emitter + receiver set) | Sensing distance: 10 m
KPS-ALTSensing method: Through-beam emitter | Sensing distance: 10 m | Weight: Approx. 132 g
KPS-ALRSensing method: Through-beam receiver | Sensing distance: 10 m
KPS-ALTRSensing method: Retro-reflective | Sensing distance: 5 m
KPS-ALTRPSensing method: Polarized retro-reflective | Sensing distance: 3 m
KPS-ALDSensing method: Diffuse reflective | Sensing distance: 1 m
