KOINO KPS-AP Series AC Photoelectric Sensors (Discontinued)

KOINO KPS-AP Series AC Photoelectric Sensors (Discontinued)

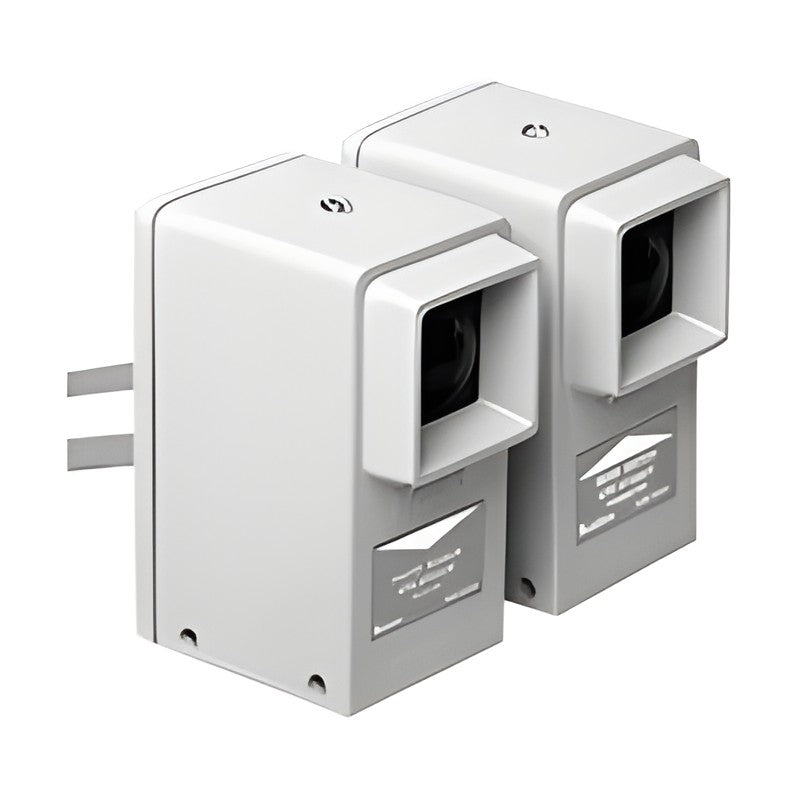

Vertical die-cast photoelectric sensors for 110/220 VAC with relay output in through-beam, retro-reflective and diffuse types.

Key features

  • Through-beam type with separate emitter and receiver for wide, long-distance detection
  • Retro-reflective and diffuse types with emitter and receiver in one housing
  • Long-range versions produced on order

Specifications

Supply voltage 110/220 VAC (50/60 Hz)
Light source Infrared LED, modulated (940 nm)
Response time 25 ms max.
Output Relay contact 1c, 250 VDC 2.0 A (resistive)
Protection IP50, indoor use
Housing Zinc alloy die-cast
Cable 1.5 m
Weight Approx. 635 g
KPS-AP500 Sensing method: Through-beam | Sensing distance: 5 m | Status: Discontinued
KPS-AP500TR Sensing method: Retro-reflective | Sensing distance: 5 m | Status: Discontinued
KPS-AP50DR Sensing method: Diffuse reflective | Sensing distance: 0.5 m | Status: Discontinued
KPS-AP1000 Sensing method: Through-beam | Sensing distance: 10 m | Status: Discontinued; made to order
KPS-AP2000 Sensing method: Through-beam | Sensing distance: 20 m | Status: Discontinued; made to order
KPS-AP3000 Sensing method: Through-beam | Sensing distance: 30 m | Status: Discontinued; made to order
KPS-AP1000TR Sensing method: Retro-reflective | Sensing distance: 10 m | Status: Discontinued; made to order
Photoelectric SensorsKOINO
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOINO KPS-AP Series AC Photoelectric Sensors (Discontinued)

Brand KOINO·Photoelectric Sensors

Available part numbers (7)

KPS-AP500, KPS-AP500TR, KPS-AP50DR, KPS-AP1000, KPS-AP2000, KPS-AP3000, KPS-AP1000TR
