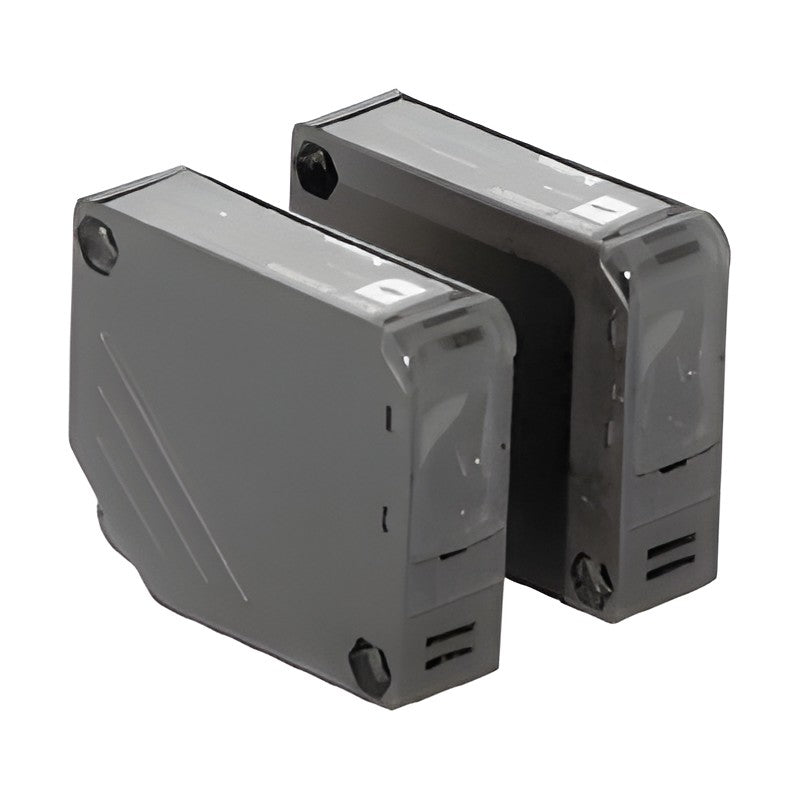

KOINO KPS-AR Series AC/DC Free-Voltage Photoelectric Sensors

KOINO KPS-AR Series AC/DC Free-Voltage Photoelectric Sensors

Free-voltage (AC/DC 24-240 V) long-distance photoelectric sensors with relay output in through-beam, retro-reflective and diffuse types.

Key features

  • AC/DC 24-240 V supply avoids problems from voltage fluctuation or AC/DC supply differences
  • Long sensing distance
  • High-performance output relay operating within 20 ms
  • Easy installation

Specifications

Supply voltage AC/DC 24-240 V
Response time 20 ms max.
Output Relay contact 1c, 30 VDC 3 A, 250 VAC 3 A
Protection IP50, indoor use
Material ABS (black)
Cable Dia. 6 mm, 1.5 m
Weight Approx. 107 g
KPS-AR500 Sensing method: Through-beam (set) | Sensing distance: 5 m
KPS-AR500T Sensing method: Through-beam emitter | Sensing distance: 5 m
KPS-AR500R Sensing method: Through-beam receiver | Sensing distance: 5 m
KPS-AR250TR Sensing method: Retro-reflective | Sensing distance: 2.5 m
KPS-AR40DR Sensing method: Diffuse reflective | Sensing distance: 0.6 m
Photoelectric SensorsKOINO
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOINO KPS-AR Series AC/DC Free-Voltage Photoelectric Sensors

Brand KOINO·Photoelectric Sensors

Available part numbers (5)

KPS-AR500, KPS-AR500T, KPS-AR500R, KPS-AR250TR, KPS-AR40DR

How to order

Send the KOINO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KPS-AR500Sensing method: Through-beam (set) | Sensing distance: 5 m
KPS-AR500TSensing method: Through-beam emitter | Sensing distance: 5 m
KPS-AR500RSensing method: Through-beam receiver | Sensing distance: 5 m
KPS-AR250TRSensing method: Retro-reflective | Sensing distance: 2.5 m
KPS-AR40DRSensing method: Diffuse reflective | Sensing distance: 0.6 m

Need a different model, or a part not listed here? Send us your parts list →
