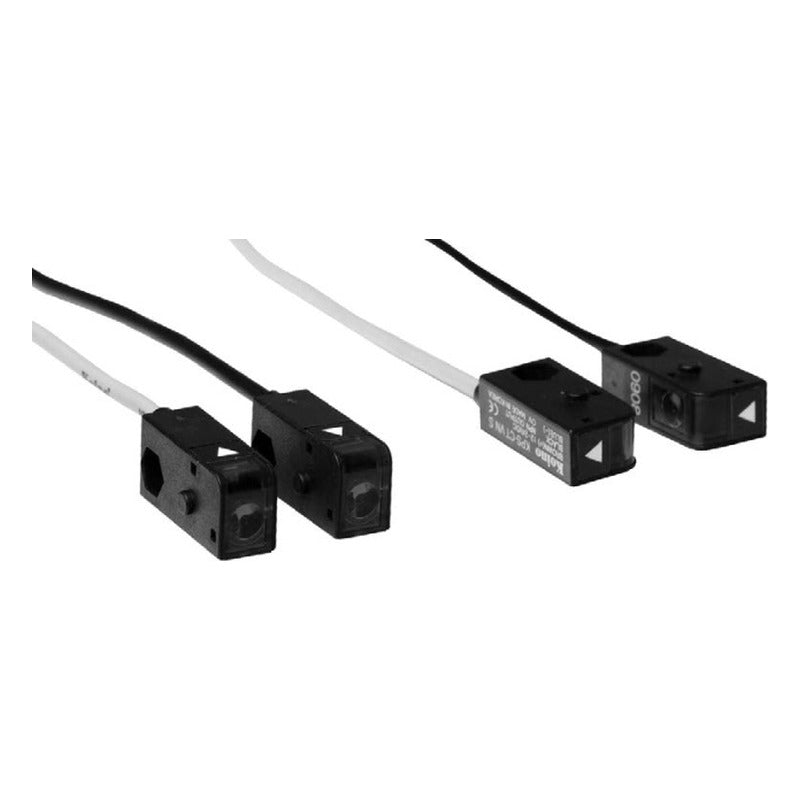

KOINO KPS-CT Series Ultra-Compact Through-Beam Photoelectric Sensors

Ultra-compact through-beam photoelectric sensors for part detection, e.g. on parts feeders, in vertical or horizontal versions.

Key features

Ultra-compact sensor
For part detection on parts feeders and similar equipment
Various slits available (sold separately)
CE, UL, RoHS

Specifications

Sensing method	Through-beam
Sensing distance	1.5 m
Sensing object	Opaque, dia. 6 mm min.
Supply voltage	12-24 VDC +/-10% (ripple 10% max.)
Current consumption	40 mA max. (emitter 20 mA, receiver 20 mA)
Response time	1 ms max.
Operation mode	Dark ON
Control output	NPN open collector, 26.4 VDC, 80 mA max.
Light source	Infrared LED (940 nm)
Protection	IP40
Cable	Emitter 2P, receiver 3P, dia. 2.4 mm, 2 m
Weight	Approx. 20 g

KPS-CTV		Orientation: Vertical
KPS-CTH		Orientation: Horizontal

Photoelectric SensorsKOINO

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOINO KPS-CT Series Ultra-Compact Through-Beam Photoelectric Sensors

Brand KOINO·Photoelectric Sensors

Available part numbers (2)

KPS-CTV, KPS-CTH

How to order

Send the KOINO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
