KOINO KPS-O Series M18 Cylindrical Photoelectric Sensors

KOINO KPS-O Series M18 Cylindrical Photoelectric Sensors

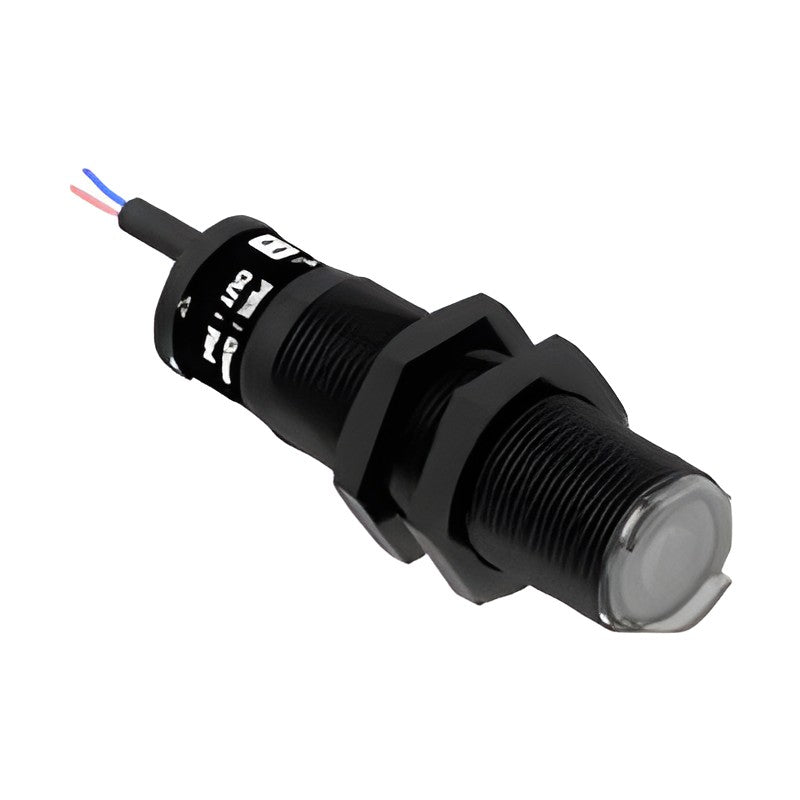

Dia. 18 mm cylindrical photoelectric sensors with built-in sensitivity adjustment in through-beam, retro-reflective and diffuse types.

Key features

  • Dia. 18 mm cylindrical photoelectric sensor
  • Built-in sensitivity adjustment potentiometer
  • Light ON / Dark ON selected by control wire
  • Built-in protection circuits
  • CE approved

Specifications

Supply voltage 12-24 VDC +/-10% (ripple 10% max.)
Current consumption 30 mA max.
Control output NPN/PNP open collector, 26.4 VDC, 200 mA max.
Response time 1 ms
Protection IP67
Connection Cable dia. 4, 2 m
Material Case Nylon, lens PC
Weight Approx. 62 g
Certification CE (EN 55011 / EN 60947-5-2)
KPS-OTE-L Sensing method: Through-beam emitter | Sensing distance: 15 m
KPS-OTN-L Sensing method: Through-beam receiver | Sensing distance: 15 m | Output: NPN
KPS-OTP-L Sensing method: Through-beam receiver | Sensing distance: 15 m | Output: PNP
KPS-ORN-L Sensing method: Retro-reflective | Sensing distance: 3 m | Output: NPN
KPS-ORP-L Sensing method: Retro-reflective | Sensing distance: 3 m | Output: PNP
KPS-ODN-L Sensing method: Diffuse reflective | Sensing distance: 10 cm | Output: NPN
KPS-ODP-L Sensing method: Diffuse reflective | Sensing distance: 10 cm | Output: PNP
KPS-ODN-1L Sensing method: Diffuse reflective | Sensing distance: 40 cm | Output: NPN
KPS-ODP-1L Sensing method: Diffuse reflective | Sensing distance: 40 cm | Output: PNP
Photoelectric SensorsKOINO
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOINO KPS-O Series M18 Cylindrical Photoelectric Sensors

Brand KOINO·Photoelectric Sensors

Available part numbers (9)

KPS-OTE-L, KPS-OTN-L, KPS-OTP-L, KPS-ORN-L, KPS-ORP-L, KPS-ODN-L, KPS-ODP-L, KPS-ODN-1L, KPS-ODP-1L

How to order

Send the KOINO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KPS-OTE-LSensing method: Through-beam emitter | Sensing distance: 15 m
KPS-OTN-LSensing method: Through-beam receiver | Sensing distance: 15 m | Output: NPN
KPS-OTP-LSensing method: Through-beam receiver | Sensing distance: 15 m | Output: PNP
KPS-ORN-LSensing method: Retro-reflective | Sensing distance: 3 m | Output: NPN
KPS-ORP-LSensing method: Retro-reflective | Sensing distance: 3 m | Output: PNP
KPS-ODN-LSensing method: Diffuse reflective | Sensing distance: 10 cm | Output: NPN
KPS-ODP-LSensing method: Diffuse reflective | Sensing distance: 10 cm | Output: PNP
KPS-ODN-1LSensing method: Diffuse reflective | Sensing distance: 40 cm | Output: NPN
KPS-ODP-1LSensing method: Diffuse reflective | Sensing distance: 40 cm | Output: PNP
