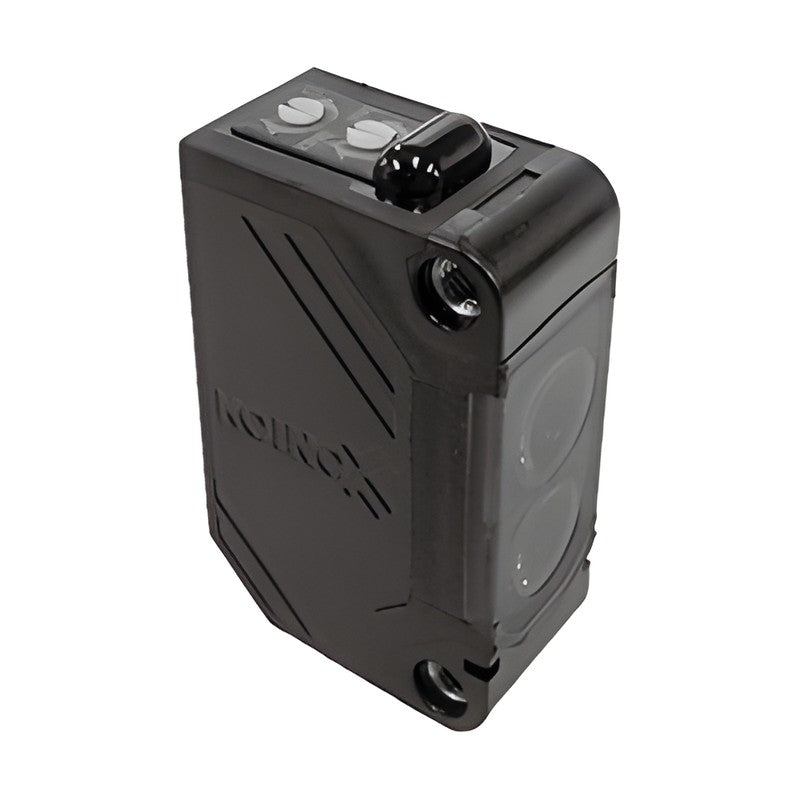

KOINO KPS-ZDBN Background Suppression Photoelectric Sensor

Distance-setting diffuse photoelectric sensor with background suppression for 10-40 mm detection independent of color and material.

Key features

Minimized sensing distance error due to color and material
Light ON / Dark ON selectable
Sensing distance adjustable with single-turn potentiometer
Built-in reverse polarity, output short-circuit and overcurrent protection

Specifications

Sensing method	Background suppression (distance setting)
Sensing distance	10-40 mm
Sensing object	Opaque, translucent
Hysteresis	10% of sensing distance max.
Light source	Red LED (645 nm)
Supply voltage	12-24 VDC +/-10% (ripple 15% max.)
Current consumption	30 mA max.
Control output	NPN open collector, 30 VDC, 200 mA max.
Response time	1.5 ms max.
Protection	IP65
Connection	Cable (standard 2 m)
Material	Case ABS, lens acrylic

KPS-ZDBN

Output: NPN open collector

Photoelectric SensorsKOINO

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOINO KPS-ZDBN Background Suppression Photoelectric Sensor

Brand KOINO·Photoelectric Sensors

Available part numbers (1)

KPS-ZDBN

How to order

Send the KOINO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
