• KOINO KPX Series Miniature Inductive Proximity Sensors
1 1

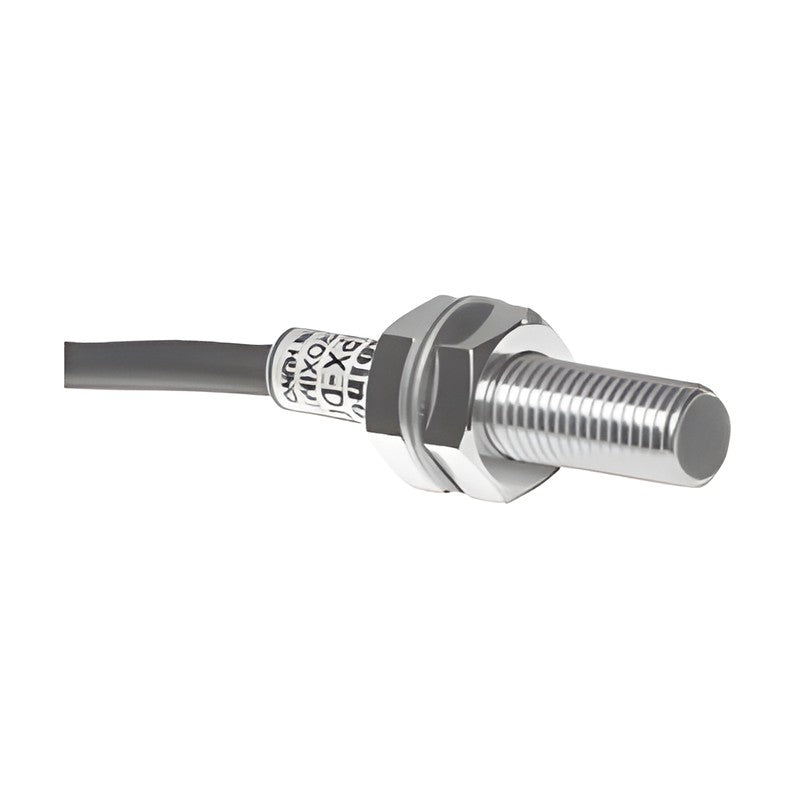

KOINO KPX Series Miniature Inductive Proximity Sensors

KOINO KPX Series Miniature Inductive Proximity Sensors

Miniature cylindrical DC 3-wire inductive proximity sensors in dia. 4 mm and dia. 8 mm sizes.

Key features

  • IP67 protection
  • Shielded and non-shielded versions

Specifications

Supply voltage 12-24 VDC (10-30 VDC)
Residual voltage 2.0 V max.
Protection IP67
Connection Cable, 2 m
Operating temperature -25 to +70 C (no icing)
KPX-D04-X8E1M Diameter: 4 mm | Sensing distance: 0.8 mm | Shielding: Shielded | Output: NPN NO | Housing: Stainless | Status: Discontinued
KPX-D08-01E1M Diameter: 8 mm | Sensing distance: 1.0 mm | Shielding: Shielded | Output: NPN NO
KPX-D08-01E3M Diameter: 8 mm | Sensing distance: 1.0 mm | Shielding: Shielded | Output: PNP NO
KPX-D08-02E1MN Diameter: 8 mm | Sensing distance: 2.0 mm | Shielding: Non-shielded | Output: NPN NO
KPX-D08-02E3MN Diameter: 8 mm | Sensing distance: 2.0 mm | Shielding: Non-shielded | Output: PNP NO
Proximity SensorsKOINO
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOINO KPX Series Miniature Inductive Proximity Sensors

Brand KOINO·Proximity Sensors

Available part numbers (5)

KPX-D04-X8E1M, KPX-D08-01E1M, KPX-D08-01E3M, KPX-D08-02E1MN, KPX-D08-02E3MN

How to order

Send the KOINO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KPX-D04-X8E1MDiameter: 4 mm | Sensing distance: 0.8 mm | Shielding: Shielded | Output: NPN NO | Housing: Stainless | Status: Discontinued
KPX-D08-01E1MDiameter: 8 mm | Sensing distance: 1.0 mm | Shielding: Shielded | Output: NPN NO
KPX-D08-01E3MDiameter: 8 mm | Sensing distance: 1.0 mm | Shielding: Shielded | Output: PNP NO
KPX-D08-02E1MNDiameter: 8 mm | Sensing distance: 2.0 mm | Shielding: Non-shielded | Output: NPN NO
KPX-D08-02E3MNDiameter: 8 mm | Sensing distance: 2.0 mm | Shielding: Non-shielded | Output: PNP NO
