• Kromer 7230/7231 Series 72 Balancer (3-21 kg, 2000 mm Travel)
1 1

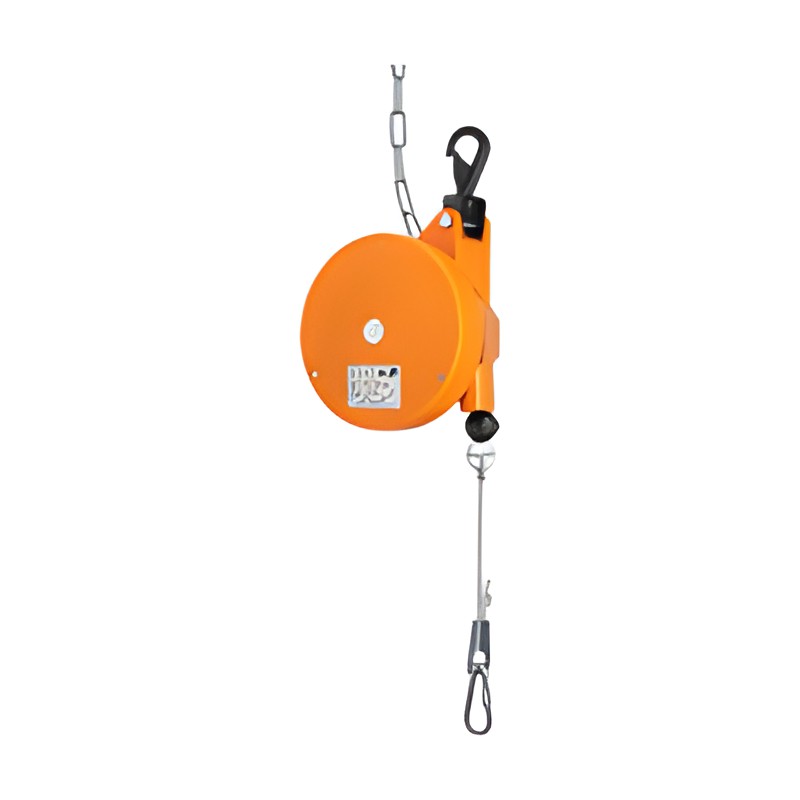

Kromer 7230/7231 Series 72 Balancer (3-21 kg, 2000 mm Travel)

Kromer 7230/7231 Series 72 Balancer (3-21 kg, 2000 mm Travel)

Kromer series 72 spring balancer for 3-21 kg, without (7230) or with (7231) automatic ratchet lock.

Key features

  • Impact- and abrasion-resistant plastic housing
  • Patented freewheel protection; spring fracture safeguard from 3 kg
  • Worm gear load adjustment
  • Adjustable cable extension and stroke limiter
  • Without (7230) or with (7231) automatic ratchet lock

Specifications

Load range 3.0-21.0 kg
Cable travel 2000 mm
Housing Impact-resistant plastic
Load setting Worm gear
Lock 7230 without / 7231 with ratchet lock
Certifications GS, DIN 15112, CE
Series 72
Source Kromer 72 Series Balancer Catalog (EN 09-2025) / Kromer Series 72 user manual
7230000001 Load range: 3.0-5.0 kg | Cable travel: 2000 mm | Ratchet lock: No | Weight: 2.90 kg
7231000001 Load range: 3.0-5.0 kg | Cable travel: 2000 mm | Ratchet lock: Yes | Weight: 3.10 kg
7230000002 Load range: 4.5-7.0 kg | Cable travel: 2000 mm | Ratchet lock: No | Weight: 3.10 kg
7231000002 Load range: 4.5-7.0 kg | Cable travel: 2000 mm | Ratchet lock: Yes | Weight: 3.30 kg
7230000003 Load range: 6.0-10.0 kg | Cable travel: 2000 mm | Ratchet lock: No | Weight: 3.20 kg
7231000003 Load range: 6.0-10.0 kg | Cable travel: 2000 mm | Ratchet lock: Yes | Weight: 3.40 kg
7230000004 Load range: 9.0-14.0 kg | Cable travel: 2000 mm | Ratchet lock: No | Weight: 3.40 kg
7231000004 Load range: 9.0-14.0 kg | Cable travel: 2000 mm | Ratchet lock: Yes | Weight: 3.60 kg
7230000005 Load range: 13.0-17.0 kg | Cable travel: 2000 mm | Ratchet lock: No | Weight: 3.60 kg
7231000005 Load range: 13.0-17.0 kg | Cable travel: 2000 mm | Ratchet lock: Yes | Weight: 3.80 kg
7230000006 Load range: 16.0-21.0 kg | Cable travel: 2000 mm | Ratchet lock: No | Weight: 3.80 kg
7231000006 Load range: 16.0-21.0 kg | Cable travel: 2000 mm | Ratchet lock: Yes | Weight: 4.00 kg
Spring BalancersKromer
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Kromer 7230/7231 Series 72 Balancer (3-21 kg, 2000 mm Travel)

Brand Kromer·Spring Balancers

Available part numbers (12)

7230000001, 7231000001, 7230000002, 7231000002, 7230000003, 7231000003, 7230000004, 7231000004, 7230000005, 7231000005 + 2 more — see full table ↓

How to order

Send the Kromer part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
About the manufacturerKromer supplier profile →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
7230000001Load range: 3.0-5.0 kg | Cable travel: 2000 mm | Ratchet lock: No | Weight: 2.90 kg
7231000001Load range: 3.0-5.0 kg | Cable travel: 2000 mm | Ratchet lock: Yes | Weight: 3.10 kg
7230000002Load range: 4.5-7.0 kg | Cable travel: 2000 mm | Ratchet lock: No | Weight: 3.10 kg
7231000002Load range: 4.5-7.0 kg | Cable travel: 2000 mm | Ratchet lock: Yes | Weight: 3.30 kg
7230000003Load range: 6.0-10.0 kg | Cable travel: 2000 mm | Ratchet lock: No | Weight: 3.20 kg
7231000003Load range: 6.0-10.0 kg | Cable travel: 2000 mm | Ratchet lock: Yes | Weight: 3.40 kg
7230000004Load range: 9.0-14.0 kg | Cable travel: 2000 mm | Ratchet lock: No | Weight: 3.40 kg
7231000004Load range: 9.0-14.0 kg | Cable travel: 2000 mm | Ratchet lock: Yes | Weight: 3.60 kg
7230000005Load range: 13.0-17.0 kg | Cable travel: 2000 mm | Ratchet lock: No | Weight: 3.60 kg
7231000005Load range: 13.0-17.0 kg | Cable travel: 2000 mm | Ratchet lock: Yes | Weight: 3.80 kg
7230000006Load range: 16.0-21.0 kg | Cable travel: 2000 mm | Ratchet lock: No | Weight: 3.80 kg
7231000006Load range: 16.0-21.0 kg | Cable travel: 2000 mm | Ratchet lock: Yes | Weight: 4.00 kg
