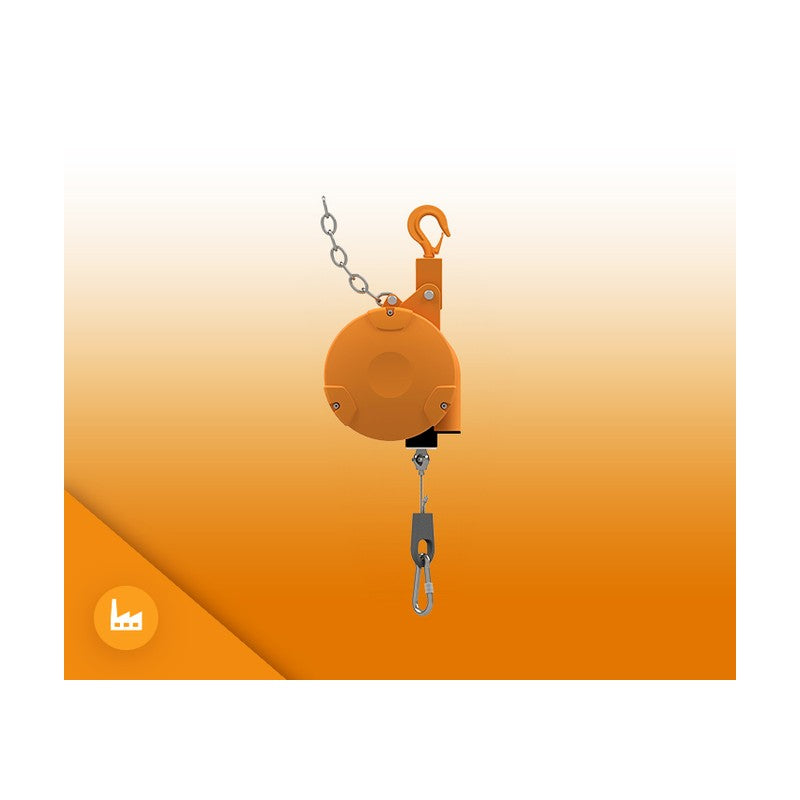

• Kromer 7241 Series 72 Balancer (12-100 kg, 2000 mm Travel)
1 1

Kromer 7241 Series 72 Balancer (12-100 kg, 2000 mm Travel)

Kromer 7241 Series 72 Balancer (12-100 kg, 2000 mm Travel)

Kromer series 72 heavy-duty spring balancer for 12-100 kg, available with or without manual drum lock.

Key features

  • High-strength aluminium housing and cable drum
  • Containerised long-life load spring with spring fracture safeguard
  • Worm gear load adjustment
  • Optional manual drum lock (…081-087)
  • Steel safety chain; adjustable stroke limiter

Specifications

Load range 12.0-100.0 kg
Cable travel 2000 mm
Housing High-strength aluminium
Load setting Worm gear
Lock Without (…001-007) or with manual lock (…081-087)
Series 72
Source Kromer Series 72 user manual (data table)
7241080001 Load range: 12.0-20.0 kg | Cable travel: 2000 mm | Manual lock: No | Weight: 14.80 kg
7241080002 Load range: 20.0-30.0 kg | Cable travel: 2000 mm | Manual lock: No | Weight: 15.20 kg
7241080003 Load range: 30.0-45.0 kg | Cable travel: 2000 mm | Manual lock: No | Weight: 16.90 kg
7241080004 Load range: 45.0-60.0 kg | Cable travel: 2000 mm | Manual lock: No | Weight: 17.30 kg
7241080005 Load range: 60.0-75.0 kg | Cable travel: 2000 mm | Manual lock: No | Weight: 18.70 kg
7241080006 Load range: 75.0-90.0 kg | Cable travel: 2000 mm | Manual lock: No | Weight: 19.70 kg
7241080007 Load range: 90.0-100.0 kg | Cable travel: 2000 mm | Manual lock: No | Weight: 20.90 kg
7241080081 Load range: 12.0-20.0 kg | Cable travel: 2000 mm | Manual lock: Yes | Weight: 14.80 kg
7241080082 Load range: 20.0-30.0 kg | Cable travel: 2000 mm | Manual lock: Yes | Weight: 15.20 kg
7241080083 Load range: 30.0-45.0 kg | Cable travel: 2000 mm | Manual lock: Yes | Weight: 16.90 kg
7241080084 Load range: 45.0-60.0 kg | Cable travel: 2000 mm | Manual lock: Yes | Weight: 17.30 kg
7241080085 Load range: 60.0-75.0 kg | Cable travel: 2000 mm | Manual lock: Yes | Weight: 18.70 kg
7241080086 Load range: 75.0-90.0 kg | Cable travel: 2000 mm | Manual lock: Yes | Weight: 19.70 kg
7241080087 Load range: 90.0-100.0 kg | Cable travel: 2000 mm | Manual lock: Yes | Weight: 20.90 kg
Spring BalancersKromer
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Kromer 7241 Series 72 Balancer (12-100 kg, 2000 mm Travel)

Brand Kromer·Spring Balancers

Available part numbers (14)

7241080001, 7241080002, 7241080003, 7241080004, 7241080005, 7241080006, 7241080007, 7241080081, 7241080082, 7241080083 + 4 more — see full table ↓

How to order

Send the Kromer part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
About the manufacturerKromer supplier profile →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
7241080001Load range: 12.0-20.0 kg | Cable travel: 2000 mm | Manual lock: No | Weight: 14.80 kg
7241080002Load range: 20.0-30.0 kg | Cable travel: 2000 mm | Manual lock: No | Weight: 15.20 kg
7241080003Load range: 30.0-45.0 kg | Cable travel: 2000 mm | Manual lock: No | Weight: 16.90 kg
7241080004Load range: 45.0-60.0 kg | Cable travel: 2000 mm | Manual lock: No | Weight: 17.30 kg
7241080005Load range: 60.0-75.0 kg | Cable travel: 2000 mm | Manual lock: No | Weight: 18.70 kg
7241080006Load range: 75.0-90.0 kg | Cable travel: 2000 mm | Manual lock: No | Weight: 19.70 kg
7241080007Load range: 90.0-100.0 kg | Cable travel: 2000 mm | Manual lock: No | Weight: 20.90 kg
7241080081Load range: 12.0-20.0 kg | Cable travel: 2000 mm | Manual lock: Yes | Weight: 14.80 kg
7241080082Load range: 20.0-30.0 kg | Cable travel: 2000 mm | Manual lock: Yes | Weight: 15.20 kg
7241080083Load range: 30.0-45.0 kg | Cable travel: 2000 mm | Manual lock: Yes | Weight: 16.90 kg
7241080084Load range: 45.0-60.0 kg | Cable travel: 2000 mm | Manual lock: Yes | Weight: 17.30 kg
7241080085Load range: 60.0-75.0 kg | Cable travel: 2000 mm | Manual lock: Yes | Weight: 18.70 kg
7241080086Load range: 75.0-90.0 kg | Cable travel: 2000 mm | Manual lock: Yes | Weight: 19.70 kg
7241080087Load range: 90.0-100.0 kg | Cable travel: 2000 mm | Manual lock: Yes | Weight: 20.90 kg
