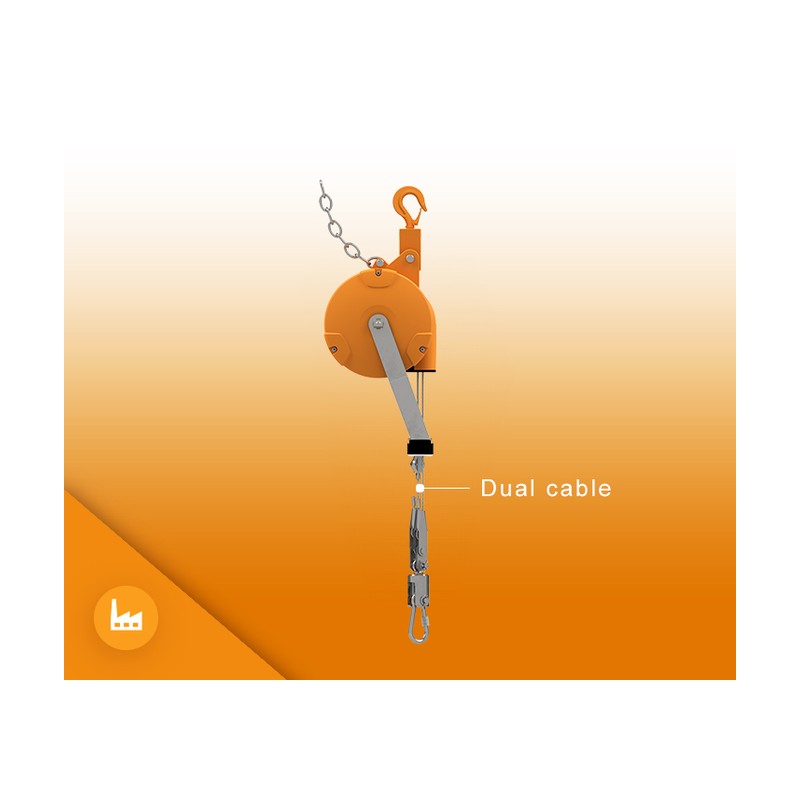

Kromer 7248 Series 72 Balancer (12-100 kg, 2000 mm Travel)

Kromer 7248 Series 72 Balancer (12-100 kg, 2000 mm Travel)

Kromer series 72 heavy-duty spring balancer type 7248 for 12-100 kg loads with 2000 mm cable travel.

Key features

  • High-strength aluminium housing
  • Long-life load spring with spring fracture safeguard
  • Worm gear load adjustment
  • Freely rotating top suspension with safety hook
  • Steel safety chain; adjustable stroke limiter

Specifications

Load range 12.0-100.0 kg
Cable travel 2000 mm
Housing High-strength aluminium
Load setting Worm gear
Series 72
Source Kromer Series 72 user manual (data table)
7248080001 Load range: 12.0-20.0 kg | Cable travel: 2000 mm | Weight: 17.10 kg
7248080002 Load range: 20.0-30.0 kg | Cable travel: 2000 mm | Weight: 17.50 kg
7248080003 Load range: 30.0-45.0 kg | Cable travel: 2000 mm | Weight: 19.20 kg
7248080004 Load range: 45.0-60.0 kg | Cable travel: 2000 mm | Weight: 19.60 kg
7248080005 Load range: 60.0-75.0 kg | Cable travel: 2000 mm | Weight: 21.00 kg
7248080006 Load range: 75.0-90.0 kg | Cable travel: 2000 mm | Weight: 22.00 kg
7248080007 Load range: 90.0-100.0 kg | Cable travel: 2000 mm | Weight: 23.20 kg
Spring BalancersKromer
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Kromer 7248 Series 72 Balancer (12-100 kg, 2000 mm Travel)

Brand Kromer·Spring Balancers

Available part numbers (7)

7248080001, 7248080002, 7248080003, 7248080004, 7248080005, 7248080006, 7248080007

How to order

Send the Kromer part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
About the manufacturerKromer supplier profile →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
7248080001Load range: 12.0-20.0 kg | Cable travel: 2000 mm | Weight: 17.10 kg
7248080002Load range: 20.0-30.0 kg | Cable travel: 2000 mm | Weight: 17.50 kg
7248080003Load range: 30.0-45.0 kg | Cable travel: 2000 mm | Weight: 19.20 kg
7248080004Load range: 45.0-60.0 kg | Cable travel: 2000 mm | Weight: 19.60 kg
7248080005Load range: 60.0-75.0 kg | Cable travel: 2000 mm | Weight: 21.00 kg
7248080006Load range: 75.0-90.0 kg | Cable travel: 2000 mm | Weight: 22.00 kg
7248080007Load range: 90.0-100.0 kg | Cable travel: 2000 mm | Weight: 23.20 kg
