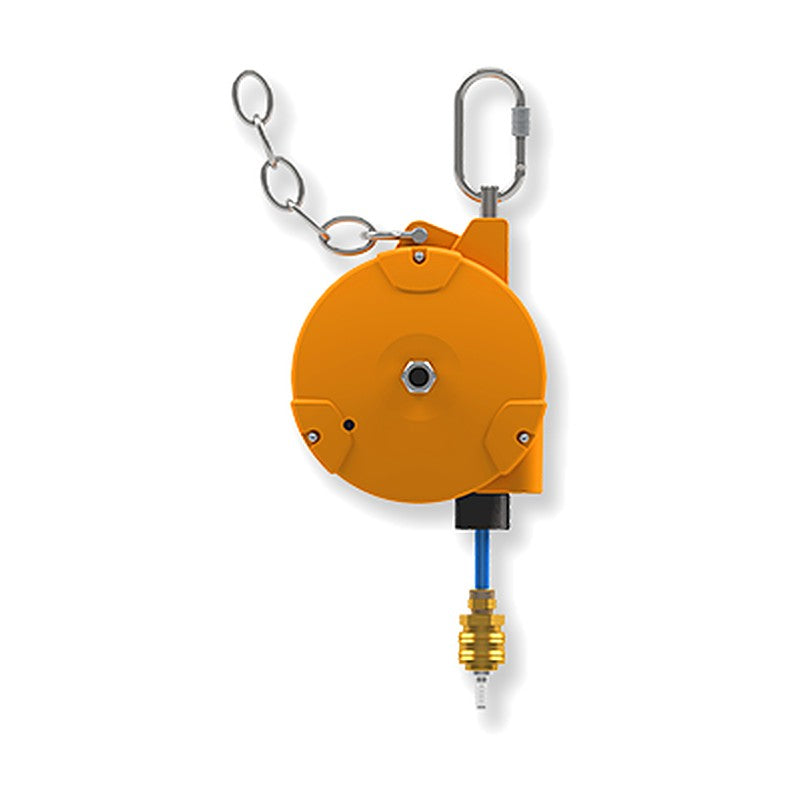

Kromer 8223 Air-Hose Balancer (0.4-3 kg, 800 mm Travel)

Kromer 8223 Air-Hose Balancer (0.4-3 kg, 800 mm Travel)

Kromer spring balancer with an integrated air hose for pneumatic tools of 0.4-3 kg, rated for 10 bar operating pressure.

Key features

  • Integrated high-strength 6 x 8 mm air hose
  • CEJN quick coupling, rotating coupling for R 1/4" tool connection
  • Max. operating pressure 10 bar; air flow 900 l/min at 6 bar
  • Infinitely adjustable hose stop buffer
  • Electrically insulated suspension; safety chain included
  • GS-certified, DIN 15112

Specifications

Load range 0.4-3.0 kg
Hose travel 800 mm
Air hose 6 x 8 mm (catalogue: 6 x 9 mm)
Operating pressure max. 10 bar
Air flow 900 l/min at 6 bar
Coupling CEJN quick coupling, R 1/4"
Certifications GS, DIN 15112
Edition Air-Hose
Source Kromer website Type 8223 / Kromer General Catalog (EN 09-2026)
8223020001 Load range: 0.4-1.2 kg | Cable travel: 800 mm | Weight: 1.3 kg | GTIN: 4262403198890
8223020002 Load range: 1.2-2.2 kg | Cable travel: 800 mm | Weight: 1.4 kg | GTIN: 4262403198906
8223020003 Load range: 2.2-3.0 kg | Cable travel: 800 mm | Weight: 1.4 kg | GTIN: 4262403198913
Air-Hose BalancersKromer
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Kromer 8223 Air-Hose Balancer (0.4-3 kg, 800 mm Travel)

Brand Kromer·Air-Hose Balancers

Available part numbers (3)

8223020001, 8223020002, 8223020003

How to order

Send the Kromer part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
About the manufacturerKromer supplier profile →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
8223020001Load range: 0.4-1.2 kg | Cable travel: 800 mm | Weight: 1.3 kg | GTIN: 4262403198890
8223020002Load range: 1.2-2.2 kg | Cable travel: 800 mm | Weight: 1.4 kg | GTIN: 4262403198906
8223020003Load range: 2.2-3.0 kg | Cable travel: 800 mm | Weight: 1.4 kg | GTIN: 4262403198913
