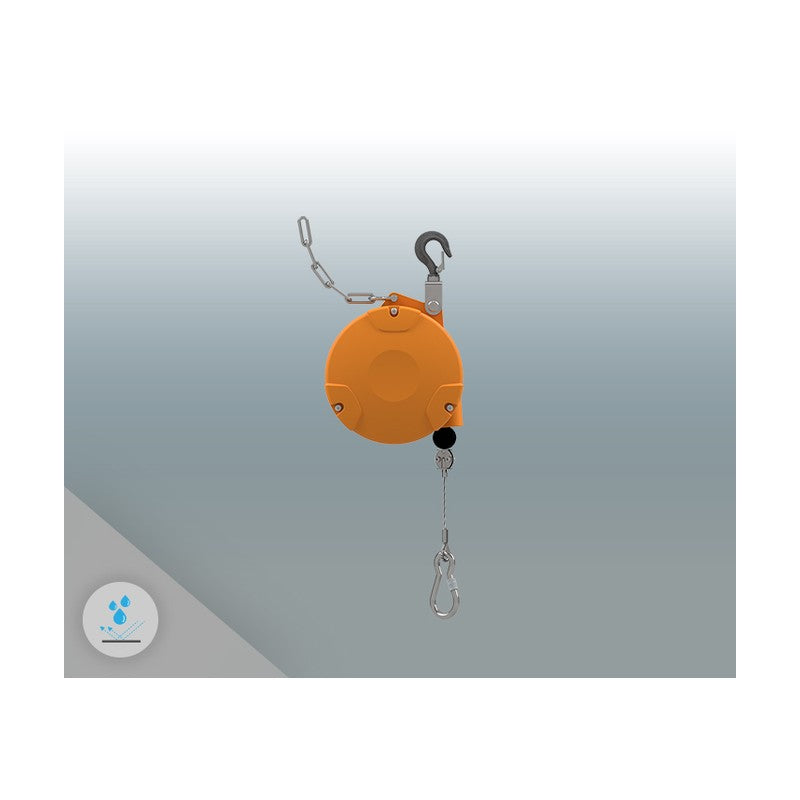

Kromer 8230/8231 Rust-Free Balancer (3-21 kg, 2000 mm Travel)

Kromer 8230/8231 Rust-Free Balancer (3-21 kg, 2000 mm Travel)

Rust-free edition of the Kromer 8230/8231 balancer with AquaGuard drain against waterlogging and NSF H1 grease, for 3-21 kg loads.

Key features

  • Corrosion-resistant materials and flexible stainless steel cable
  • Food-grade NSF H1 lubricant
  • AquaGuard drain hole against waterlogging
  • VarioLink suspension and SpringProtector
  • Available without (8230) or with (8231) ratchet lock
  • GS-certified, DIN 15112

Specifications

Load range 3.0-21.0 kg
Cable travel 2000 mm
Housing Impact- and abrasion-resistant plastic
Cable Flexible stainless steel
Lubricant NSF H1
Lock 8230 without / 8231 with ratchet lock
Certifications GS, DIN 15112
Edition Rust-free
Source Kromer website RF Type 8230 / Kromer General Catalog (EN 09-2026)
8230010001 Load range: 3.0-5.0 kg | Cable travel: 2000 mm | Ratchet lock: No | Weight: 3.0 kg | GTIN: 4262403199446
8231010001 Load range: 3.0-5.0 kg | Cable travel: 2000 mm | Ratchet lock: Yes | Weight: 3.1 kg | GTIN: 4262466530132
8230010002 Load range: 4.5-7.0 kg | Cable travel: 2000 mm | Ratchet lock: No | Weight: 3.2 kg | GTIN: 4262403199453
8231010002 Load range: 4.5-7.0 kg | Cable travel: 2000 mm | Ratchet lock: Yes | Weight: 3.3 kg | GTIN: 4262466530149
8230010003 Load range: 6.0-10.0 kg | Cable travel: 2000 mm | Ratchet lock: No | Weight: 3.3 kg | GTIN: 4262403199460
8231010003 Load range: 6.0-10.0 kg | Cable travel: 2000 mm | Ratchet lock: Yes | Weight: 3.4 kg | GTIN: 4262466530156
8230010004 Load range: 9.0-14.0 kg | Cable travel: 2000 mm | Ratchet lock: No | Weight: 3.5 kg | GTIN: 4262403199477
8231010004 Load range: 9.0-14.0 kg | Cable travel: 2000 mm | Ratchet lock: Yes | Weight: 3.6 kg | GTIN: 4262466530163
8230010005 Load range: 13.0-17.0 kg | Cable travel: 2000 mm | Ratchet lock: No | Weight: 3.7 kg | GTIN: 4262403199484
8231010005 Load range: 13.0-17.0 kg | Cable travel: 2000 mm | Ratchet lock: Yes | Weight: 3.8 kg | GTIN: 4262466530170
8230010006 Load range: 16.0-21.0 kg | Cable travel: 2000 mm | Ratchet lock: No | Weight: 3.9 kg | GTIN: 4262403199491
8231010006 Load range: 16.0-21.0 kg | Cable travel: 2000 mm | Ratchet lock: Yes | Weight: 4.0 kg | GTIN: 4262466530187
Spring BalancersKromer
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Kromer 8230/8231 Rust-Free Balancer (3-21 kg, 2000 mm Travel)

Brand Kromer·Spring Balancers

Available part numbers (12)

8230010001, 8231010001, 8230010002, 8231010002, 8230010003, 8231010003, 8230010004, 8231010004, 8230010005, 8231010005 + 2 more — see full table ↓

How to order

Send the Kromer part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
