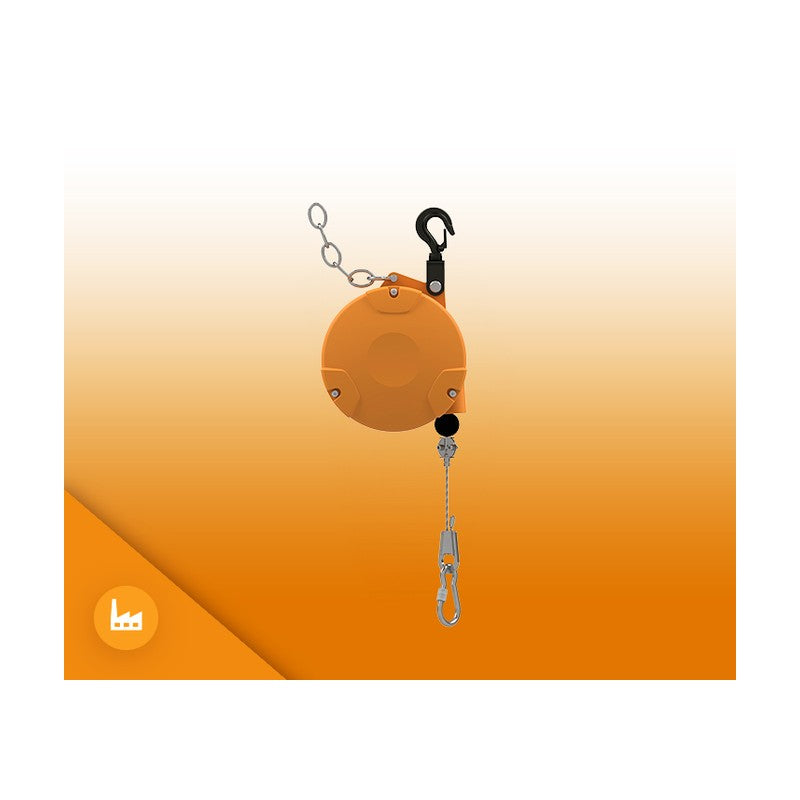

Kromer 8230/8231 Spring Balancer (3-21 kg, 2000 mm Travel)

Kromer 8230/8231 Spring Balancer (3-21 kg, 2000 mm Travel)

Kromer zero-gravity spring balancer for 3-21 kg, available without (8230) or with (8231) ratchet lock, with VarioLink suspension and SpringProtector.

Key features

  • VarioLink freely rotating and swivelling safety hook
  • SpringProtector against failure during load adjustment
  • Easy and safe cable replacement; cable wedge for length adjustment
  • Infinitely variable load setting via endless screw
  • Available without (8230) or with (8231) ratchet lock
  • GS-certified, DIN 15112

Specifications

Load range 3.0-21.0 kg
Cable travel 2000 mm
Housing Impact- and abrasion-resistant plastic
Cable drum High-strength plastic
Load setting Endless screw
Lock 8230 without / 8231 with ratchet lock
Certifications GS, DIN 15112
Edition Industrial
Source Kromer website Type 8230/8231 / Kromer General Catalog (EN 09-2026)
8230000001 Load range: 3.0-5.0 kg | Cable travel: 2000 mm | Ratchet lock: No | Weight: 2.9 kg | GTIN: 4262403199316
8231000001 Load range: 3.0-5.0 kg | Cable travel: 2000 mm | Ratchet lock: Yes | Weight: 3.1 kg | GTIN: 4262403199996
8230000002 Load range: 4.5-7.0 kg | Cable travel: 2000 mm | Ratchet lock: No | Weight: 3.1 kg | GTIN: 4262403199330
8231000002 Load range: 4.5-7.0 kg | Cable travel: 2000 mm | Ratchet lock: Yes | Weight: 3.3 kg | GTIN: 4262466530026
8230000003 Load range: 6.0-10.0 kg | Cable travel: 2000 mm | Ratchet lock: No | Weight: 3.2 kg | GTIN: 4262403199354
8231000003 Load range: 6.0-10.0 kg | Cable travel: 2000 mm | Ratchet lock: Yes | Weight: 3.4 kg | GTIN: 4262466530040
8230000004 Load range: 9.0-14.0 kg | Cable travel: 2000 mm | Ratchet lock: No | Weight: 3.4 kg | GTIN: 4262403199378
8231000004 Load range: 9.0-14.0 kg | Cable travel: 2000 mm | Ratchet lock: Yes | Weight: 3.6 kg | GTIN: 4262466530064
8230000005 Load range: 13.0-17.0 kg | Cable travel: 2000 mm | Ratchet lock: No | Weight: 3.6 kg | GTIN: 4262403199392
8231000005 Load range: 13.0-17.0 kg | Cable travel: 2000 mm | Ratchet lock: Yes | Weight: 3.8 kg | GTIN: 4262466530088
8230000006 Load range: 16.0-21.0 kg | Cable travel: 2000 mm | Ratchet lock: No | Weight: 3.8 kg | GTIN: 4262403199422
8231000006 Load range: 16.0-21.0 kg | Cable travel: 2000 mm | Ratchet lock: Yes | Weight: 4.0 kg | GTIN: 4262466530118
