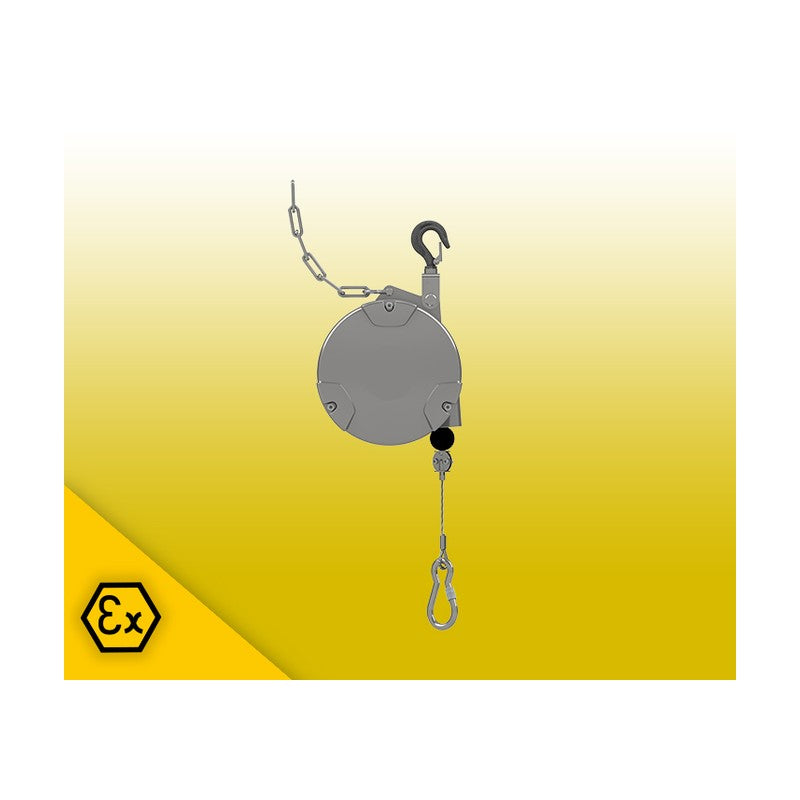

Kromer 8230 ATEX Balancer (3-21 kg, 2000 mm Travel)

Kromer 8230 ATEX Balancer (3-21 kg, 2000 mm Travel)

Kromer ATEX-edition spring balancer type 8230 for use in explosive gas (Zone 1) and dust (Zone 21) atmospheres, with integrated ground connection.

Key features

  • ATEX gas: II 2G Ex h IIB T6 Gb X
  • ATEX dust: II 2D Ex h IIIC T85°C Db X
  • Integrated grounding connection against static charging
  • Aluminium housing; cable drum of conductive plastic; stainless steel support cable
  • Encapsulated spring assembly with stainless spring breakage protection
  • DIN 15112

Specifications

Load range 3.0-21.0 kg
Cable travel 2000 mm
ATEX gas II 2G Ex h IIB T6 Gb X
ATEX dust II 2D Ex h IIIC T85°C Db X
Housing Aluminium
Cable Stainless steel
Certifications ATEX, DIN 15112
Edition ATEX
Source Kromer website ATEX 8230 / Kromer General Catalog (EN 09-2026)
8230030001 Load range: 3.0-5.0 kg | Cable travel: 2000 mm | Weight: 3.7 kg | GTIN: 4262403199507
8230030002 Load range: 4.5-7.0 kg | Cable travel: 2000 mm | Weight: 3.9 kg | GTIN: 4262403199514
8230030003 Load range: 6.0-10.0 kg | Cable travel: 2000 mm | Weight: 4.0 kg | GTIN: 4262403199521
8230030004 Load range: 9.0-14.0 kg | Cable travel: 2000 mm | Weight: 4.2 kg | GTIN: 4262403199538
8230030005 Load range: 13.0-17.0 kg | Cable travel: 2000 mm | Weight: 4.4 kg | GTIN: 4262403199545
8230030006 Load range: 16.0-21.0 kg | Cable travel: 2000 mm | Weight: 4.6 kg | GTIN: 4262403199552
Spring BalancersKromer
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Kromer 8230 ATEX Balancer (3-21 kg, 2000 mm Travel)

Brand Kromer·Spring Balancers

Available part numbers (6)

8230030001, 8230030002, 8230030003, 8230030004, 8230030005, 8230030006
