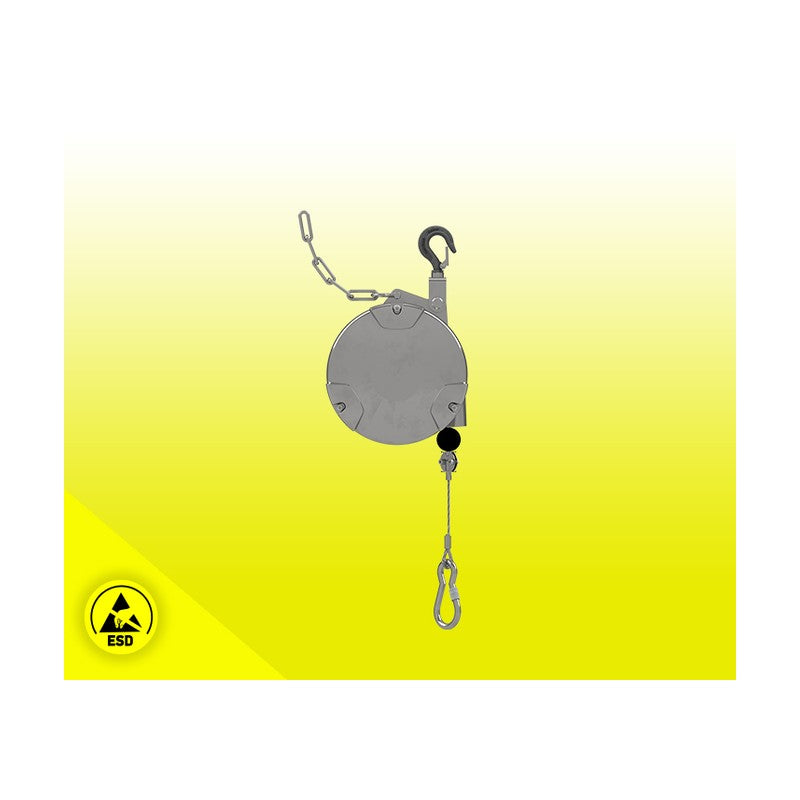

• Kromer 8230 ESD Balancer (3-21 kg, 2000 mm Travel)
1 1

Kromer 8230 ESD Balancer (3-21 kg, 2000 mm Travel)

Kromer 8230 ESD Balancer (3-21 kg, 2000 mm Travel)

Kromer ESD-edition spring balancer type 8230 made from conductive materials with integrated ground connection, for electrostatic-sensitive electronics production.

Key features

  • ESD-protected product design according to DIN EN 61340-5-1
  • Conductive materials with integrated ground connection
  • Stainless steel support cable
  • Infinitely adjustable load setting and cable retraction limiter
  • Spring fracture safeguard; safety chain included
  • DIN 15112

Specifications

Load range 3.0-21.0 kg
Cable travel 2000 mm
ESD standard DIN EN 61340-5-1
Cable Stainless steel
Grounding Integrated ground connection
Certifications ESD, DIN 15112
Edition ESD
Source Kromer website ESD 8230 / Kromer General Catalog (EN 09-2026)
8230040001 Load range: 3.0-5.0 kg | Cable travel: 2000 mm | Weight: 3.7 kg | GTIN: 4262403199569
8230040002 Load range: 4.5-7.0 kg | Cable travel: 2000 mm | Weight: 3.9 kg | GTIN: 4262403199576
8230040003 Load range: 6.0-10.0 kg | Cable travel: 2000 mm | Weight: 4.0 kg | GTIN: 4262403199583
8230040004 Load range: 9.0-14.0 kg | Cable travel: 2000 mm | Weight: 4.2 kg | GTIN: 4262403199590
8230040005 Load range: 13.0-17.0 kg | Cable travel: 2000 mm | Weight: 4.4 kg | GTIN: 4262403199606
8230040006 Load range: 16.0-21.0 kg | Cable travel: 2000 mm | Weight: 4.6 kg | GTIN: 4262403199613
Spring BalancersKromer
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Kromer 8230 ESD Balancer (3-21 kg, 2000 mm Travel)

Brand Kromer·Spring Balancers

Available part numbers (6)

8230040001, 8230040002, 8230040003, 8230040004, 8230040005, 8230040006

How to order

Send the Kromer part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
About the manufacturerKromer supplier profile →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
8230040001Load range: 3.0-5.0 kg | Cable travel: 2000 mm | Weight: 3.7 kg | GTIN: 4262403199569
8230040002Load range: 4.5-7.0 kg | Cable travel: 2000 mm | Weight: 3.9 kg | GTIN: 4262403199576
8230040003Load range: 6.0-10.0 kg | Cable travel: 2000 mm | Weight: 4.0 kg | GTIN: 4262403199583
8230040004Load range: 9.0-14.0 kg | Cable travel: 2000 mm | Weight: 4.2 kg | GTIN: 4262403199590
8230040005Load range: 13.0-17.0 kg | Cable travel: 2000 mm | Weight: 4.4 kg | GTIN: 4262403199606
8230040006Load range: 16.0-21.0 kg | Cable travel: 2000 mm | Weight: 4.6 kg | GTIN: 4262403199613
