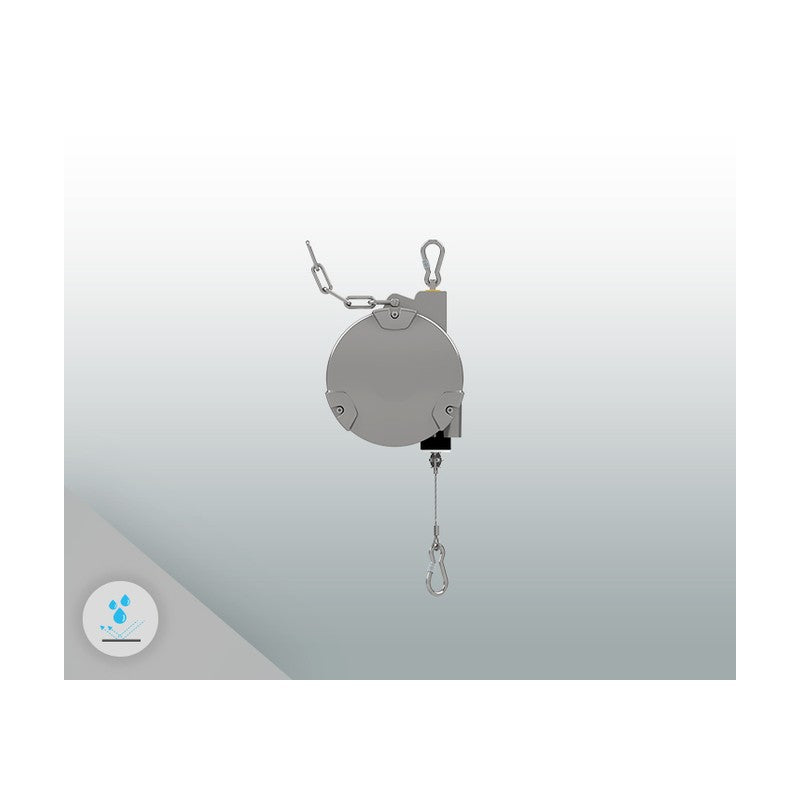

• Kromer 8235/8236 Rust-Free Balancer (15-55 kg, 2000 mm Travel)
1 1

Kromer 8235/8236 Rust-Free Balancer (15-55 kg, 2000 mm Travel)

Kromer 8235/8236 Rust-Free Balancer (15-55 kg, 2000 mm Travel)

Rust-free edition of the Kromer 8235/8236 aluminium tool balancer with AquaGuard and NSF H1 grease, for 15-55 kg loads.

Key features

  • Corrosion-resistant materials and flexible stainless steel cable
  • Food-grade NSF H1 lubricant
  • AquaGuard drain hole against waterlogging
  • Chill-cast aluminium housing and cable drum with embedded ball bearing
  • Available without (8235) or with (8236) ratchet lock
  • GS-certified, DIN 15112

Specifications

Load range 15.0-55.0 kg
Cable travel 2000 mm
Housing Chill-cast aluminium
Cable Flexible stainless steel
Lubricant NSF H1
Lock 8235 without / 8236 with ratchet lock
Certifications GS, DIN 15112
Edition Rust-free
Source Kromer website RF Type 8235 / Kromer General Catalog (EN 09-2026)
8235010001 Load range: 15.0-25.0 kg | Cable travel: 2000 mm | Ratchet lock: No | Weight: 8.00 kg | GTIN: 4262466530378
8236010001 Load range: 15.0-25.0 kg | Cable travel: 2000 mm | Ratchet lock: Yes | Weight: 8.50 kg | GTIN: 4262466530736
8235010002 Load range: 25.0-35.0 kg | Cable travel: 2000 mm | Ratchet lock: No | Weight: 9.10 kg | GTIN: 4262466530385
8236010002 Load range: 25.0-35.0 kg | Cable travel: 2000 mm | Ratchet lock: Yes | Weight: 9.60 kg | GTIN: 4262466530743
8235010003 Load range: 35.0-45.0 kg | Cable travel: 2000 mm | Ratchet lock: No | Weight: 9.70 kg | GTIN: 4262466530392
8236010003 Load range: 35.0-45.0 kg | Cable travel: 2000 mm | Ratchet lock: Yes | Weight: 10.20 kg | GTIN: 4262466530750
8235010004 Load range: 45.0-55.0 kg | Cable travel: 2000 mm | Ratchet lock: No | Weight: 9.90 kg | GTIN: 4262466530408
8236010004 Load range: 45.0-55.0 kg | Cable travel: 2000 mm | Ratchet lock: Yes | Weight: 10.40 kg | GTIN: 4262466530767
Spring BalancersKromer
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Kromer 8235/8236 Rust-Free Balancer (15-55 kg, 2000 mm Travel)

Brand Kromer·Spring Balancers

Available part numbers (8)

8235010001, 8236010001, 8235010002, 8236010002, 8235010003, 8236010003, 8235010004, 8236010004

How to order

Send the Kromer part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
About the manufacturerKromer supplier profile →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
8235010001Load range: 15.0-25.0 kg | Cable travel: 2000 mm | Ratchet lock: No | Weight: 8.00 kg | GTIN: 4262466530378
8236010001Load range: 15.0-25.0 kg | Cable travel: 2000 mm | Ratchet lock: Yes | Weight: 8.50 kg | GTIN: 4262466530736
8235010002Load range: 25.0-35.0 kg | Cable travel: 2000 mm | Ratchet lock: No | Weight: 9.10 kg | GTIN: 4262466530385
8236010002Load range: 25.0-35.0 kg | Cable travel: 2000 mm | Ratchet lock: Yes | Weight: 9.60 kg | GTIN: 4262466530743
8235010003Load range: 35.0-45.0 kg | Cable travel: 2000 mm | Ratchet lock: No | Weight: 9.70 kg | GTIN: 4262466530392
8236010003Load range: 35.0-45.0 kg | Cable travel: 2000 mm | Ratchet lock: Yes | Weight: 10.20 kg | GTIN: 4262466530750
8235010004Load range: 45.0-55.0 kg | Cable travel: 2000 mm | Ratchet lock: No | Weight: 9.90 kg | GTIN: 4262466530408
8236010004Load range: 45.0-55.0 kg | Cable travel: 2000 mm | Ratchet lock: Yes | Weight: 10.40 kg | GTIN: 4262466530767
