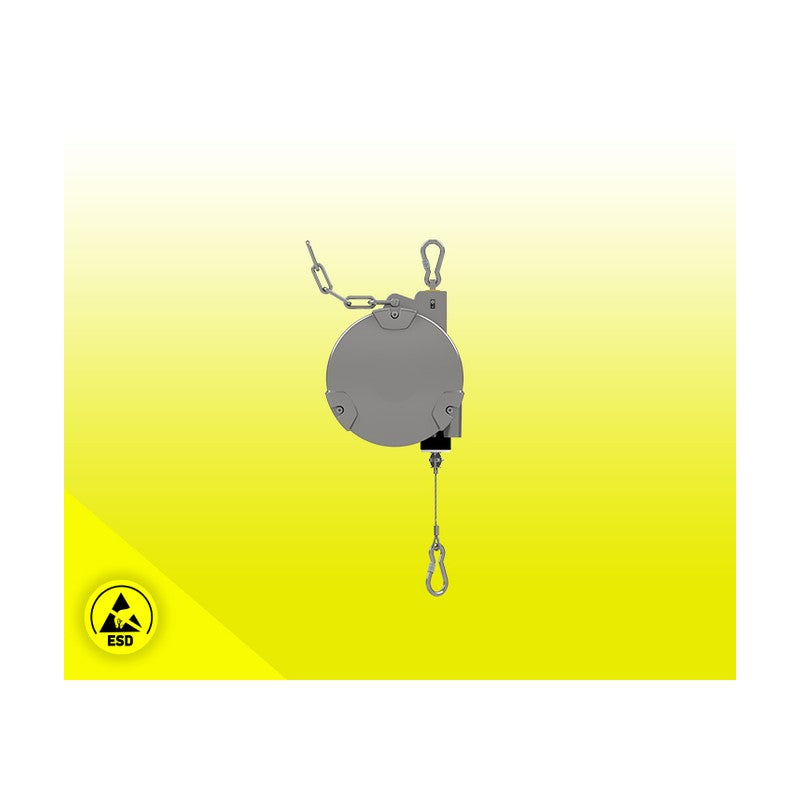

Kromer 8235 ESD Balancer (15-55 kg, 2000 mm Travel)

Kromer 8235 ESD Balancer (15-55 kg, 2000 mm Travel)

Kromer ESD-edition spring balancer type 8235 made from conductive materials with integrated ground connection, for electrostatic-sensitive electronics production.

Key features

  • ESD-protected product design according to DIN EN 61340-5-1
  • Conductive materials with integrated ground connection
  • Stainless steel support cable
  • Infinitely adjustable load setting and cable retraction limiter
  • Spring fracture safeguard; safety chain included
  • DIN 15112

Specifications

Load range 15.0-55.0 kg
Cable travel 2000 mm
ESD standard DIN EN 61340-5-1
Cable Stainless steel
Grounding Integrated ground connection
Certifications ESD, DIN 15112
Edition ESD
Source Kromer website ESD 8235 / Kromer General Catalog (EN 09-2026)
8235040001 Load range: 15.0-25.0 kg | Cable travel: 2000 mm | Weight: 8.0 kg | GTIN: 4262466530491
8235040002 Load range: 25.0-35.0 kg | Cable travel: 2000 mm | Weight: 9.1 kg | GTIN: 4262466530507
8235040003 Load range: 35.0-45.0 kg | Cable travel: 2000 mm | Weight: 9.7 kg | GTIN: 4262466530514
8235040004 Load range: 45.0-55.0 kg | Cable travel: 2000 mm | Weight: 9.9 kg | GTIN: 4262466530521
Spring BalancersKromer
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Kromer 8235 ESD Balancer (15-55 kg, 2000 mm Travel)

Brand Kromer·Spring Balancers

Available part numbers (4)

8235040001, 8235040002, 8235040003, 8235040004

How to order

Send the Kromer part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
About the manufacturerKromer supplier profile →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
8235040001Load range: 15.0-25.0 kg | Cable travel: 2000 mm | Weight: 8.0 kg | GTIN: 4262466530491
8235040002Load range: 25.0-35.0 kg | Cable travel: 2000 mm | Weight: 9.1 kg | GTIN: 4262466530507
8235040003Load range: 35.0-45.0 kg | Cable travel: 2000 mm | Weight: 9.7 kg | GTIN: 4262466530514
8235040004Load range: 45.0-55.0 kg | Cable travel: 2000 mm | Weight: 9.9 kg | GTIN: 4262466530521
