• Kromer 8241 Tool Balancer (12-100 kg, 2000 mm Travel)
1 1

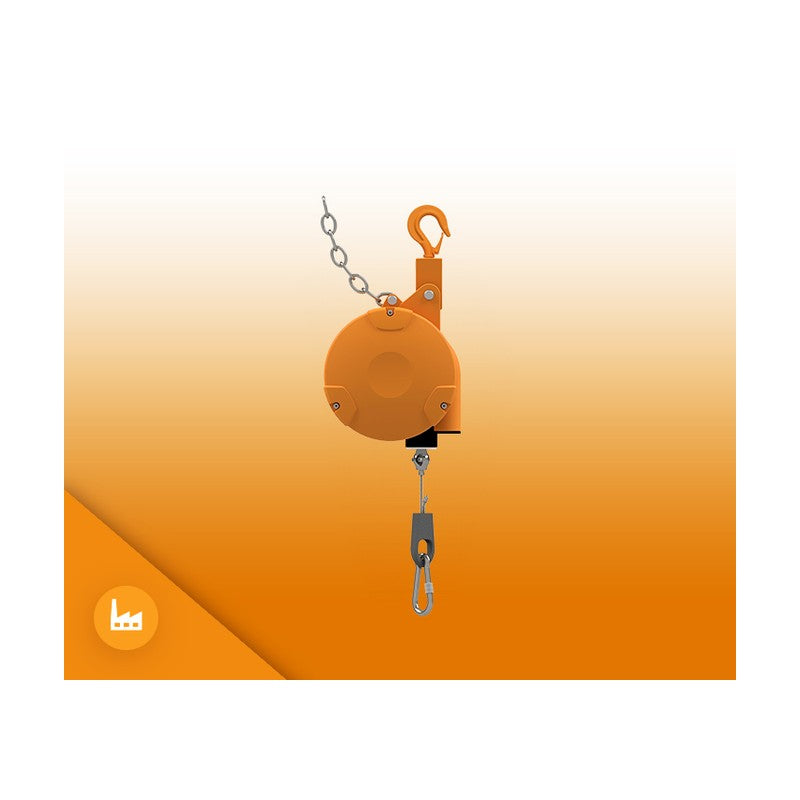

Kromer 8241 Tool Balancer (12-100 kg, 2000 mm Travel)

Kromer 8241 Tool Balancer (12-100 kg, 2000 mm Travel)

Heavy-duty Kromer tool balancer for 12-100 kg with encapsulated spring and freewheel protection, available with or without manual drum lock.

Key features

  • Pressure-cast aluminium housing and cable drum
  • Closed ball bearings on both sides
  • Encapsulated high-strength suspension spring
  • Freewheel protects against over-rotation when the spring is released
  • Cable overload protection via cable extension limit stop
  • GS-certified, DIN 15112

Specifications

Load range 12.0-100.0 kg
Cable travel 2000 mm
Housing Pressure-cast aluminium
Suspension Adjustable safety hook
Lock Without (…0001-0007) or with manual lock (…0081-0087)
Fall protection Safety expansion chain
Certifications GS, DIN 15112
Edition Industrial
Source Kromer website Type 8241 / Kromer General Catalog (EN 09-2026)
8241000001 Load range: 12.0-20.0 kg | Cable travel: 2000 mm | Manual lock: No | Weight: 15.3 kg | GTIN: 4262466530811
8241000081 Load range: 12.0-20.0 kg | Cable travel: 2000 mm | Manual lock: Yes | Weight: 15.5 kg | GTIN: 4262466531023
8241000002 Load range: 20.0-30.0 kg | Cable travel: 2000 mm | Manual lock: No | Weight: 15.9 kg | GTIN: 4262466530842
8241000082 Load range: 20.0-30.0 kg | Cable travel: 2000 mm | Manual lock: Yes | Weight: 16.1 kg | GTIN: 4262466531047
8241000003 Load range: 30.0-45.0 kg | Cable travel: 2000 mm | Manual lock: No | Weight: 16.9 kg | GTIN: 4262466530873
8241000083 Load range: 30.0-45.0 kg | Cable travel: 2000 mm | Manual lock: Yes | Weight: 17.1 kg | GTIN: 4262466531061
8241000004 Load range: 45.0-60.0 kg | Cable travel: 2000 mm | Manual lock: No | Weight: 17.7 kg | GTIN: 4262466530903
8241000084 Load range: 45.0-60.0 kg | Cable travel: 2000 mm | Manual lock: Yes | Weight: 17.9 kg | GTIN: 4262466531085
8241000005 Load range: 60.0-75.0 kg | Cable travel: 2000 mm | Manual lock: No | Weight: 19.3 kg | GTIN: 4262466530934
8241000085 Load range: 60.0-75.0 kg | Cable travel: 2000 mm | Manual lock: Yes | Weight: 19.5 kg | GTIN: 4262466531108
8241000006 Load range: 75.0-90.0 kg | Cable travel: 2000 mm | Manual lock: No | Weight: 19.7 kg | GTIN: 4262466530965
8241000086 Load range: 75.0-90.0 kg | Cable travel: 2000 mm | Manual lock: Yes | Weight: 19.9 kg | GTIN: 4262466531122
8241000007 Load range: 90.0-100.0 kg | Cable travel: 2000 mm | Manual lock: No | Weight: 20.6 kg | GTIN: 4262466530996
8241000087 Load range: 90.0-100.0 kg | Cable travel: 2000 mm | Manual lock: Yes | Weight: 20.8 kg | GTIN: 4262466531146
Spring BalancersKromer
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Kromer 8241 Tool Balancer (12-100 kg, 2000 mm Travel)

Brand Kromer·Spring Balancers

Available part numbers (14)

8241000001, 8241000081, 8241000002, 8241000082, 8241000003, 8241000083, 8241000004, 8241000084, 8241000005, 8241000085 + 4 more — see full table ↓

How to order

Send the Kromer part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
About the manufacturerKromer supplier profile →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
8241000001Load range: 12.0-20.0 kg | Cable travel: 2000 mm | Manual lock: No | Weight: 15.3 kg | GTIN: 4262466530811
8241000081Load range: 12.0-20.0 kg | Cable travel: 2000 mm | Manual lock: Yes | Weight: 15.5 kg | GTIN: 4262466531023
8241000002Load range: 20.0-30.0 kg | Cable travel: 2000 mm | Manual lock: No | Weight: 15.9 kg | GTIN: 4262466530842
8241000082Load range: 20.0-30.0 kg | Cable travel: 2000 mm | Manual lock: Yes | Weight: 16.1 kg | GTIN: 4262466531047
8241000003Load range: 30.0-45.0 kg | Cable travel: 2000 mm | Manual lock: No | Weight: 16.9 kg | GTIN: 4262466530873
8241000083Load range: 30.0-45.0 kg | Cable travel: 2000 mm | Manual lock: Yes | Weight: 17.1 kg | GTIN: 4262466531061
8241000004Load range: 45.0-60.0 kg | Cable travel: 2000 mm | Manual lock: No | Weight: 17.7 kg | GTIN: 4262466530903
8241000084Load range: 45.0-60.0 kg | Cable travel: 2000 mm | Manual lock: Yes | Weight: 17.9 kg | GTIN: 4262466531085
8241000005Load range: 60.0-75.0 kg | Cable travel: 2000 mm | Manual lock: No | Weight: 19.3 kg | GTIN: 4262466530934
8241000085Load range: 60.0-75.0 kg | Cable travel: 2000 mm | Manual lock: Yes | Weight: 19.5 kg | GTIN: 4262466531108
8241000006Load range: 75.0-90.0 kg | Cable travel: 2000 mm | Manual lock: No | Weight: 19.7 kg | GTIN: 4262466530965
8241000086Load range: 75.0-90.0 kg | Cable travel: 2000 mm | Manual lock: Yes | Weight: 19.9 kg | GTIN: 4262466531122
8241000007Load range: 90.0-100.0 kg | Cable travel: 2000 mm | Manual lock: No | Weight: 20.6 kg | GTIN: 4262466530996
8241000087Load range: 90.0-100.0 kg | Cable travel: 2000 mm | Manual lock: Yes | Weight: 20.8 kg | GTIN: 4262466531146
