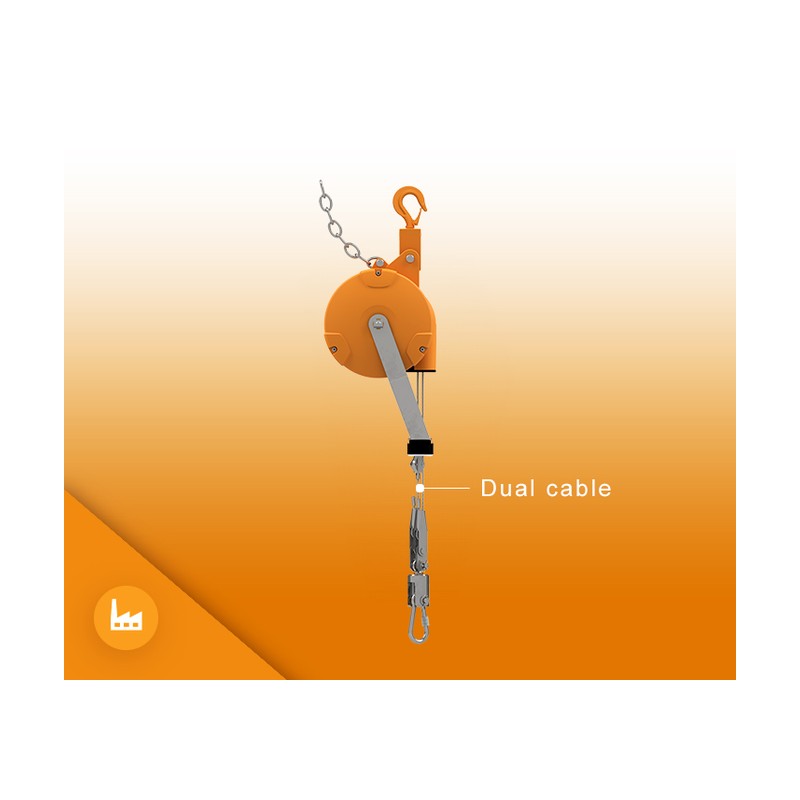

Kromer 8248 Dual-Cable Balancer (12-100 kg, 2000 mm Travel)

Kromer 8248 Dual-Cable Balancer (12-100 kg, 2000 mm Travel)

Kromer heavy-duty balancer with a dual-cable design that acts as fall protection if one cable breaks; 12-100 kg capacity.

Key features

  • Dual-cable design as fall protection in case one cable breaks
  • Pressure-cast aluminium housing; chill-cast aluminium cable drum
  • Closed ball bearings on both sides
  • Encapsulated special suspension spring with freewheel protection
  • Infinitely variable load setting via endless screw
  • GS-certified, DIN 15112

Specifications

Load range 12.0-100.0 kg
Cable travel 2000 mm
Cable Dual high-strength steel cables
Housing Pressure-cast aluminium
Fall protection Safety expansion chain
Certifications GS, DIN 15112
Edition Industrial
Source Kromer website Type 8248 / Kromer General Catalog (EN 09-2026)
8248000001 Load range: 12.0-20.0 kg | Cable travel: 2000 mm | Weight: 18.1 kg | GTIN: 4262466531832
8248000002 Load range: 20.0-30.0 kg | Cable travel: 2000 mm | Weight: 19.1 kg | GTIN: 4262466531856
8248000003 Load range: 30.0-45.0 kg | Cable travel: 2000 mm | Weight: 19.8 kg | GTIN: 4262466531870
8248000004 Load range: 45.0-60.0 kg | Cable travel: 2000 mm | Weight: 20.3 kg | GTIN: 4262466531894
8248000005 Load range: 60.0-75.0 kg | Cable travel: 2000 mm | Weight: 21.8 kg | GTIN: 4262466531917
8248000006 Load range: 75.0-90.0 kg | Cable travel: 2000 mm | Weight: 22.8 kg | GTIN: 4262466531931
8248000007 Load range: 90.0-100.0 kg | Cable travel: 2000 mm | Weight: 23.3 kg | GTIN: 4262466531955
Spring BalancersKromer
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Kromer 8248 Dual-Cable Balancer (12-100 kg, 2000 mm Travel)

Brand Kromer·Spring Balancers

Available part numbers (7)

8248000001, 8248000002, 8248000003, 8248000004, 8248000005, 8248000006, 8248000007

How to order

Send the Kromer part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
About the manufacturerKromer supplier profile →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
8248000001Load range: 12.0-20.0 kg | Cable travel: 2000 mm | Weight: 18.1 kg | GTIN: 4262466531832
8248000002Load range: 20.0-30.0 kg | Cable travel: 2000 mm | Weight: 19.1 kg | GTIN: 4262466531856
8248000003Load range: 30.0-45.0 kg | Cable travel: 2000 mm | Weight: 19.8 kg | GTIN: 4262466531870
8248000004Load range: 45.0-60.0 kg | Cable travel: 2000 mm | Weight: 20.3 kg | GTIN: 4262466531894
8248000005Load range: 60.0-75.0 kg | Cable travel: 2000 mm | Weight: 21.8 kg | GTIN: 4262466531917
8248000006Load range: 75.0-90.0 kg | Cable travel: 2000 mm | Weight: 22.8 kg | GTIN: 4262466531931
8248000007Load range: 90.0-100.0 kg | Cable travel: 2000 mm | Weight: 23.3 kg | GTIN: 4262466531955
