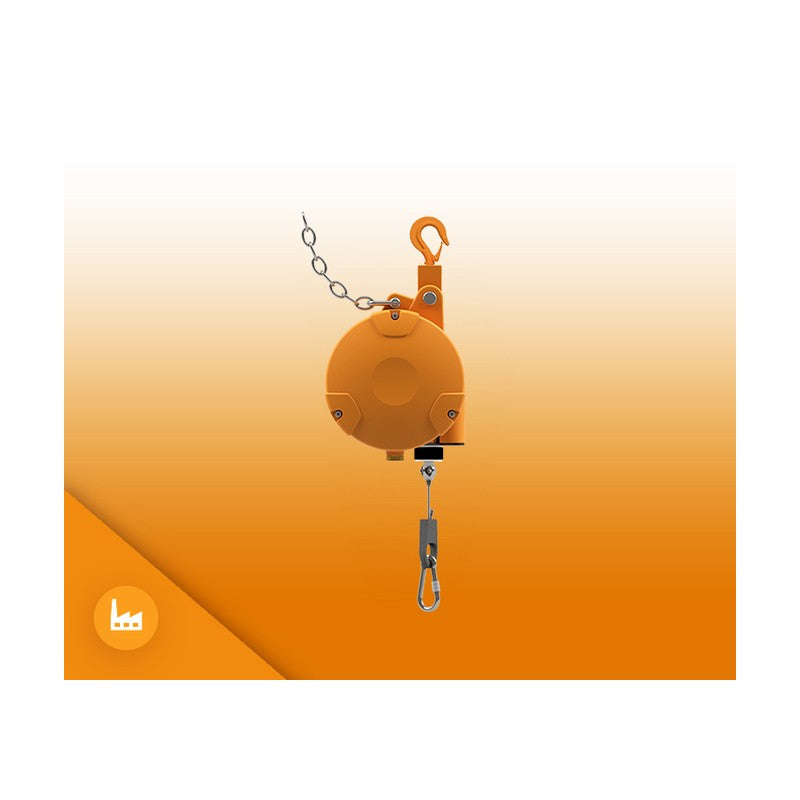

Kromer 8251 Spring Balancer (15-200 kg, 3000 mm Travel)

Kromer 8251 Spring Balancer (15-200 kg, 3000 mm Travel)

Kromer heavy-duty spring balancer for 15-200 kg with 3000 mm cable travel; double-spring edition from 100 kg.

Key features

  • Chill-cast aluminium housing and cable drum
  • Closed ball bearings on both sides
  • Encapsulated special suspension spring (double spring from 100 kg)
  • Freewheel protects against over-rotation
  • Cable overload protection via cable extension limit stop
  • GS-certified, DIN 15112

Specifications

Load range 15.0-200.0 kg
Cable travel 3000 mm
Housing Chill-cast aluminium
Spring Single; double spring from 100 kg
Fall protection Safety expansion chain
Certifications GS, DIN 15112
Edition Industrial
Source Kromer website Type 8251 / Kromer General Catalog (EN 09-2026)
8251000001 Load range: 15.0-25.0 kg | Cable travel: 3000 mm | Weight: 22.2 kg | GTIN: 4262466532044
8251000002 Load range: 25.0-35.0 kg | Cable travel: 3000 mm | Weight: 23.2 kg | GTIN: 4262466532068
8251000003 Load range: 35.0-50.0 kg | Cable travel: 3000 mm | Weight: 24.2 kg | GTIN: 4262466532082
8251000004 Load range: 50.0-65.0 kg | Cable travel: 3000 mm | Weight: 25.2 kg | GTIN: 4262466532105
8251000005 Load range: 65.0-80.0 kg | Cable travel: 3000 mm | Weight: 26.2 kg | GTIN: 4262466532129
8251000006 Load range: 80.0-90.0 kg | Cable travel: 3000 mm | Weight: 27.2 kg | GTIN: 4262466532143
8251000007 Load range: 90.0-100.0 kg | Cable travel: 3000 mm | Weight: 29.2 kg | GTIN: 4262466532167
8251000008 Load range: 100.0-115.0 kg | Cable travel: 3000 mm | Weight: 39.7 kg | GTIN: 4262466532181
8251000009 Load range: 115.0-130.0 kg | Cable travel: 3000 mm | Weight: 41.1 kg | GTIN: 4262466532204
8251000010 Load range: 130.0-140.0 kg | Cable travel: 3000 mm | Weight: 42.5 kg | GTIN: 4262466532228
8251000011 Load range: 140.0-150.0 kg | Cable travel: 3000 mm | Weight: 43.9 kg | GTIN: 4262466532242
8251000012 Load range: 150.0-170.0 kg | Cable travel: 3000 mm | Weight: 44.3 kg | GTIN: 4262466532266
8251000013 Load range: 170.0-180.0 kg | Cable travel: 3000 mm | Weight: 44.6 kg | GTIN: 4262466532280
8251000014 Load range: 180.0-190.0 kg | Cable travel: 3000 mm | Weight: 44.9 kg | GTIN: 4262466532303
8251000015 Load range: 190.0-200.0 kg | Cable travel: 3000 mm | Weight: 45.2 kg | GTIN: 4262466532327
Spring BalancersKromer
15 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Kromer 8251 Spring Balancer (15-200 kg, 3000 mm Travel)

Brand Kromer·Spring Balancers

Available part numbers (15)

8251000001, 8251000002, 8251000003, 8251000004, 8251000005, 8251000006, 8251000007, 8251000008, 8251000009, 8251000010 + 5 more — see full table ↓

How to order

Send the Kromer part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
About the manufacturerKromer supplier profile →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
8251000001Load range: 15.0-25.0 kg | Cable travel: 3000 mm | Weight: 22.2 kg | GTIN: 4262466532044
8251000002Load range: 25.0-35.0 kg | Cable travel: 3000 mm | Weight: 23.2 kg | GTIN: 4262466532068
8251000003Load range: 35.0-50.0 kg | Cable travel: 3000 mm | Weight: 24.2 kg | GTIN: 4262466532082
8251000004Load range: 50.0-65.0 kg | Cable travel: 3000 mm | Weight: 25.2 kg | GTIN: 4262466532105
8251000005Load range: 65.0-80.0 kg | Cable travel: 3000 mm | Weight: 26.2 kg | GTIN: 4262466532129
8251000006Load range: 80.0-90.0 kg | Cable travel: 3000 mm | Weight: 27.2 kg | GTIN: 4262466532143
8251000007Load range: 90.0-100.0 kg | Cable travel: 3000 mm | Weight: 29.2 kg | GTIN: 4262466532167
8251000008Load range: 100.0-115.0 kg | Cable travel: 3000 mm | Weight: 39.7 kg | GTIN: 4262466532181
8251000009Load range: 115.0-130.0 kg | Cable travel: 3000 mm | Weight: 41.1 kg | GTIN: 4262466532204
8251000010Load range: 130.0-140.0 kg | Cable travel: 3000 mm | Weight: 42.5 kg | GTIN: 4262466532228
8251000011Load range: 140.0-150.0 kg | Cable travel: 3000 mm | Weight: 43.9 kg | GTIN: 4262466532242
8251000012Load range: 150.0-170.0 kg | Cable travel: 3000 mm | Weight: 44.3 kg | GTIN: 4262466532266
8251000013Load range: 170.0-180.0 kg | Cable travel: 3000 mm | Weight: 44.6 kg | GTIN: 4262466532280
8251000014Load range: 180.0-190.0 kg | Cable travel: 3000 mm | Weight: 44.9 kg | GTIN: 4262466532303
8251000015Load range: 190.0-200.0 kg | Cable travel: 3000 mm | Weight: 45.2 kg | GTIN: 4262466532327
