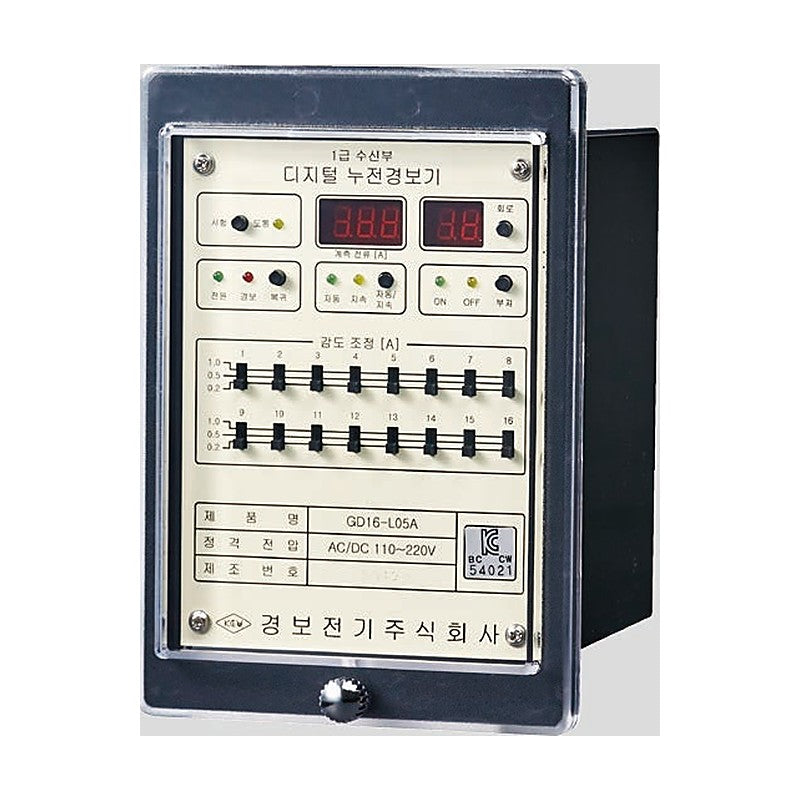

Kyongbo Electric Digital Multi-Circuit Earth Leakage Detector and Relay GD-L03 / GD-L05

Kyongbo Electric Digital Multi-Circuit Earth Leakage Detector and Relay GD-L03 / GD-L05

This fully digital arithmetic earth leakage detector detects leakage current on lines up to 600 V through ZCTs and raises an alarm, with relay (R type) versions providing trip outputs.

Key features

  • 6, 8, 10, 12 and 16 circuit versions
  • 7-segment digital display of measured value and faulted line
  • Individual operating current and time setting per circuit
  • Harmonic filtering, operates on fundamental wave
  • Applied standard KOFEIS 0308

Specifications

Structure Flush mounted, non-drawout
Rated Power Supply AC/DC 110-220 V (free voltage), 20 VA
Rated Frequency 60 Hz (50 Hz option)
Rated Operating Current 0.2 - 0.5 - 1.0 A
Line Voltage AC 600 V max
Signal Contacts (Ta, Tc) 10 A at AC 120 V, 10 A at DC 24 V
Panel Cutout 122 x 164 mm
Dimensions 138 x 200 mm front
Weight approx. 1.5 kg
GD8-L03A Circuits: 8 | Type: ELD (alarm) | Communication: RS-485 (Modbus)
GD16-L03A Circuits: 16 | Type: ELD (alarm) | Communication: RS-485 (Modbus)
GD8-L03R Circuits: 8 | Type: ELR (with trip outputs) | Trip Output: 1a x circuits, 5 A at AC 250 V / 5 A at DC 30 V | Communication: RS-485 (Modbus)
GD16-L03R Circuits: 16 | Type: ELR (with trip outputs) | Trip Output: 1a x circuits, 5 A at AC 250 V / 5 A at DC 30 V | Communication: RS-485 (Modbus)
GD6-L05A Circuits: 6 | Type: ELD (alarm)
GD8-L05A Circuits: 8 | Type: ELD (alarm)
GD10-L05A Circuits: 10 | Type: ELD (alarm)
GD12-L05A Circuits: 12 | Type: ELD (alarm)
GD16-L05A Circuits: 16 | Type: ELD (alarm)
GD6-L05R Circuits: 6 | Type: ELR (with trip outputs) | Trip Output: 1a x circuits, 5 A at AC 250 V / 5 A at DC 30 V
GD8-L05R Circuits: 8 | Type: ELR (with trip outputs) | Trip Output: 1a x circuits, 5 A at AC 250 V / 5 A at DC 30 V
GD10-L05R Circuits: 10 | Type: ELR (with trip outputs) | Trip Output: 1a x circuits, 5 A at AC 250 V / 5 A at DC 30 V
GD12-L05R Circuits: 12 | Type: ELR (with trip outputs) | Trip Output: 1a x circuits, 5 A at AC 250 V / 5 A at DC 30 V
GD16-L05R Circuits: 16 | Type: ELR (with trip outputs) | Trip Output: 1a x circuits, 5 A at AC 250 V / 5 A at DC 30 V
