• Qlight QMPS Panel Mounted Multi-Functional Speaker, Max. 95 dB
1 1

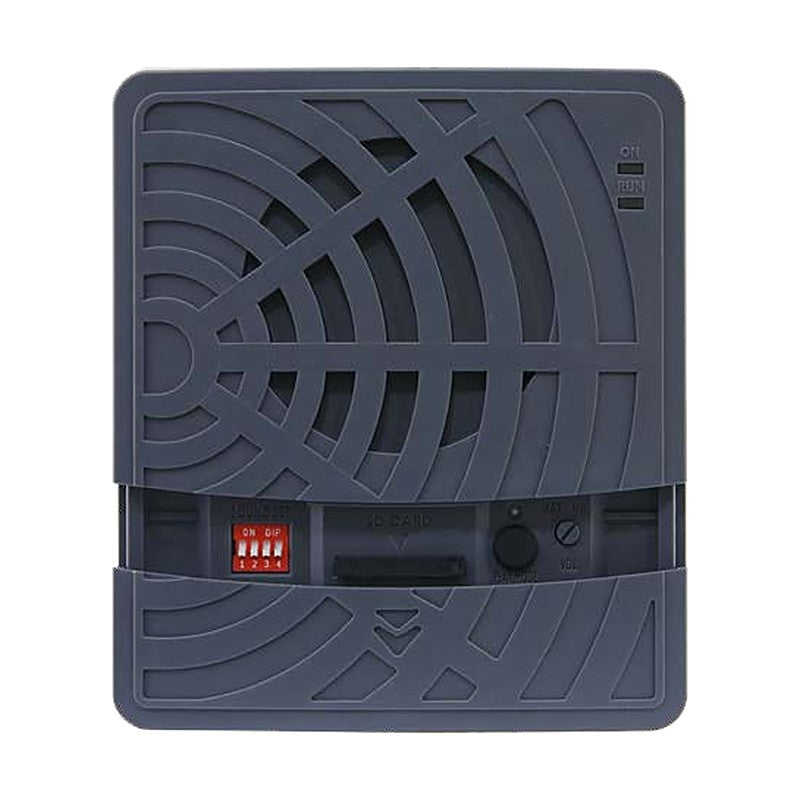

Qlight QMPS Panel Mounted Multi-Functional Speaker, Max. 95 dB

Qlight QMPS Panel Mounted Multi-Functional Speaker, Max. 95 dB

Panel-mounted multi-functional speaker with 30 built-in sounds; the QMPS version also plays user MP3 files from an SD card.

Key features

  • 30 pre-recorded sounds with bit (5 ch) and binary (30 ch) input
  • QMPS supports SD card MP3 playback and play modes
  • QMPS-N standard unit with built-in sounds only
  • Volume and sound selection switches inside the unit

Specifications

Protection rating IP54
Ambient temperature -25 to +50 °C
Materials Housing ABS, cover ABS
Sound volume Built-in max. 95 dB at 1 m
Voltage DC12V-24V, AC110V-220V
Weight 0.35kg DC, 0.53kg AC
Compliance RoHS
Qlight QMPS Panel Mounted Multi-Functional Speaker, Max. 95 dB - reference 2
QMPS Sound: built-in + SD card MP3 (max. 90dB) | Current: DC max. 570mA, AC max. 115mA | Certification: CE, UL (DC12V-24V)
QMPS-N Sound: built-in only | Current: DC max. 380mA, AC max. 130mA | Certification: CE (DC12V-24V)
Electronic BuzzersQlight
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight QMPS Panel Mounted Multi-Functional Speaker, Max. 95 dB

Brand Qlight·Electronic Buzzers

Available part numbers (2)

QMPS, QMPS-N

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Qlight QMPS Panel Mounted Multi-Functional Speaker, Max. 95 dB - reference 2
0 selected
RFQ List (0)
Product codeSpec
QMPSSound: built-in + SD card MP3 (max. 90dB) | Current: DC max. 570mA, AC max. 115mA | Certification: CE, UL (DC12V-24V)
QMPS-NSound: built-in only | Current: DC max. 380mA, AC max. 130mA | Certification: CE (DC12V-24V)
