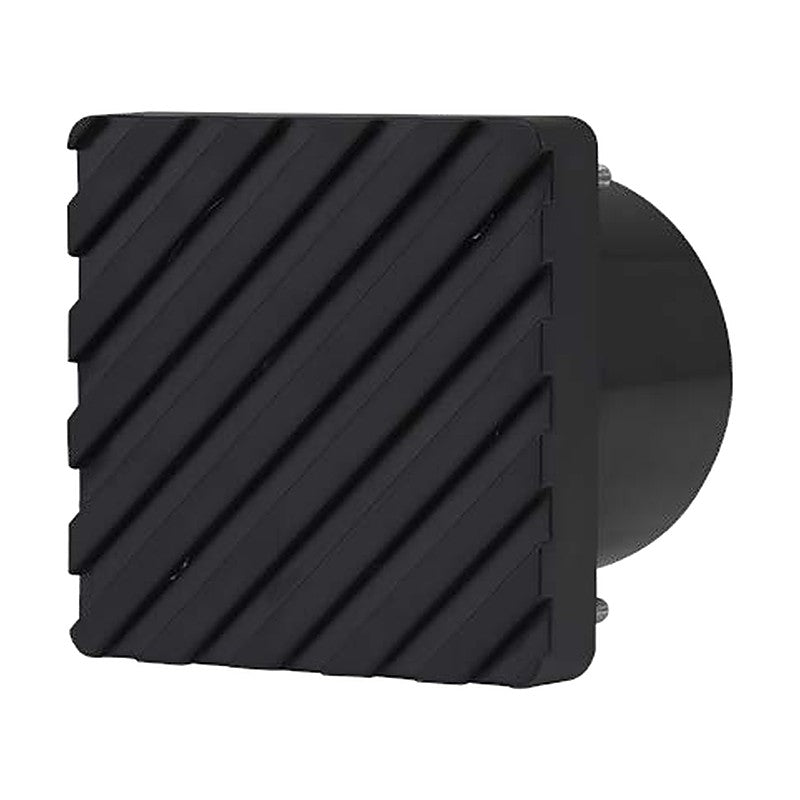

Qlight CPK-RS485 Panel Mounted MP3 Speaker for RS485 Communication
Qlight CPK-RS485 Panel Mounted MP3 Speaker for RS485 Communication
Panel-mounted MP3 signal speaker controlled over RS485, playing up to 255 stored sound files.
Key features
- Plays up to 255 MP3 files selected over RS485
- Up to 255 frame IDs set by software manager
- MP3 files loaded via USB Type-C, 128 MB storage
- Speeds 9600, 19200, 38400, 115200 bps
Specifications
| Protection rating | IP65 |
|---|---|
| Ambient temperature | -25 to +50 °C |
| Material | ABS |
| Sound volume | Max. 90 dB at 1 m |
| Voltage | DC12V-24V (free voltage 10-36V) |
| Current | Max. 600mA |
| Weight | 0.21kg |
| Panel size | 80 x 80 mm |
| Compliance | RoHS |
| CPK-RS485 | Interface: RS485 | Sounds: MP3, 255 files |
Electronic BuzzersQlight
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
Qlight CPK-RS485 Panel Mounted MP3 Speaker for RS485 Communication
Available part numbers (1)
CPK-RS485
How to order
Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
Qlight
Electronic Buzzers
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| CPK-RS485 | Interface: RS485 | Sounds: MP3, 255 files |
