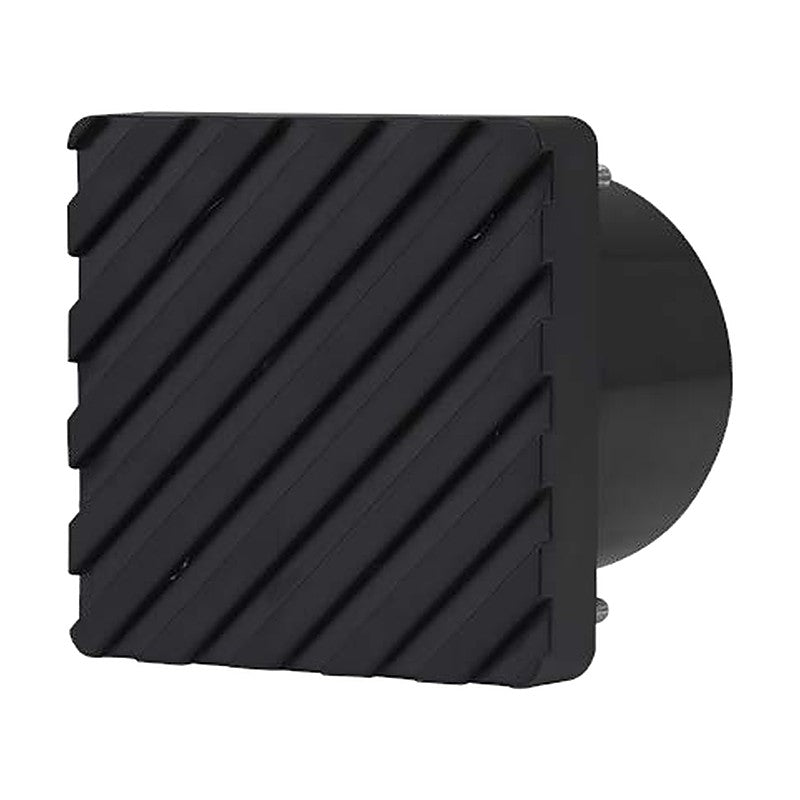

Qlight CPK-CAN Panel Mounted MP3 Speaker for CAN Communication

Panel-mounted MP3 signal speaker controlled over industrial CAN bus, playing up to 255 stored sound files.

Key features

Plays up to 255 MP3 files selected over CAN communication
Up to 255 frame IDs set by software manager
MP3 files loaded via USB Type-C, 128 MB storage
Supports CAN 2.0A standard and 2.0B extended format
Communication speeds 125 kbps, 250 kbps, 500 kbps, 1 Mbps

Specifications

Protection rating	IP65
Ambient temperature	-25 to +50 °C
Material	ABS
Sound volume	Max. 90 dB at 1 m
Voltage	DC12V-24V (free voltage 10-36V)
Current	Max. 600mA
Weight	0.21kg
Panel size	80 x 80 mm
Compliance	RoHS

CPK-CAN

Interface: CAN 2.0A / 2.0B (ordering option) | Sounds: MP3, 255 files

Electronic BuzzersQlight

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight CPK-CAN Panel Mounted MP3 Speaker for CAN Communication

Brand Qlight·Electronic Buzzers

Available part numbers (1)

CPK-CAN

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
