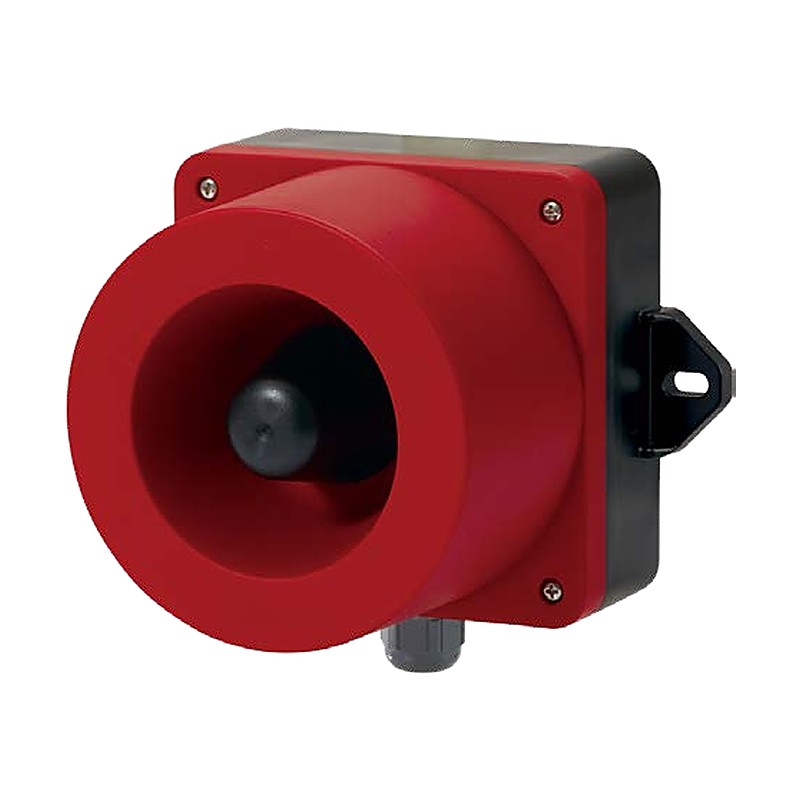

Qlight QWH35B Wall Mounted Electronic Sounder with High Volume Buzzer

IP66 wall-mounted electronic sounder with a high-volume buzzer of up to 115 dB, with or without terminal box.

Key features

High-volume buzzer output up to 115 dB at 1 m
QWH35BT version with terminal box
IP66 sealing for outdoor installation

Specifications

Protection rating	IP66
Ambient temperature	-30 to +50 °C
Buzzer volume	Max. 115 dB at 1 m
Voltage	DC12V (385mA), DC24V (365mA), AC110V-220V (max. 145mA)
Cable entry	M20
Certification	UL listed DC12V, DC24V
Compliance	RoHS

Qlight QWH35B Wall Mounted Electronic Sounder with High Volume Buzzer - reference 2

QWH35B		Housing: standard \| Weight: 0.70kg DC, 0.81kg AC
QWH35BT		Housing: with terminal box \| Weight: 0.72kg DC, 0.81kg AC

Electronic BuzzersQlight

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight QWH35B Wall Mounted Electronic Sounder with High Volume Buzzer

Brand Qlight·Electronic Buzzers

Available part numbers (2)

QWH35B, QWH35BT
