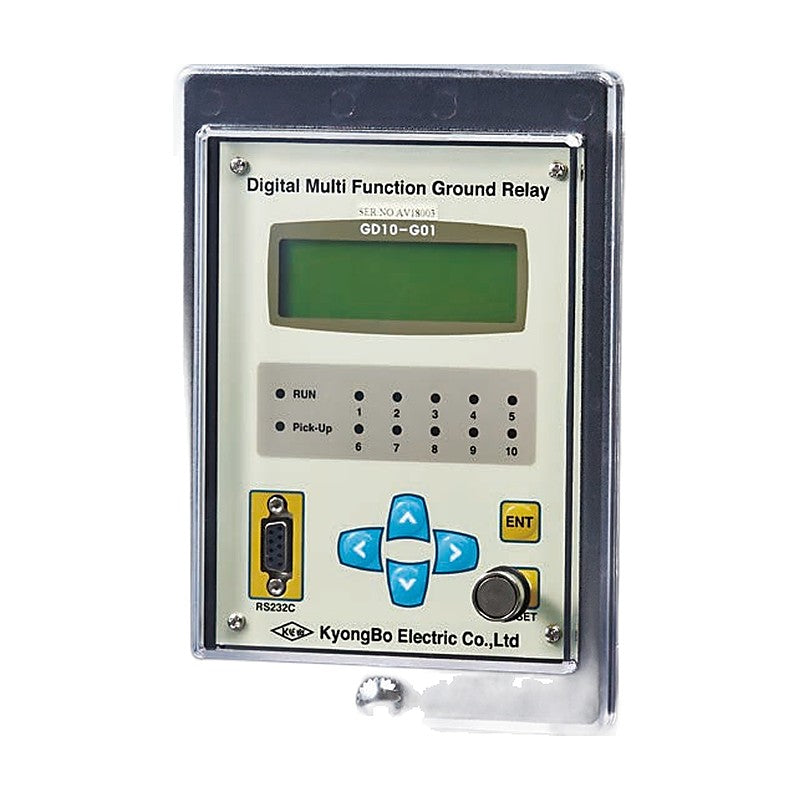

Kyongbo Electric Digital Multi Function Ground Relay GD10-G01 (GFR)

Kyongbo Electric Digital Multi Function Ground Relay GD10-G01 (GFR)

GD10-G01 is a 10-circuit digital ground fault relay for lines up to 600 V that detects ground fault current through ZCTs to trip or alarm, with fault recording.

Key features

  • Character LCD display of settings and measurements
  • Fault record of trip line, current and operating time
  • 60/50 Hz selectable
  • Combines with aux relay board GRB-10 for MCCB/MC coil control
  • Applied standard KS C 8328

Specifications

Circuits GR x 10
Auxiliary Power AC/DC 110-220 V (free voltage)
GD10-G01 Operating Current: 0.1-10 A (0.1 A step) | Operating Time: 0.1-30 s definite (0.05 s step) | Signal Output: Ta, Tc 20 A at AC 250 V | Trip Output: 1a-10a, 5 A at AC 250 V | Metering: 0-12 A per circuit | Communication: RS-232C 9,600 bps | CT Burden: 0.5 VA/phase max | Aux Power Burden: 30 W max | Panel Cutout: 122 x 164 mm | Weight: approx. 1.5 kg
Earth Leakage RelaysKyongbo Electric
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Kyongbo Electric Digital Multi Function Ground Relay GD10-G01 (GFR)

Brand Kyongbo Electric·Earth Leakage Relays

Available part numbers (1)

GD10-G01

How to order

Send the Kyongbo Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GD10-G01Operating Current: 0.1-10 A (0.1 A step) | Operating Time: 0.1-30 s definite (0.05 s step) | Signal Output: Ta, Tc 20 A at AC 250 V | Trip Output: 1a-10a, 5 A at AC 250 V | Metering: 0-12 A per circuit | Communication: RS-232C 9,600 bps | CT Burden: 0.5 VA/phase max | Aux Power Burden: 30 W max | Panel Cutout: 122 x 164 mm | Weight: approx. 1.5 kg
